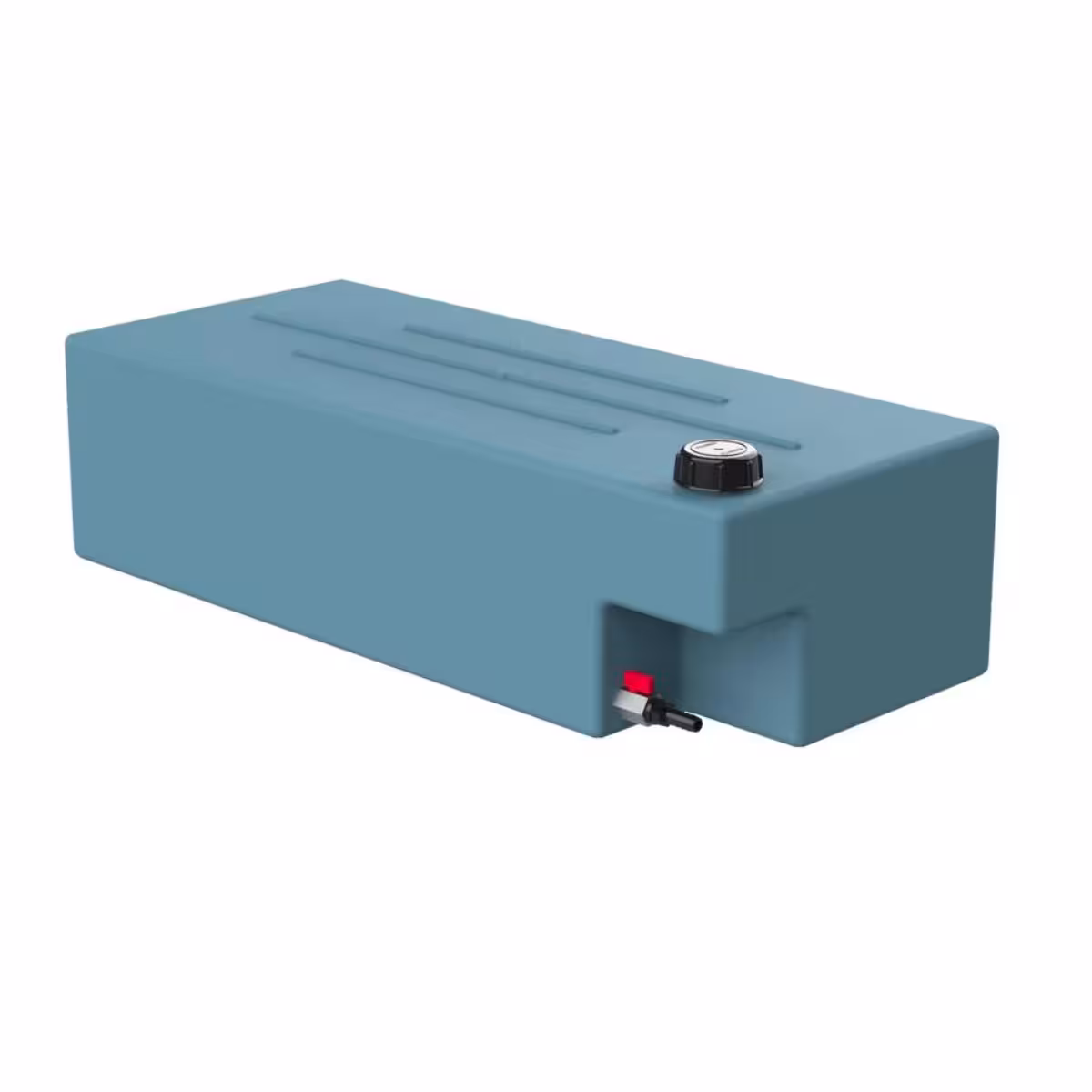

Pioneer 60L Roof Tank 840 x 360 x 220mm Blue Grey

Compact Overhead Water Storage for Low-Pressure Systems

The Pioneer 60L roof tank is a rectangular overhead storage unit for gravity-fed water systems in homes, shops and small offices. It measures 840 mm long, 360 mm wide and 220 mm high, a low-profile shape that fits under roof overhangs and between rafters. The blue-grey polyethylene body resists UV degradation and holds its colour under direct sun.

The tank uses a single-piece rotational moulding with no seams at the base or corners. Walls are thick enough to hold 60 litres without bulging, and the flat bottom sits level on timber or concrete platforms. A 1/2-inch outlet port sits at the lowest point for full drainage, while the top opening accepts a standard 450 mm lid for cleaning access.

Installation suits pitched roofs, flat slabs and elevated steel frames. The tank ships with a pre-drilled inlet and overflow position, so plumbers can connect 20 mm or 25 mm pipework without cutting the body. The food-grade polyethylene compound meets potable water contact standards, and the smooth interior limits biofilm formation between cleanings.

Key Features

• 60-Litre Rectangular Body
  The low-profile shape fits tight roof spaces while holding enough water for daily household use.

• UV-Stabilised Polyethylene
  The blue-grey compound resists sunlight degradation and keeps the stored water cooler than dark tanks.

• Seamless Rotational Moulding

  • No welded joints at the base or corners
  • Uniform wall thickness for pressure resistance
  • Flat bottom sits level on timber or concrete

• Pre-Positioned Ports
  The inlet and overflow points accept 20 mm or 25 mm pipe without cutting the tank body.

• Food-Grade Interior
  The smooth polyethylene surface meets potable water contact standards and limits biofilm growth.

Specifications

What’s in the Box

• 60-litre roof tank body

• 450 mm lid

• Outlet fitting

Why Choose the Pioneer 60L

• The 220 mm height clears low roof overhangs where taller cylinders will not fit.

• UV-stabilised walls keep the tank from becoming brittle after years of sun exposure.

• The seamless moulding removes weak points that split under vibration or thermal cycling.

• Pre-drilled ports save installation time and reduce the risk of cracking the body on site.

• Food-grade polyethylene suits drinking water storage without a separate liner.

• The flat base distributes weight evenly across timber battens or concrete slabs.
