Altea 2GR Coffee Machine 14L Automatic 230V Black Tall Groups

Two-Group Commercial Espresso Platform

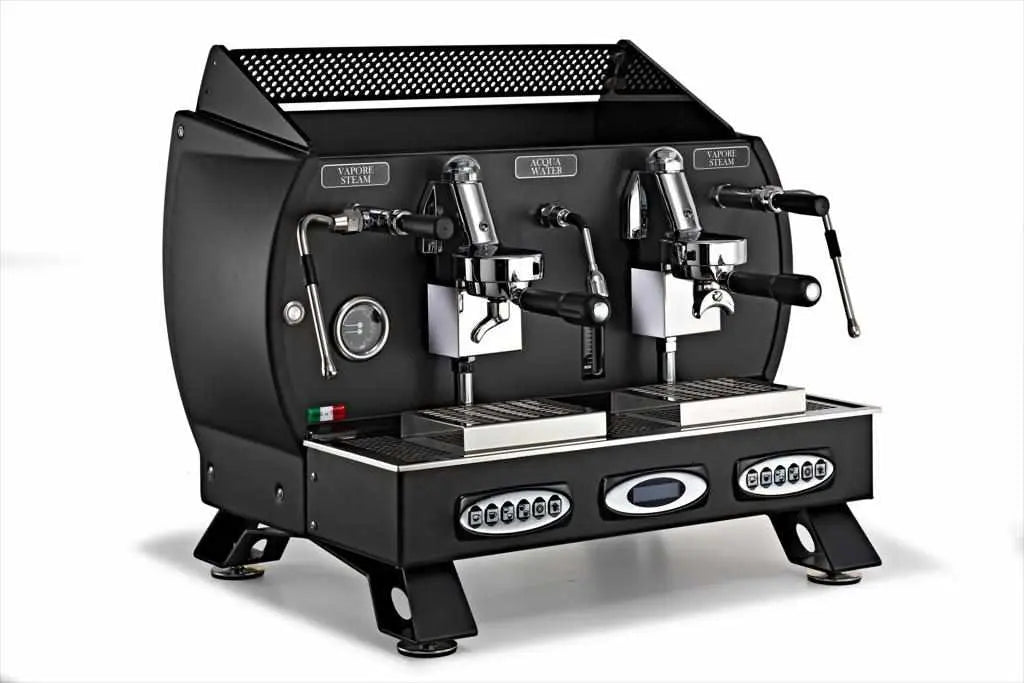

The Altea 2GR coffee machine is a two-group automatic espresso unit built for cafe service. A 14-litre copper boiler and a 4.5 kW heating element hold recovery under load. Tall brewing groups clear large cups and travel mugs. The black powder-coated chassis sits on adjustable feet for bench levelling.

Each group carries a solenoid valve and a programmable dosing keypad with four buttons. A rotary motor pump draws from the mains supply and holds stable brew pressure. Pre-infusion wets the puck before full extraction. Electronic water level control refills the boiler automatically, and a sight glass shows the level.

The unit runs on 230 V single-phase power and needs a dedicated circuit for the 4.5 kW element. Cool-touch steam wands limit burn risk during milk service. Auto-clean cycles flush the groups at the end of a shift. Plumb the machine to a potable supply with a softener and a drain line.

Key Features

• 14-Litre Boiler
  The copper boiler and 4.5 kW element sustain back-to-back shots during peak service.

• Tall Brewing Groups
  Raised group heads accept tall cups, latte glasses and takeaway tumblers without tilting.

• Programmable Dosing

  • Four buttons per group store shot volumes
  • Pre-infusion stage wets the puck before extraction
  • Rotary motor pump holds steady brew pressure

• Dual Cool-Touch Steam Wands
  Insulated wands let baristas texture milk without gripping hot stainless.

• Automatic Boiler Management
  Electronic level control refills the boiler, and a sight glass gives a visual check.

• Auto-Clean Cycle
  A timed backflush routine clears group valves and screens at shift end.

Installation and Service Notes

Allow 700 x 540 mm of bench space and 600 mm of height clearance for cup loading. Fit a water softener ahead of the inlet to limit scale in the boiler and groups. Route the drain with a fall and keep the machine level on its adjustable feet.

Backflush the groups daily and clean the shower screens weekly. Descale on the schedule set by local water hardness. Replace group gaskets when portafilter lock becomes loose. Confirm the supply circuit rating before commissioning, because the heater draws the full load at start-up.

Specifications

What’s in the Box

• A301W-230NERO two-group espresso machine

• Portafilters and filter baskets

• Steam wand assemblies

• Water inlet and drain fittings

• Commissioning and cleaning guide

Why Choose This Espresso Unit

• The 14-litre boiler keeps temperature stable through consecutive orders.

• Tall groups accept takeaway cups without removing the drip tray.

• Programmable doses give repeatable shot volumes across baristas.

• Cool-touch wands reduce handling risk during milk texturing.

• Automatic refill and clean routines cut manual intervention per shift.
