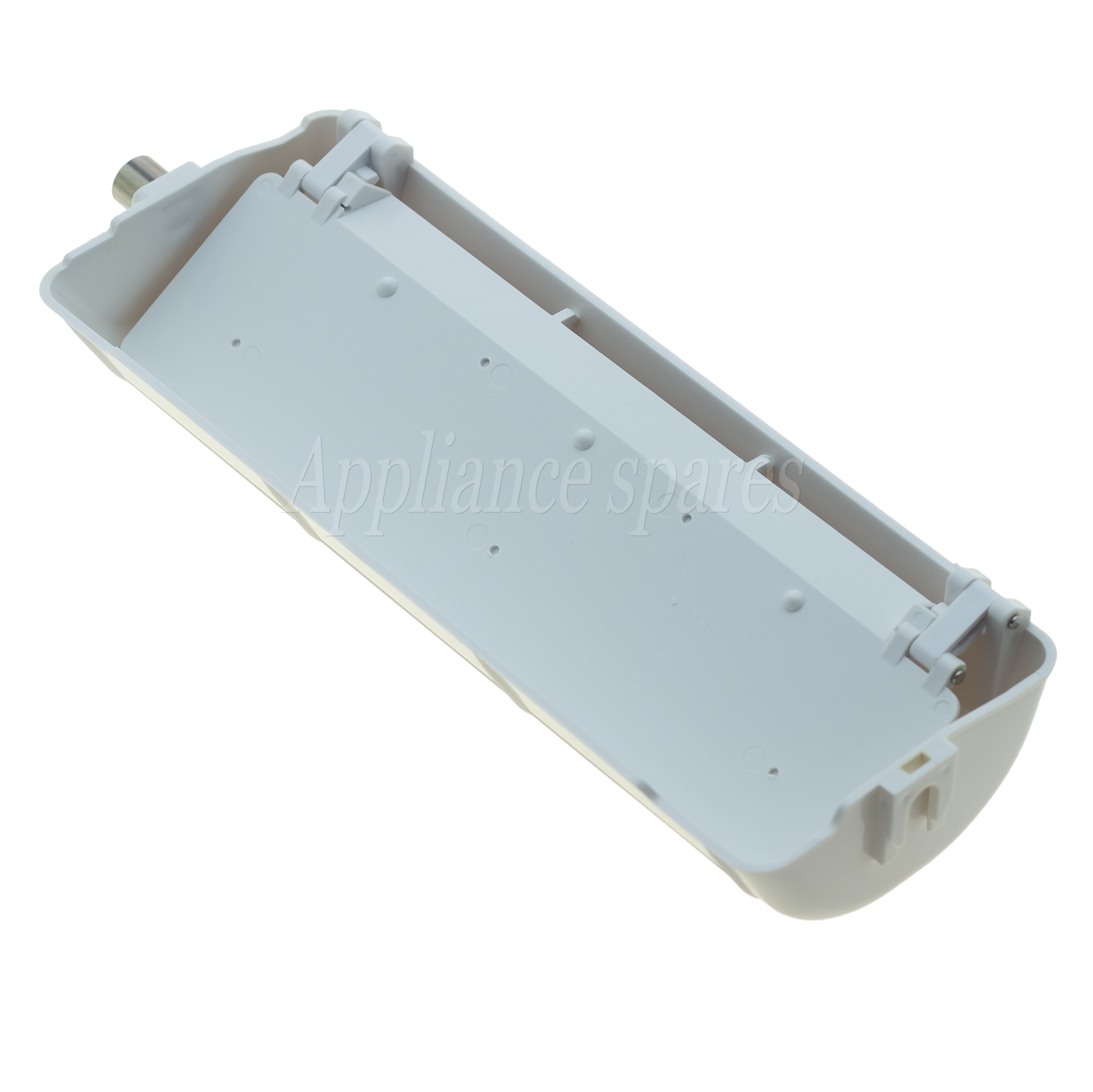

SnoMaster ZBC-15 Water Box Assembly Replacement Part

Ice Maker Water Circulation Module

The SnoMaster ZBC-15 water box assembly supplies the water circuit for the ZBC-15 counter-top bullet ice maker. This replacement component restores water delivery to the evaporator during each freeze cycle. It fits the 15 kg/24 h stainless-steel chassis.

The ZBC-15 platform produces up to 15 kg of bullet ice per 24 hours and stores 2 kg in a removable basket. It runs on 230 V/50 Hz with a rated current of 1.0 A and 110 W total input power. Three bullet sizes (25 mm, 28 mm and 30 mm) cover different drink service needs.

Water box faults produce linked Ice Full and Water Low indications on this model. A failed circulation motor stops water flow over the evaporator. Replace the complete assembly before restoring power, then recalibrate the ice pusher and confirm the reservoir level.

Use filtered mineralised water during recommissioning. Reverse osmosis water can trigger false low-water readings because the sensor relies on mineral conductivity. Clean the level sensor screws with fine grit paper if the Water Low indicator stays on after refilling. Drain and clean the reservoir once or twice a month to limit scale build-up in the circuit.

Key Features

• Model-Specific Fit
  The assembly matches the ZBC-15 counter-top chassis and reservoir layout without adapter parts.

• Water Circuit Restoration
  The part returns flow from the reservoir to the evaporator on every freeze cycle.

• Fault Symptom Target
  It addresses flickering Ice Full and Water Low lights that trace to a faulty circulation motor.

• Assembly-Level Service
  Technicians swap the complete module instead of rebuilding the motor and housing on site.

• System Compatibility
  The module supports the 15 kg/24 h output, 2 kg storage volume and three bullet sizes of the platform.

• Water Quality Guidance
  Mineralised filtered water supports reliable low-water sensing; reverse osmosis water may need a pinch of salt.

• Maintenance Interval
  Drain and clean the reservoir once or twice a month to control scale in the water path.

Specifications

What’s in the Box

• 1 x ZBC-15 water box assembly

Why Choose ZBC-15

• Model-specific compatibility removes guesswork during diagnosis and repair.

• Assembly-level service targets the water circuit directly.

• Restores the freeze cycle when water delivery fails.

• Matches the electrical and ice-output characteristics of the platform.

• Keeps the 15 kg daily output and three bullet sizes intact after repair.
