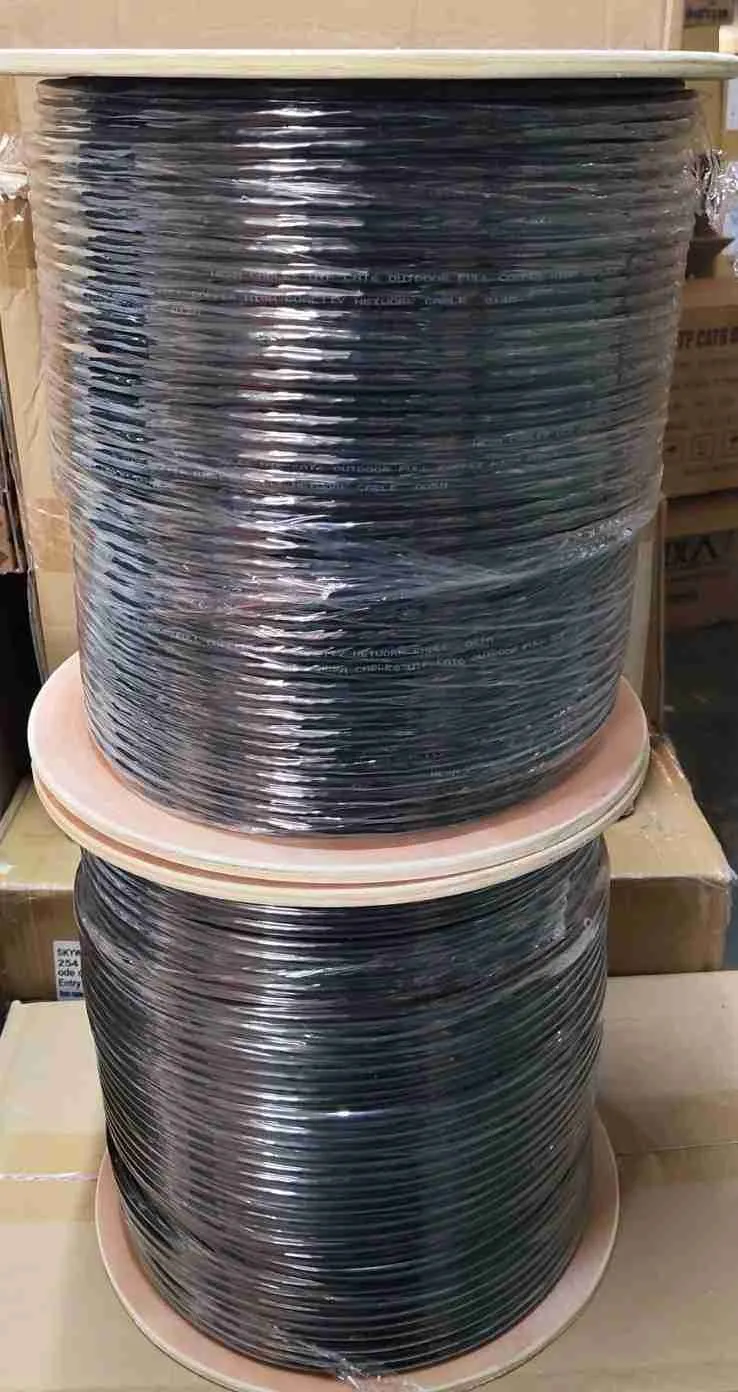

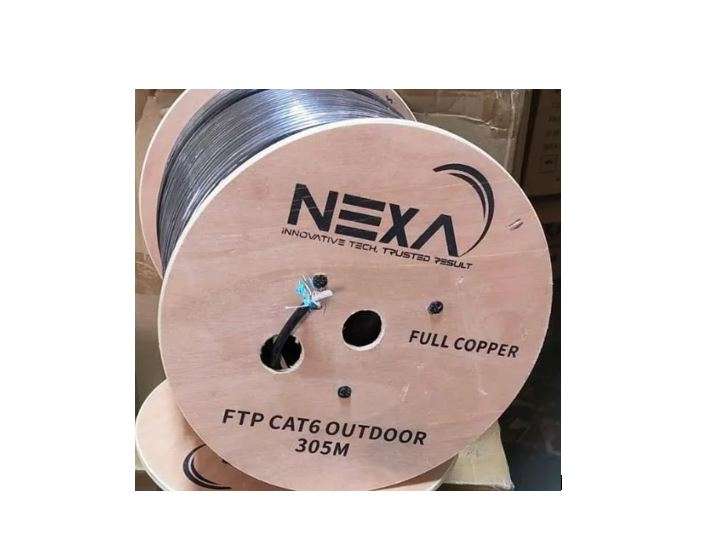

Nexa F/UTP CAT6 Outdoor 305M Full Copper Cable
WhatsApp for availability
Nexa F/UTP CAT6 Outdoor 305M Full Copper Cable
| Feature | Specification |
|---|---|
| Category | CAT6 F/UTP |
| Conductor | Solid Bare Copper |
| Gauge | 23 AWG |
| Jacket | Outdoor UV-Rated PE |
| Length | 305 Meters |
Shipping & Delivery
Fast delivery
Your order will be deliver to the specified address
15 - 45 minutes
From KES 300
Warranty 1 year
Free 30-Day returns
Description
Nexa CAT6 F/UTP Outdoor Cable
The Nexa CAT6 Outdoor Cable facilitates robust network infrastructure for external deployments. This bulk medium supports Gigabit Ethernet and higher frequency applications up to 250 MHz. The F/UTP architecture utilizes an overall aluminum foil screen to block external electromagnetic noise. This shielding protects data signals from interference generated by nearby power lines or radio equipment. Network engineers prioritize 23AWG solid bare copper conductors for high-performance installations. Unlike copper-clad alternatives, full copper maintains lower DC resistance. It minimizes heat buildup during Power over Ethernet (PoE) delivery.
Key Features
F/UTP Shielding System
An overall aluminum foil wrap provides protection against electromagnetic interference and radio frequency interference.Weatherproof Construction
- High-density polyethylene (PE) outer jacket
- UV-resistant material for direct sunlight exposure
- Moisture-resistant barrier for external conduit use
Solid Copper Conductors
The 23AWG bare copper wires ensure maximum electrical conductivity and support for high-wattage PoE devices.Internal Crosstalk Mitigation
A polyethylene cross-separator maintains pair geometry to reduce Near-End Crosstalk (NEXT) and improve signal-to-noise ratios.
The outer jacket consists of high-density polyethylene. This material resists ultraviolet radiation and prevents degradation from environmental exposure. It also provides a moisture barrier against humidity and rain. A central spline separates the four twisted pairs. This internal structure maintains the physical cable geometry during installation. Each 305-meter roll comes in a sturdy pull box or wooden drum for efficient deployment. Sequential meter markings on the jacket assist technicians in accurate length measurements. The inclusion of a tinned copper drain wire simplifies the grounding process for the foil shield. Consequently, installers can ensure a continuous path to ground to dissipate static.
This cabling solution meets ANSI/TIA-568-C.2 and ISO/IEC 11801 category 6 requirements. It handles bandwidth-intensive tasks including voice, video, and high-speed data transfer. The rigid sheath withstands burial in conduits or attachment to building exteriors. Proper termination with shielded RJ45 connectors preserves the integrity of the foil barrier. Transmission characteristics remain stable across a wide temperature range. Characteristic impedance stays within the 100-ohm specification. Low return loss values indicate minimal signal reflection at connection points. This ensures reliable data throughput over the maximum 90-meter permanent link distance. Installers should observe a minimum bend radius of eight times the outer diameter. This prevents damage to the foil shield. The 23AWG wire gauge provides necessary tensile strength for vertical pulls.
Specifications
| Feature | Specification |
|---|---|
| Category | CAT6 |
| Shielding Type | F/UTP (Foiled / Unshielded Twisted Pair) |
| Conductor Material | 100% Solid Bare Copper |
| Wire Gauge | 23 AWG |
| Jacket Material | Polyethylene (PE) – Outdoor Rated |
| Length | 305 Meters (1000 Feet) |
| Frequency Range | Up to 250 MHz |
| UV Resistance | Yes |
What’s in the Box
305M Nexa F/UTP CAT6 Outdoor Full Copper Cable
Why Choose Nexa CAT6 F/UTP Outdoor
Full copper composition ensures long-term reliability for high-power PoE applications.
Foil shielding prevents data corruption in environments with high electromagnetic noise.
The PE jacket provides durable protection against harsh outdoor elements and UV rays.
Kevin Mwangi (verified owner) –
Finally found real full copper. Most cables in the market are just CCA and they fail after a few months or drop speeds. Used this Nexa roll for a CCTV setup in Westlands and the signal is very stable even over the longer runs. Worth the price if you want a permanent solution.
J. Omondi (verified owner) –
We rewired our office block with this Nexa F/UTP. The shielding is a lifesaver because we have a lot of power cables running nearby in the same trunking and interference was a headache before. It’s a full 305M roll, no shortcuts on the length. Delivery to CBD was also quite fast.
Beatrice Achieng (verified owner) –
Good quality jacket. It’s tough enough for the sun and rain we get here. Installed it last month for our outdoor APs and no issues so far.
Faith Wambui (verified owner) –
Fair price for a 305M full copper roll. Hard to find original Nexa these days but this one is legit and passes the fluke test easily.
Samuel K. Njuguna (verified owner) –
The cable is very high quality but quite stiff to work with when doing tight corners inside small conduits. Definitely meant for heavy duty outdoor use. Performance is 100% but your fundis will need to be patient with the thickness.
