24 Port SC/UPC Duplex MM Adapter and Pigtails OM3 Fiber Patch Panel, 1U Rackmount
Limited Stock
24 Port SC/UPC Duplex MM Adapter and Pigtails OM3 Fiber Patch Panel, 1U Rackmount
| Port count | 24 duplex |
| Adapter type | SC/UPC duplex |
| Fiber type | OM3 50/125 µm |
| Pigtails | 24 OM3 included |
| Insertion loss | ≤0.30 dB |
| Return loss | ≥50 dB |
| Rack height | 1U |
| Dimensions | 44 x 483 x 200 mm |
Same day Delivery
Delivery
We deliver to the address you provide. Nairobi is often same-day on business days.
Across the country
Delivery outside CBD starts from KES 300
Warranty 1 year
72-hour (3-day) returns
Description
Rackmount Fiber Termination Panel

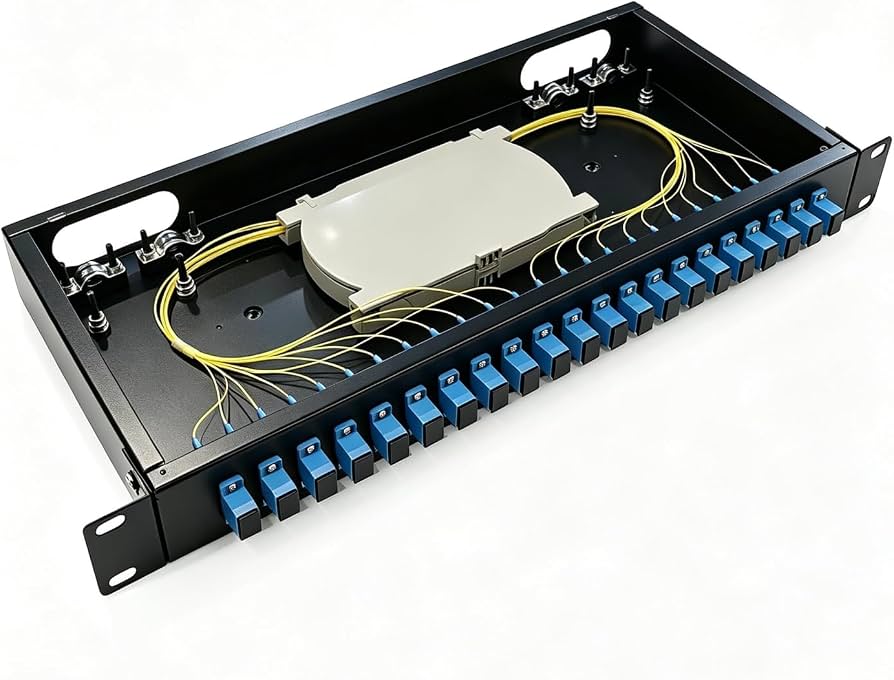

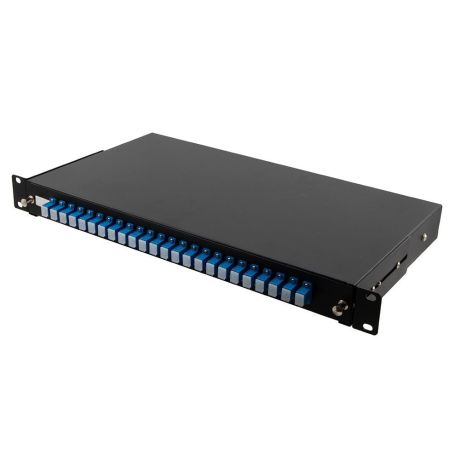

The SC/UPC patch panel terminates 24 OM3 multimode fibers in a 1U 19-inch chassis. It ships populated with 24 SC/UPC duplex adapters and 24 factory-terminated pigtails. The unit suits distribution frames, equipment rooms and building backbone tie-ins.
OM3 fiber uses a 50 µm core and 125 µm cladding, which supports 10G Ethernet to 300 m and 40G to 100 m. The SC/UPC connectors use 2.5 mm ceramic ferrules with an ultra-physical-contact polish. Insertion loss stays at or below 0.30 dB, and return loss reaches 50 dB or better.
The cold-rolled steel housing measures 44 x 483 x 200 mm and fits EIA-310 19-inch racks. Four cable entry points accept loose-tube, tight-buffer and pre-terminated cables. A powder-coated finish resists corrosion, and the panel operates from -40 °C to 85 °C.
Key Features
24 SC/UPC Duplex Adapters
Each adapter accepts two SC/UPC connectors and provides a ceramic alignment sleeve for repeatable mating.OM3 Multimode Pigtails Included
- 24 factory-terminated 50/125 µm pigtails
- Aqua jacket identifies OM3 fiber
- UPC ferrule polish keeps return loss ≥50 dB
Low Insertion Loss
The connector pair holds insertion loss at ≤0.30 dB per IEC 61300-3-4 Method B.1U 19-Inch Rackmount Chassis
The 44 mm height fits one rack unit, and the 200 mm depth clears most cabinet doors.Splice Trays and Cable Management
Internal trays route and protect spliced fibers, and four rear entries accept different cable constructions.Wide Operating Range
The assembly functions from -40 °C to 85 °C and meets UL94 V-0 flammability requirements.
Specifications
| Feature | Specification |
|---|---|
| Port count | 24 duplex ports |
| Adapter type | SC/UPC duplex |
| Fiber type | OM3 multimode, 50/125 µm |
| Pigtails | 24 OM3 pigtails included |
| Insertion loss | ≤0.30 dB (IEC 61300-3-4 Method B) |
| Return loss | ≥50 dB (UPC) |
| Mating durability | ≥1000 cycles |
| Rack height | 1U |
| Rack width | 19 inches (483 mm) |
| Dimensions | 44 x 483 x 200 mm |
| Housing material | Cold-rolled steel, powder-coated |
| Cable entries | 4 rear entry points |
| Operating temperature | -40 °C to 85 °C |
| Flammability | UL94 V-0 |
| Connector compliance | IEC 61754-4, TIA 604-3, RoHS |
| Application | Multimode backbone termination |
What’s in the Box
1U 24-port patch panel chassis
24 SC/UPC duplex adapters
24 OM3 multimode pigtails
Splice trays and cable ties
Mounting brackets and screws
Installation guide
Why Choose This Fiber Panel
Factory-terminated pigtails remove field polishing and reduce splice time on site.
The 1U chassis fits standard racks and leaves room for switches and servers.
OM3 glass supports 10G links to 300 m for campus and data centre runs.
Ceramic ferrules hold stable loss figures across repeated mating cycles.
Cold-rolled steel housing and a 200 mm depth suit wall-mount and cabinet installations.
