OEM 48-Port LC/UPC Duplex OS2 Fiber Patch Panel
WhatsApp for availability
OEM 48-Port LC/UPC Duplex OS2 Fiber Patch Panel
| Feature | Specification |
|---|---|
| Ports | 48 (24 LC Duplex) |
| Fiber Type | OS2 Singlemode |
| Connector | LC/UPC |
| Rack Size | 1U 19″ |
Shipping & Delivery
Fast delivery
Your order will be deliver to the specified address
15 - 45 minutes
From KES 300
Warranty 1 year
Free 30-Day returns
Description
OEM 48-Port Fiber Panel
The OEM 48-Port LC/UPC OS2 serves as a high-density termination point for singlemode optical networks. This 1U rack-mountable enclosure integrates 24 LC duplex adapters to support 48 individual fiber cores. It provides a structured environment for splicing and managing optical cables within standard 19-inch equipment racks. The unit facilitates efficient cable routing while maintaining signal integrity across long-distance telecommunications links. Network engineers utilize this hardware in data centers and enterprise backbones requiring reliable OS2 connectivity. The sliding drawer design allows access to internal splice trays without removing the chassis from the rack.
Key Features
High-Density Optical Distribution
The 1U chassis houses 24 LC Duplex adapters to provide 48 termination points in a compact footprint.Pre-installed Termination Components
- Includes 48 OS2 singlemode pigtails with 900μm tight-buffered jackets.
- Adapters feature zirconia ceramic alignment sleeves for precise core coupling.
- Connectors utilize UPC polishing to minimize back-reflection and return loss.
Mechanical Chassis Design
Heavy-duty cold-rolled steel construction with a powder-coated finish ensures long-term structural durability.Fiber Management System
- Integrated splice trays accommodate fusion sleeves for all 48 fiber strands.
- Internal cable routing rings maintain minimum bend radius requirements.
- Rear cable entry ports include rubber grommets to protect incoming feeder cables.
Specifications
| Feature | Specification |
|---|---|
| Port Count | 48 (24 LC Duplex) |
| Fiber Category | OS2 Singlemode 9/125μm |
| Connector Type | LC/UPC |
| Form Factor | 1U 19-inch Rackmount |
| Insertion Loss | ≤ 0.3dB |
| Return Loss | ≥ 50dB |
| Pigtail Standard | TIA-598-A Color Coded |
| Material | Cold Rolled Steel (SPCC) |

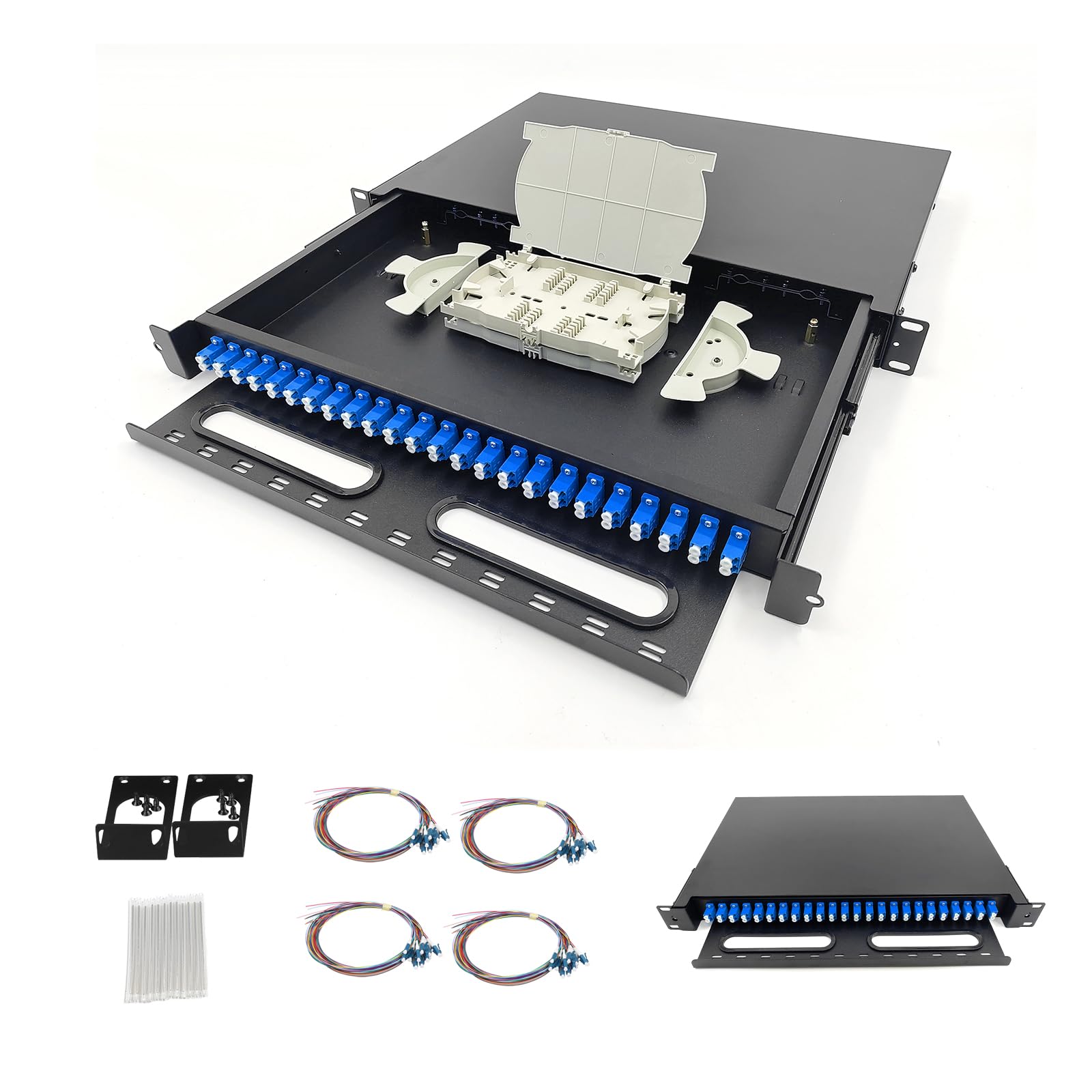

What’s in the Box
1U Rackmount Fiber Patch Panel
24 LC/UPC Duplex Singlemode Adapters
48 OS2 LC/UPC Pigtails (0.9mm)
Splice Trays and Protective Sleeves
Mounting Hardware and Cable Ties
Why Choose OEM 48-Port Fiber Panel
The 9/125μm OS2 fiber supports high-bandwidth transmission over distances exceeding 10 kilometers.
Color-coded pigtails according to TIA-598-A standards simplify core identification during fusion splicing.
Additionally, the sliding tray mechanism reduces downtime during maintenance by providing easy internal access.
Standard 19-inch mounting brackets ensure compatibility with all universal server racks and network cabinets.
Amina Hassan (verified owner) –
Value for money kabisa. You get 48 ports for a fraction of the price of the branded ones without sacrificing the OS2 performance. Ideal for our office backbone upgrade. No issues with the LC/UPC polish quality.
Brian Mutiso (verified owner) –
The panel itself is strong, but I’m giving it a 3 because the pigtails inside were a bit tangled in the box. It took my technician some extra time to sort them out before splicing. Otherwise, the performance is 100% once installed.
Sarah Njeri (verified owner) –
Good quality for an OEM product. The OS2 pigtails included are standard and spliced easily without high dB loss. Only thing is the rack ears were a bit tight on my specific cabinet, but we managed to fit it in.
David Omondi (verified owner) –
I like that it comes fully loaded with the adapters and pigtails already. Saves a lot of time on site when you don’t have to mount adapters one by one. The sliding tray is smooth and cable management at the back is decent for this price point.
Kelvin Mwangi (verified owner) –
This 48-port panel is a lifesaver for high-density racks. The build is solid and the LC duplex connections click in perfectly. Used it for a project in Upper Hill and the client is very happy with the final neatness of the server room.
Josphat Otieno (verified owner) –
Safi sana. Very fast delivery to our office in Nairobi CBD. Item is exactly as described and the adapters are already mounted.
