LC-LC UPC 20m OM3 Patch Cord Duplex 50/125 µm Multimode Fiber
Limited Stock
LC-LC UPC 20m OM3 Patch Cord Duplex 50/125 µm Multimode Fiber
| Connector type | LC/UPC to LC/UPC, duplex |
| Fiber category | OM3 multimode, 50/125 µm |
| Assembly length | 20 m |
| Insertion loss | ≤0.3 dB per mated pair |
| Return loss | ≥30 dB (UPC) |
| EMB at 850 nm | ≥2000 MHz·km |
| Attenuation at 850 nm | ≤3.0 dB/km |
| Attenuation at 1300 nm | ≤1.5 dB/km |
| Cable diameter | 2.0 mm |
| Jacket | LSZH, aqua |
Same day Delivery
Delivery
We deliver to the address you provide. Nairobi is often same-day on business days.
Across the country
Delivery outside CBD starts from KES 300
Warranty 1 year
72-hour (3-day) returns
Description
Duplex Multimode Lead for 10G Short-Reach Links

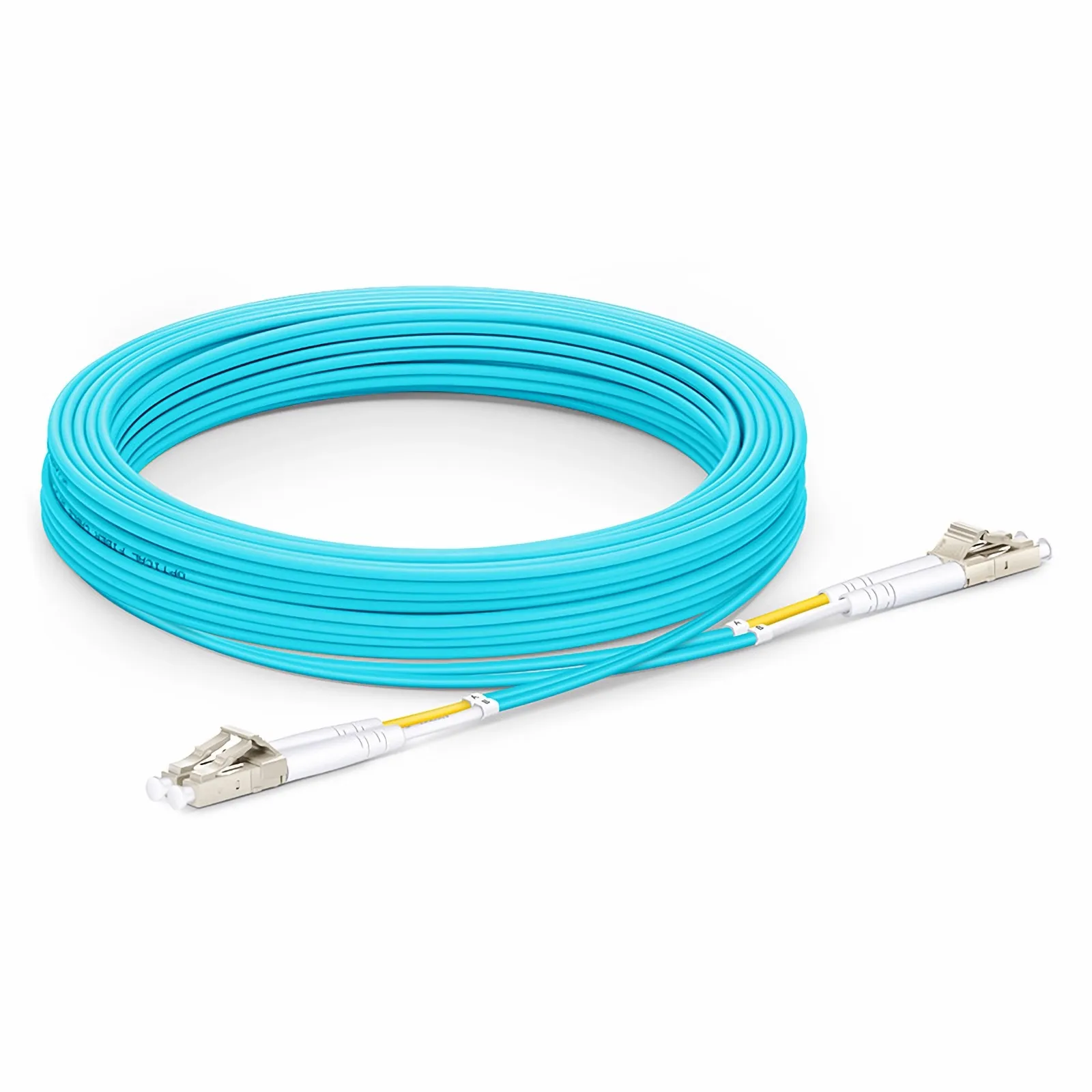

The LC-LC UPC 20m OM3 is a duplex multimode patch cord for 850 nm and 1300 nm links. Two LC/UPC connectors terminate a 50/125 µm OM3 fiber pair over a 20 m run. Insertion loss holds at 0.3 dB or less per mated pair.
Laser-optimised OM3 glass delivers 2000 MHz·km effective modal bandwidth at 850 nm and 500 MHz·km at 1300 nm. That headroom carries 10GBASE-SR to 300 m and 40GBASE-SR4 to 100 m. Attenuation runs to 3.0 dB/km at 850 nm and 1.5 dB/km at 1300 nm.
A 2.0 mm zipcord jacket fits high-density trays and 1U enclosures. The aqua LSZH sheath identifies OM3 grade and limits toxic smoke in occupied equipment rooms. Bend radius holds at 10 mm static and 20 mm under load. Operating temperature spans -20 °C to 70 °C, and each assembly ships individually tested.
Key Features
LC/UPC Duplex Termination
Two LC connectors with zirconia ceramic ferrules present a standard duplex interface on both ends.OM3 50/125 µm Laser-Optimised Fiber
The graded-index core supports 10G and 40G short-reach links across the full 20 m span.Optical Performance
- Insertion loss ≤0.3 dB per mated pair
- Return loss ≥30 dB with UPC polish
- 1000 mating cycles rated connector durability
Effective Modal Bandwidth
EMB reaches 2000 MHz·km at 850 nm, which exceeds the 10GBASE-SR requirement.Zipcord Construction
The two fibers share one 2.0 mm jacket and separate at the connectors for polarity control.Aqua LSZH Jacket
Low-smoke zero-halogen compound limits toxic emissions and marks the OM3 grade.20 Metre Assembly Length
The 20 m run links adjacent racks and remote patch panels without excess slack coil.
Specifications
| Feature | Specification |
|---|---|
| Connector type | LC/UPC to LC/UPC, duplex |
| Fiber category | OM3 multimode |
| Core / cladding | 50/125 µm |
| Fiber count | 2 (duplex zipcord) |
| Assembly length | 20 m |
| Insertion loss | ≤0.3 dB per mated pair |
| Return loss | ≥30 dB (UPC polish) |
| Wavelengths | 850 nm and 1300 nm |
| EMB at 850 nm | ≥2000 MHz·km |
| OFL bandwidth at 1300 nm | ≥500 MHz·km |
| Attenuation at 850 nm | ≤3.0 dB/km |
| Attenuation at 1300 nm | ≤1.5 dB/km |
| Cable diameter | 2.0 mm |
| Jacket material | LSZH |
| Jacket colour | Aqua |
| Bend radius, static | 10 mm |
| Bend radius, loaded | 20 mm |
| Mating durability | 1000 cycles |
| Operating temperature | -20 °C to 70 °C |
| Storage temperature | -40 °C to 80 °C |
| Standards | ISO/IEC 11801 OM3, TIA-568.3-D, IEC 61754-20, RoHS |
| Application | 10GBASE-SR, 40GBASE-SR4, 1000BASE-SX, Fibre Channel |
What’s in the Box
20 m duplex LC to LC multimode fiber assembly
Dust caps on both connector ends
Why Choose This Duplex Lead
OM3 glass extends 10GBASE-SR reach to 300 m without active optics.
UPC end faces keep back-reflection low on short-reach switch and server links.
The 20 m span covers rack-to-rack and panel-to-panel routes without slack loops.
LSZH jacket suits enclosed cabinets where PVC smoke would be a hazard.
Aqua sheath lets technicians identify OM3 ports without tracing.
Zipcord construction simplifies polarity swaps between LC transceivers.
