OEM 24-Port SC/UPC Duplex OS2 Fiber Patch Panel
WhatsApp for availability
OEM 24-Port SC/UPC Duplex OS2 Fiber Patch Panel
| Feature | Specification |
|---|---|
| Port Count | 24 Fibers |
| Connector | SC/UPC Duplex |
| Fiber Type | OS2 Singlemode |
| Form Factor | 1U Rackmount |
| Included | Pigtails & Adapters |
Shipping & Delivery
Fast delivery
Your order will be deliver to the specified address
15 - 45 minutes
From KES 300
Warranty 1 year
Free 30-Day returns
Description
OEM 24-Port OS2 Enclosure

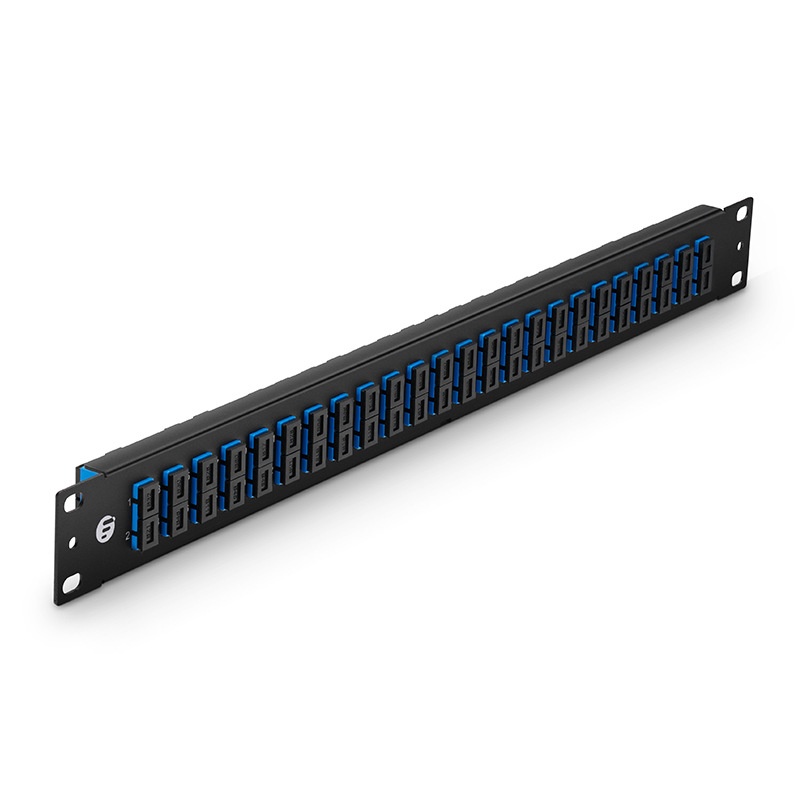

The OEM 24-Port OS2 Panel provides a high-density termination solution for singlemode fiber optic networks. This 1U rack-mountable enclosure facilitates organized cable management and secure splicing in data center environments. It integrates twelve SC/UPC duplex adapters to support twenty-four fiber terminations. The chassis utilizes cold-rolled steel for structural integrity in standard 19-inch equipment racks. This unit includes pre-installed OS2 pigtails to accelerate deployment times during initial installation. Each component undergoes testing to ensure compliance with telecommunications standards.
Key Features
High-Density 1U Design
The compact form factor supports 24 fibers while occupying minimal vertical rack space.Sliding Drawer Mechanism
A smooth-gliding internal tray allows technicians to access splice trays without removing the chassis.Optical Performance
- Insertion loss remains below 0.3dB for reliable signal transmission.
- SC/UPC adapters feature ceramic alignment sleeves for precise core mating.
- Singlemode OS2 pigtails support long-haul 10G and 40G applications.
Cable Management
Integrated routing hoops maintain the minimum bend radius to prevent macro-bending attenuation.
The internal layout features a organized splice tray configuration. This design allows technicians to manage fusion splices in a stacked arrangement. Rear cable entry ports include rubber grommets to prevent dust ingress. These ports also protect fiber jackets from sharp metal edges. The SC/UPC adapters use blue housing to signify singlemode UPC polish types. Additionally, the pigtails follow TIA/EIA-598 color coding for rapid fiber identification during splicing. The 1.2mm thick SPCC steel frame resists warping under the weight of heavy trunk cables. Each pigtail offers 1.5 meters of slack for multiple re-splicing attempts. The front panel includes clear numerical labeling for accurate port documentation. This system reduces troubleshooting time during critical maintenance windows. The matte black powder-coated finish provides long-term resistance to corrosion and scratches. This enclosure serves as a robust foundation for enterprise-level optical infrastructure.
Specifications
| Feature | Specification |
|---|---|
| Fiber Count | 24 Ports |
| Adapter Type | SC/UPC Duplex |
| Fiber Grade | OS2 Singlemode (9/125um) |
| Rack Height | 1U (19-inch standard) |
| Material | Cold-Rolled Steel (SPCC) |
| Insertion Loss | ≤ 0.3dB |
| Return Loss | ≥ 50dB |
| Pigtail Length | 1.5 Meters |
| Operating Temp | -40°C to +75°C |
What’s in the Box
1U 24-Port Fiber Patch Enclosure
12 x SC/UPC Duplex Adapters (Pre-installed)
24 x OS2 Singlemode Pigtails (1.5m)
Splice Trays and Protective Sleeves
Rack Mounting Hardware Kit
Why Choose OEM 24-Port OS2 Enclosure
The rackmount unit maximizes vertical space in high-density networking cabinets.
It protects delicate fusion splices from environmental hazards and physical stress.
Included pigtails eliminate the need for separate procurement of termination components.
High-precision ceramic sleeves minimize back-reflection in the optical link for stable performance.
Brian Wekesa (verified owner) –
Using this for a CCTV fiber link across a large warehouse in Industrial Area. Signal loss is minimal with these OS2 adapters. Much better build quality than some of the generic ones I have come across in the local shops. Highly recommended for clean terminations.
Sarah Nyambura (verified owner) –
Good solid panel for the price. The SC/UPC adapters fit tightly with no wobbling when you plug in the patch cords. Delivery to Thika was also quite fast, arrived the next day. It’s a reliable unit for any medium-sized office network.
Eng. David K. (verified owner) –
Standard OS2 patch panel that fits well in a 1U rack space. The duplex setup helps save a lot of space compared to the older simplex panels we were using. The metal casing is sturdy enough for busy racks.
Kelvin Mutua (verified owner) –
Installed this in our Westlands server room last week. The pigtails provided are actually decent quality and didn’t give us any trouble during splicing. The 24-port capacity is perfect for our current backbone upgrade, and the duplex SC/UPC ports are well-aligned.
Fatuma Hassan (verified owner) –
It is a decent unit, though the sliding tray was a bit stiff at first. Had to apply a bit of force to get it moving smoothly during the initial setup. But once we loaded the fibers and mounted it, it has been working fine without issues.
Otieno J. (verified owner) –
Kazi safi. Everything arrived as described and the packaging was secure. No complaints at all.
