OEM 24 Port SC/UPC Duplex OM3 Fiber Patch Panel
WhatsApp for availability
OEM 24 Port SC/UPC Duplex OM3 Fiber Patch Panel
| Feature | Details |
|---|---|
| Fiber Type | OM3 Multimode |
| Ports | 24 Duplex SC/UPC |
| Form Factor | 1U 19″ Rackmount |
| Included | Pigtails & Adapters |
Shipping & Delivery
Fast delivery
Your order will be deliver to the specified address
15 - 45 minutes
From KES 300
Warranty 1 year
Free 30-Day returns
Description
SC/UPC Duplex OM3 Patch Panel

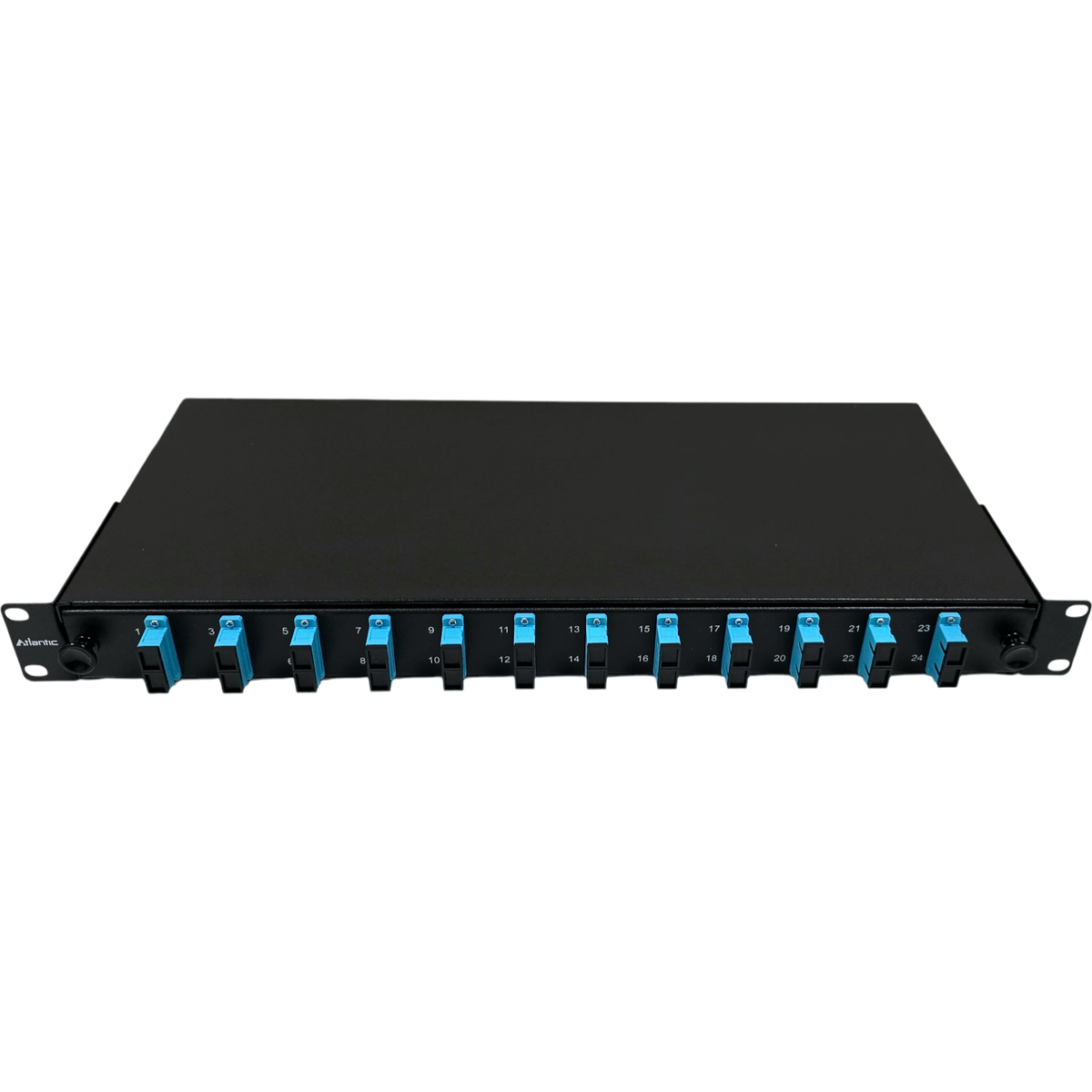

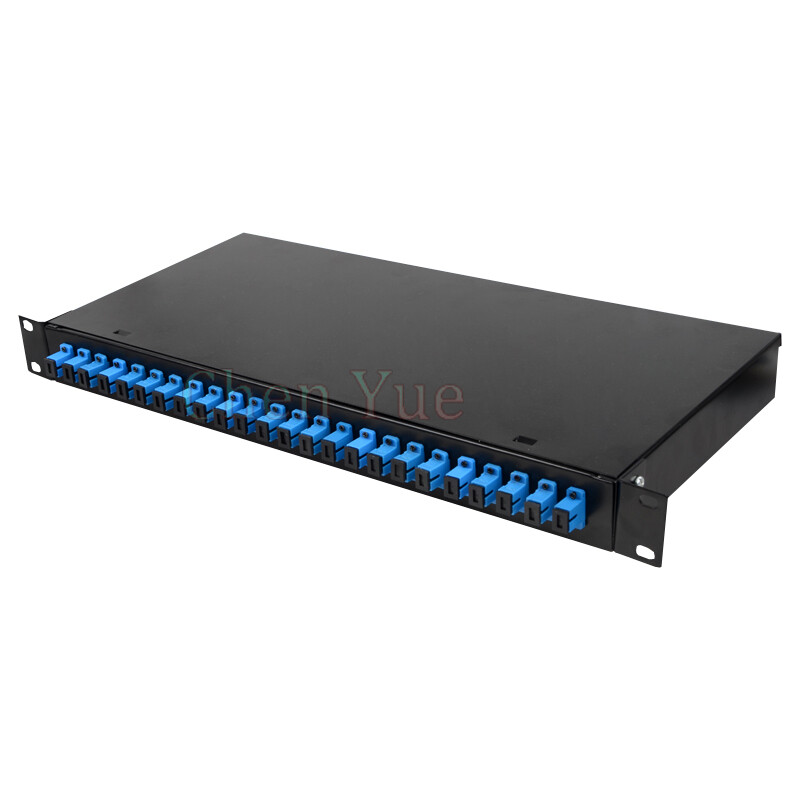

The OEM 24 Port SC/UPC patch panel serves as a centralized termination point for multimode fiber optic backbones. This 1U rackmount enclosure accommodates 24 duplex SC/UPC adapters. It includes 48 pre-terminated OM3 pigtails to streamline the splicing process. Engineers utilize this hardware in data centers requiring 10Gbps throughput. The laser-optimized 50/125 micrometer fiber cores support high-speed data transmission over medium distances.

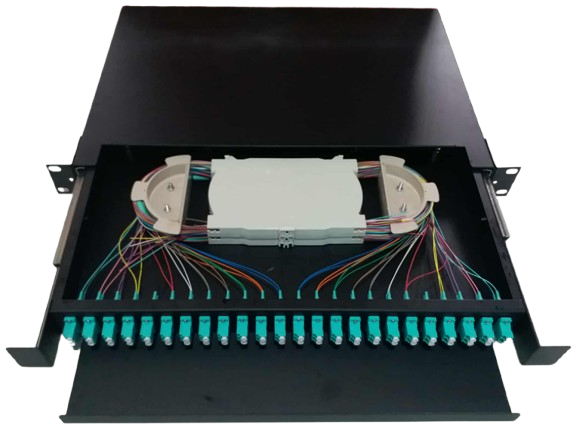

The chassis consists of heavy-duty cold-rolled steel with a powder-coated finish. This construction resists physical impact and environmental corrosion. A sliding drawer mechanism provides front-side access to the internal splice trays. This design eliminates the need to remove the unit from the rack for maintenance. Internal cable management rings maintain proper bend radius for all incoming and outgoing fibers. This prevents signal attenuation caused by macro-bending. The internal splice trays support up to 48 fusion splices. Each tray includes heat-shrink sleeve holders to secure the protective tubes. Transparent covers on the trays allow visual inspection of the fiber routing. The enclosure accommodates various cable types including loose tube and tight-buffered cables. Integrated strain relief brackets secure the outer jackets of the incoming trunks. This prevents mechanical stress on the delicate splices.
Key Features
High-Density Connectivity
The 1U form factor supports 48 fiber terminations using 24 duplex SC/UPC adapters to maximize rack space.OM3 Multimode Performance
- Supports 10 Gigabit Ethernet up to 300 meters.
- Features 50/125 micron laser-optimized fiber cores.
- Meets ISO/IEC 11801 and TIA-568.3-D standards.
Precision Optical Components
Ceramic alignment sleeves within the adapters ensure low insertion loss and high return loss for signal stability.Standardized Color Coding
Pre-installed pigtails follow TIA/EIA-598 color standards to simplify fiber identification during installation and testing.
Specifications
| Feature | Specification |
|---|---|
| Port Count | 24 Duplex (48 Fibers) |
| Adapter Type | SC/UPC Duplex |
| Fiber Category | OM3 Multimode 50/125µm |
| Rack Units | 1U (19-inch standard) |
| Chassis Material | 1.2mm Cold Rolled Steel |
| Insertion Loss | ≤ 0.3dB |
| Return Loss | ≥ 35dB |
| Operating Temperature | -20°C to +60°C |
What’s in the Box
1U Rackmount Fiber Enclosure
24 SC/UPC Duplex Multimode Adapters
48 OM3 SC/UPC Fiber Pigtails
Internal Splice Trays and Heat Shrink Sleeves
Rack Mounting Screw Kit
Why Choose SC/UPC Fiber Enclosure
Ready-to-splice configuration reduces site labor costs and deployment timelines for network upgrades.
Industrial-grade steel housing protects sensitive optical connections from mechanical damage in high-traffic server rooms.
Sliding tray design allows for seamless future expansion or maintenance without interrupting adjacent rack equipment.
Customer Reviews
6 reviews for OEM 24 Port SC/UPC Duplex OM3 Fiber Patch Panel
Clear filtersYou may also like
Evans Kipkorir (verified owner) –
We needed a cost-effective solution for our office expansion in Upper Hill and this OEM panel fits the bill perfectly. It handles the OM3 multimode fiber without any attenuation issues. The fact that it comes with the adapters and pigtails as a kit makes it a very hustle-free purchase. Highly recommended for network installers.
Fatuma Ali (verified owner) –
The unit is solid and the pigtails provided are of good quality. However, the courier took a bit of time to get to Eldoret. Once it arrived, installation was straightforward and the OM3 fiber is performing well.
Brian Mutua (verified owner) –
Sturdy build. It fits perfectly in a standard 19-inch rack. The 24-port duplex ports help keep the patch cords organized compared to the simplex ones we had before. Makes the cable management look professional.
Sarah Wanjiku (verified owner) –
Quick delivery to my office and the product is exactly as described. Safi sana.
Kevin Omondi (verified owner) –
The SC/UPC duplex adapters are firm, no loose connections like some cheap versions I’ve used before. It’s a standard 1U fit, no issues with the mounting ears. Good value for money for any server room setup.
Josphat Maina (verified owner) –
Decent panel for the price. The pigtails are already colour-coded which saved us a lot of time during splicing. Installed this in a rack in Westlands and the OM3 speeds are hitting the mark for our 10G backbone link. Kazi safi.
