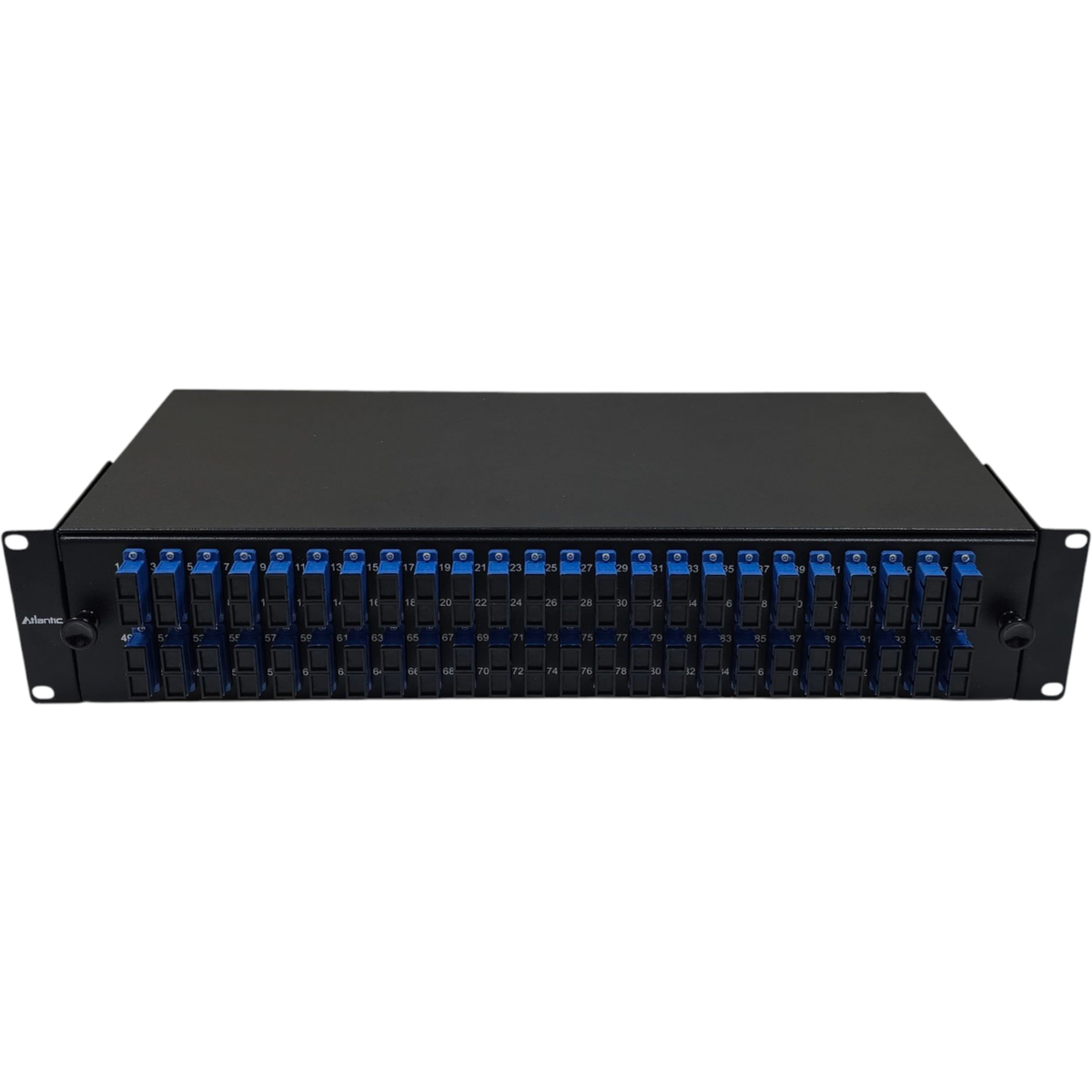

OEM 48 Port SC/UPC Duplex OS2 Fiber Patch Panel
WhatsApp for availability
OEM 48 Port SC/UPC Duplex OS2 Fiber Patch Panel
| Fiber Type | OS2 Single-mode |
| Ports | 48 SC Duplex (96 Fibers) |
| Chassis | 2U 19-inch Rackmount |
| Material | Cold Rolled Steel |
Shipping & Delivery
Fast delivery
Your order will be deliver to the specified address
15 - 45 minutes
From KES 300
Warranty 1 year
Free 30-Day returns
Description
OEM 48-Port OS2 Panel
The OEM 48 Port SC/UPC patch panel facilitates high-density single-mode fiber termination in enterprise networking environments. This 19-inch rack-mountable unit supports OS2 fiber infrastructure for telecommunications and data center rooms. It integrates 48 SC/UPC duplex adapters to provide 96 individual fiber connection points. The chassis utilizes a sliding tray design for easy access to internal components during installation. Each unit includes pre-installed pigtails to accelerate deployment times in the field. The pigtails feature 900μm tight-buffered jackets for enhanced durability. Engineers can perform fusion splicing directly within the internal splice trays. This eliminates the requirement for separate external splice enclosures.
Key Features

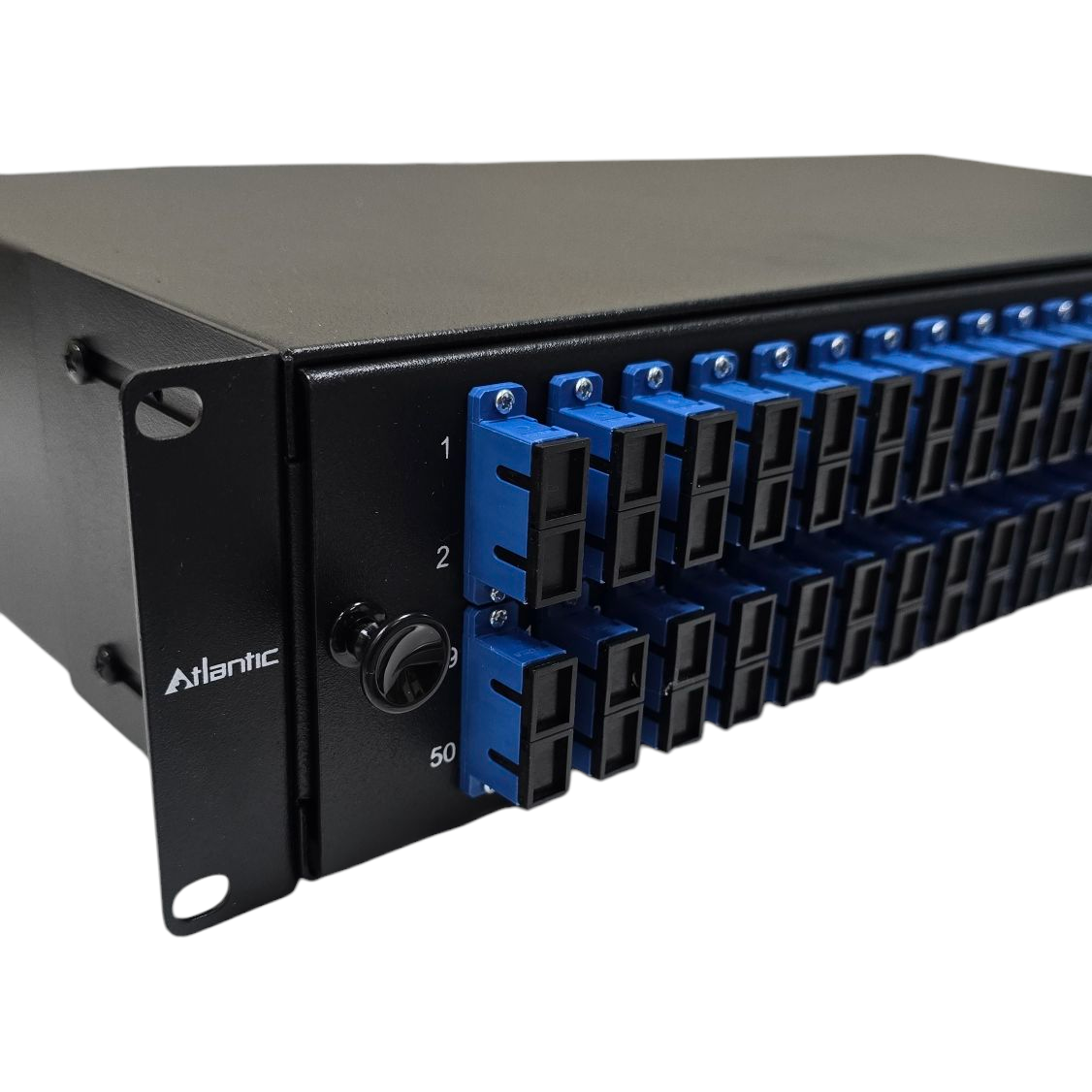

Precision Alignment Sleeves
Zirconia ceramic sleeves ensure exact ferrule alignment for minimal insertion loss across all 48 ports.Integrated Splice Management
- Internal trays support up to 96 fusion splices.
- Management mandrels maintain a minimum bend radius of 30mm.
- Trays feature a stackable design for future capacity expansion.
Ruggedized Chassis Design
The 2U frame consists of 1.2mm cold-rolled steel with an electrostatic powder-coated finish for corrosion resistance.Cable Entry and Management
- Multiple rear entry points include rubber grommets for dust protection.
- Front-mounted rings organize patch cords to prevent mechanical stress.
- Internal strain relief clamps secure incoming trunk cables.
Specifications
| Feature | Specification |
|---|---|
| Rack Height | 2U |
| Mounting Width | 19-inch Standard |
| Adapter Type | SC/UPC Duplex (Blue) |
| Fiber Category | OS2 Single-mode 9/125μm |
| Port Count | 48 (96 Fibers) |
| Insertion Loss | ≤ 0.3dB |
| Return Loss | ≥ 50dB |
| Material | 1.2mm Cold Rolled Steel |
What’s in the Box
48-Port Sliding Patch Panel Chassis
48 SC/UPC Duplex Adapters (Pre-installed)
96 OS2 SC/UPC 900μm Pigtails
Internal Splice Trays and Heat Shrink Protectors
Rack Mounting Screw Kit
Why Choose OEM 48-Port OS2 Panel
The unit maintains signal integrity across long-distance OS2 links through precision-engineered ceramic adapters.
Technical teams can identify ports easily via the numbered front panel and integrated labeling strips.

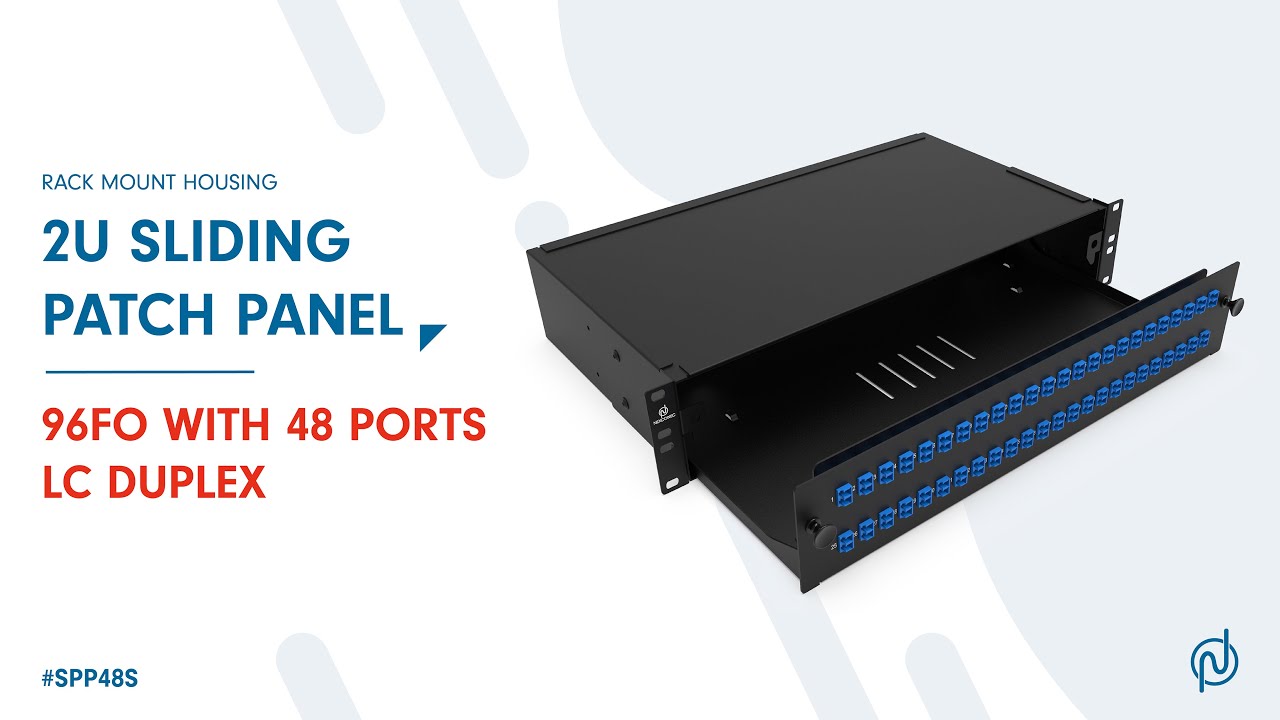

The sliding drawer mechanism provides a stable workspace for technicians during configuration changes.
It accommodates standard server racks while maximizing vertical space in high-density data centers.
Pre-installed pigtails and adapters reduce the complexity of on-site termination and procurement.
