100076 Compressor Electronics Module for BD/C 40/60/80 12/24V DC

Electronic Control Unit for BD/C Compressor Systems

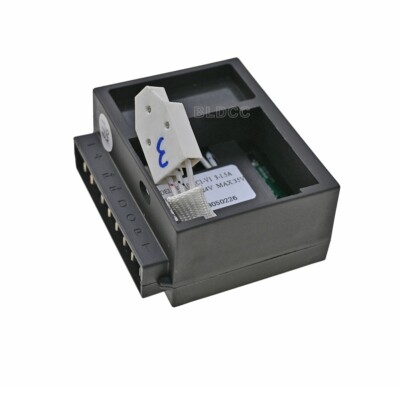

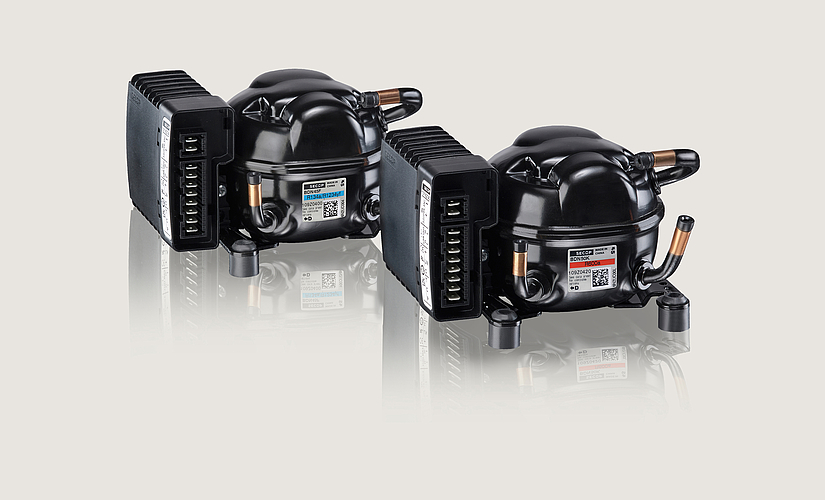

The compressor electronics module drives BD/C 40/60/80 compressor systems from a 12 V or 24 V DC supply. It handles compressor speed control, thermostat switching and battery protection in one housing. The board replaces a failed controller without changing the compressor.

The unit accepts an input range of 9.0 to 32 V DC, so the same board covers both nominal voltages. A built-in NTC input supports electronic thermostats, and a mechanical thermostat also connects. The controller regulates compressor speed across four modes to match cooling demand and current draw.

Battery protection settings prevent deep discharge by cutting the compressor at preset voltage thresholds. A fan output switches a 12 V condenser fan, and an error LED reports fault codes during service. Thermal protection stops operation if the PCB reaches 100°C. The BD P-housing mounts with standard screws inside fridge and freezer cabinets.

Key Features

• Dual 12/24 V DC Input
  The controller operates from 9.0 to 32 V DC and needs no jumper change between nominal voltages.

• Four Compressor Speed Modes
  Speed control profiles balance pull-down time against battery current in mobile refrigeration.

• Battery Discharge Protection

  • Resistor-selectable cut-out and cut-in thresholds
  • Separate settings for 12 V and 24 V systems
  • Solar mode available on supported profiles

• Thermostat Flexibility
  The board accepts an NTC sensor or a mechanical thermostat through the same terminal block.

• Fan and Error Outputs
  A switched fan supply and diagnostic LED simplify cabinet wiring and fault finding.

• Thermal Cut-Out at 100°C
  The PCB stops compressor drive if internal temperature exceeds the limit.

Specifications

What’s in the Box

• 1 x 100076 compressor electronic control unit

• Mounting screws

• Terminal connector set

Why Choose This Control Unit

• The wide 9.0–32 V DC input covers 12 V and 24 V vehicle and solar supplies.

• Battery cut-out thresholds protect the cranking battery during long stationary periods.

• Speed mode selection lets technicians trade cooling speed for lower current draw.

• The BD P-housing matches the mounting pattern of common portable refrigeration cabinets.

• Error LED and serial diagnostics shorten fault finding on site.
