Universal 12V DC Female Socket Panel Mount 10A Power Outlet

Panel-Mount Power Outlet for 12V Systems

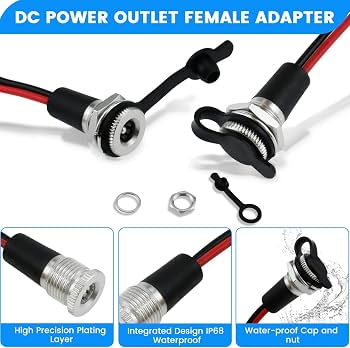

The 12V DC female socket provides a panel-mount power outlet for vehicle, marine and enclosure wiring. It accepts a standard 12V accessory plug and carries up to 10A at 12V DC. The metal shell and plastic insulator isolate the centre contact from the outer body.

The socket fits a 26 mm mounting hole and secures with a locking nut behind the panel. Two solder or spade terminals connect the centre pin to positive and the shell to ground. A protective cap covers the opening when no plug is inserted.

Contact resistance stays below 0.01 ohm at the rated current. The spring-loaded centre contact maintains pressure on the plug tip through vibration. The outer shell uses nickel-plated brass for corrosion resistance in damp environments.

Installers should fuse the positive lead at the source. A 10A blade fuse protects the wiring and the socket from short circuits. Confirm polarity before connection, because reverse polarity can damage the device plugged into the outlet.

Typical applications include dash cameras, tyre inflators, phone chargers and marine electronics. The socket also suits test benches and DIY enclosures that need a quick DC outlet. Mount it in a dry location or use a sealed enclosure where water exposure is likely.

Check the panel thickness before tightening the nut. A panel between 1 mm and 6 mm seats the locking ring without compressing the insulator. Clean the terminals with contact cleaner if the socket sits unused for long periods.

Rated voltage covers 12V DC systems, and the socket tolerates up to 24V DC in light-duty use. Current rating depends on the mated plug and wiring gauge. Use 16 AWG wire for runs up to 2 m at 10A, and thicker cable for longer runs. Crimp terminals firmly and tug-test each connection before energising the circuit.

Bench tests should include a load test at half the rated current for 30 minutes. Measure the voltage drop across the socket and terminals. A drop above 0.5V indicates poor contact or undersized wiring. Re-terminate or replace the socket if the drop persists.

Key Features

• 10A Current Rating
  The outlet carries up to 10A at 12V DC for chargers, inflators and small accessories.

• Panel Mount Fixing

  • Fits a 26 mm mounting hole
  • Locking nut secures the body behind the panel

• Two-Terminal Wiring
  Solder or spade terminals connect the centre pin to positive and the shell to ground.

• Protective Cap
  A hinged cap covers the opening when no plug is inserted.

• Nickel-Plated Brass Shell
  The plated shell resists corrosion in damp vehicle and marine environments.

• Spring-Loaded Centre Contact
  The contact maintains pressure on the plug tip through vibration and temperature swings.

• Low Contact Resistance
  Contact resistance stays below 0.01 ohm at the rated current.

• Wide Temperature Range
  The socket operates from -20°C to 85°C in dry locations.

Specifications

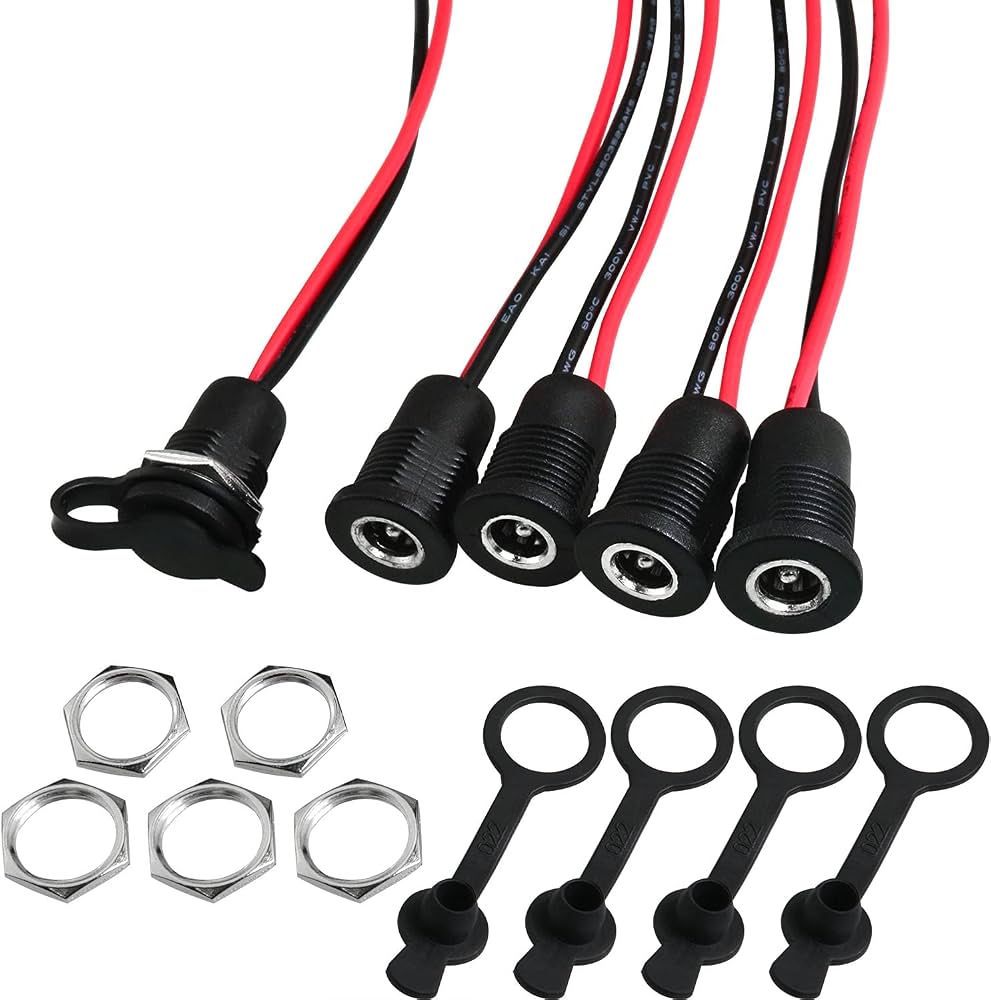

What’s in the Box

• Universal 12V socket

• Locking nut

• Protective cap

Why Choose This Power Outlet

• The 10A rating covers common vehicle accessories without overload.

• A 26 mm panel hole suits standard dashboards and enclosure plates.

• Nickel-plated contacts resist corrosion in damp installations.

• The spring-loaded centre pin maintains contact through vibration.

• Two-terminal wiring simplifies connection to fused DC circuits.

• The hinged cap keeps dust and debris out of the outlet.
