Nexa GYXTW 12 Core G652D Armored Fiber Cable
KSh 100.00 ex VAT
Nexa GYXTW 12 Core G652D Armored Fiber Cable
| Fiber Count | 12 Cores |
| Fiber Standard | G.652.D |
| Cable Type | GYXTW Armored |
| Jacket | PE (Outdoor Rated) |
| Strength Member | Steel Wire |
Shipping & Delivery
Delivery
We deliver to the address you provide. Nairobi CBD is often same-day on business days.
Nairobi CBD or Kenya-wide
Free CBD ≥ KES 20,000; else from KES 300
Warranty 1 year
72-hour (3-day) returns
Description
Nexa GYXTW Armored Cable

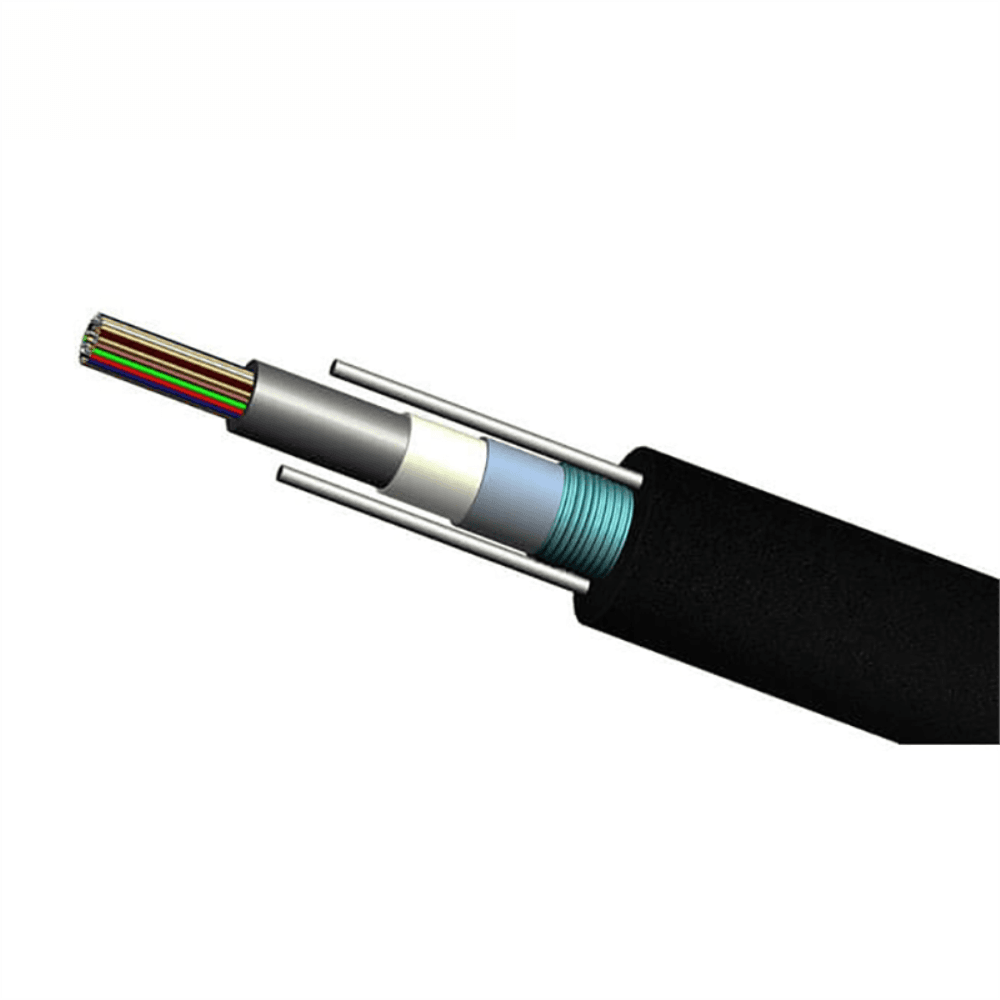

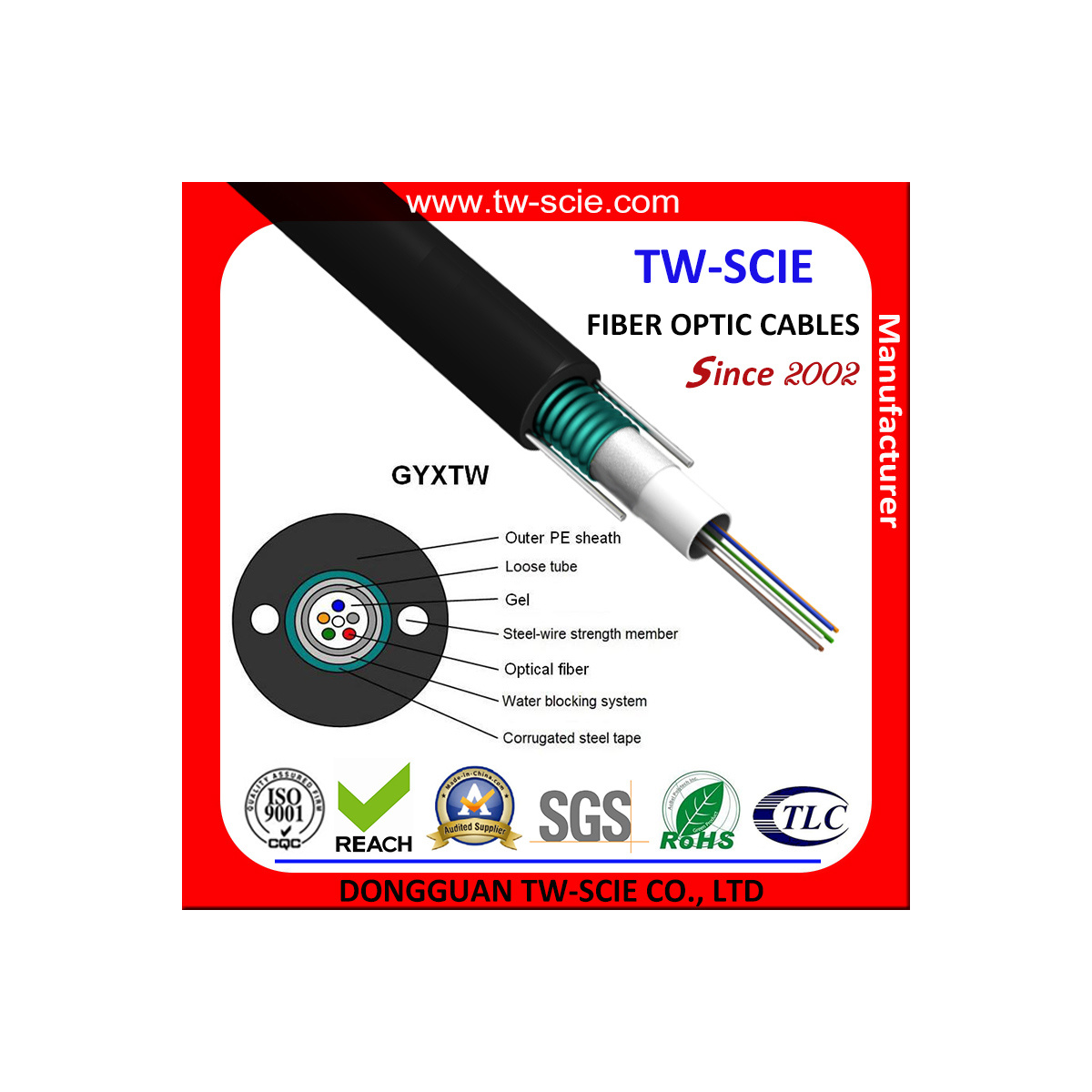

The Nexa GYXTW 12 Core optical solution utilizes a uni-tube construction for outdoor telecommunications. This architecture houses twelve G.652.D singlemode fibers within a central loose tube filled with a water-resistant jelly compound. The glass strands meet the low water peak standard. This allows for transmission across the entire wavelength range from 1260 nm to 1625 nm. A corrugated steel tape (CST) armor provides a robust barrier against moisture and physical damage. Two parallel steel wires embedded in the outer polyethylene (PE) jacket ensure high tensile strength for pulling through conduits. This design maintains a small diameter while offering superior crush resistance. Engineers deploy this cabling in duct or aerial environments where mechanical protection is a priority.
Key Features
G.652.D Singlemode Fiber
The low water peak glass ensures minimal attenuation at the 1383 nm wavelength for E-band applications.Mechanical Reinforcement
- Corrugated steel tape prevents rodent penetration.
- Dual steel strength members provide 1500N short-term tensile load capacity.
Environmental Resistance
The high-density polyethylene jacket resists ultraviolet radiation and environmental stress cracking.Water Blocking System
- Central tube jelly compound prevents longitudinal water migration.
- Moisture-proof tape provides a secondary layer of protection.
Specifications
| Feature | Specification |
|---|---|
| Fiber Count | 12 Cores |
| Fiber Type | G.652.D Singlemode |
| Cable Structure | GYXTW (Central Loose Tube) |
| Armor Type | Corrugated Steel Tape (CST) |
| Strength Member | Two Parallel Steel Wires |
| Attenuation (1310nm) | ≤ 0.36 dB/km |
| Attenuation (1550nm) | ≤ 0.22 dB/km |
| Outer Diameter | 8.0 mm ± 0.5 mm |
| Jacket Material | PE (Black) |
What’s in the Box

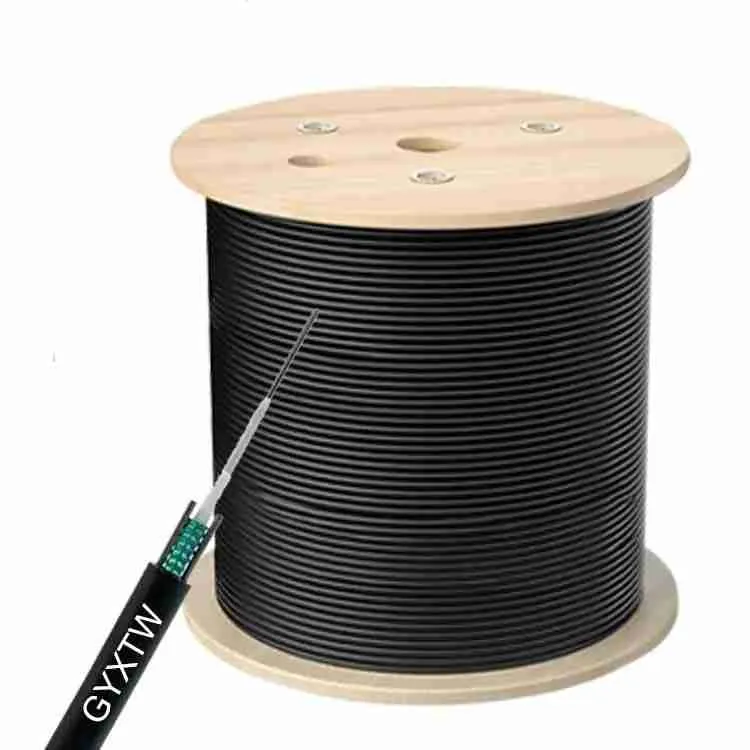

Nexa 12-Strand Armored Fiber Spool
Factory Test Report
Why Choose Nexa GYXTW Armored Cable
The G.652.D specification provides future-proof bandwidth by supporting the full spectrum of optical transmission. Additionally, the uni-tube design minimizes the cable footprint for installations in congested urban ducts. However, the steel tape armor does not sacrifice flexibility during the pulling process. This 12-fiber medium offers high reliability for campus backbones and metropolitan area networks. The dual steel wire members ensure the optical cores remain unstressed under maximum rated tension. These technical attributes facilitate long-term stability in harsh outdoor climates.
Josphat Omondi (verified owner) –
I’ve used Nexa before but this GYXTW 12 core is particularly impressive for the price point. The water-blocking jelly inside is well-distributed, and the outer PE jacket handles the Nairobi sun well without cracking during outdoor runs. We pulled about 500m last week and didn’t have any issues with the central strength members. It’s a reliable G652D cable for anyone doing serious networking or ISP last-mile connections.
Kelvin Mwangi (verified owner) –
Good quality fiber. We used this for a project in Syokimau where the ground is a bit rocky. The steel tape armor is solid enough for direct burial without worrying too much about mechanical damage or rodents. Splicing was straightforward with the G652D cores. Only issue was the delivery took a day longer than expected, but the cable itself is top notch.
Faith Atieno (verified owner) –
Perfect for our office CCTV backbone. Signal loss is very low and the 12 cores give us enough room for future expansion.
