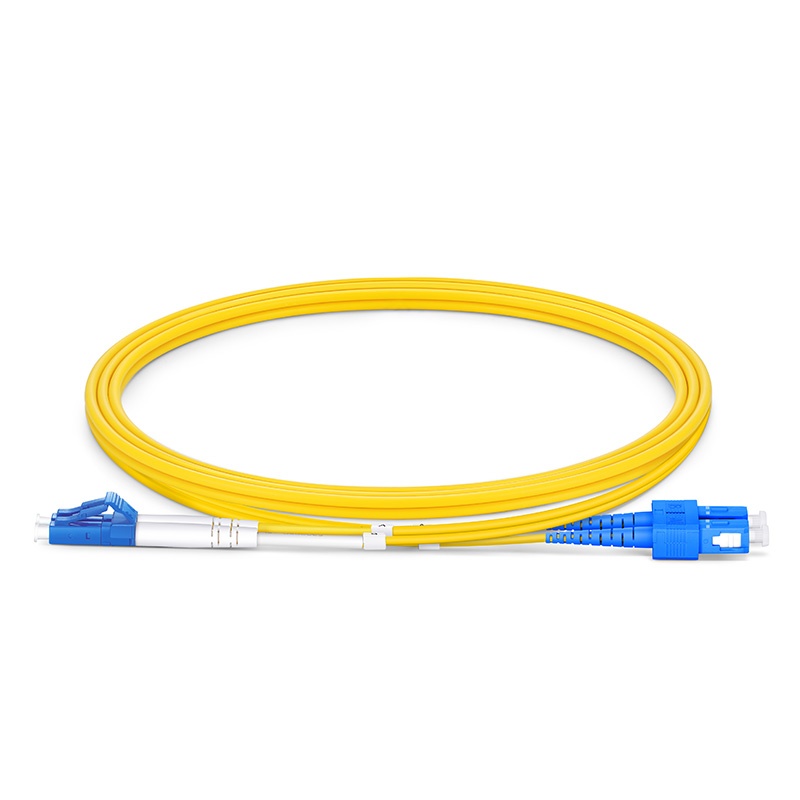

OEM SC-LC UPC 3m OS2 Singlemode Patch Cable

SC-LC Singlemode Fiber Cable

The OEM SC-LC OS2 Patch facilitates high-speed data transmission across singlemode fiber networks. This 3-meter assembly utilizes 9/125µm fiber optics to ensure minimal signal degradation over long distances. Network engineers deploy these cables in data centers to bridge connections between switches and patch panels. The SC and LC connectors feature Ultra Physical Contact polishing to reduce back reflection. This specific configuration supports 1310nm and 1550nm wavelengths common in enterprise infrastructure. The construction meets stringent industry standards for optical performance and physical durability. Using high-quality ceramic ferrules ensures precise alignment during mating cycles. This prevents signal loss caused by axial or angular misalignment. The yellow jacket signifies singlemode OS2 compliance for easy identification in dense racks.

Key Features

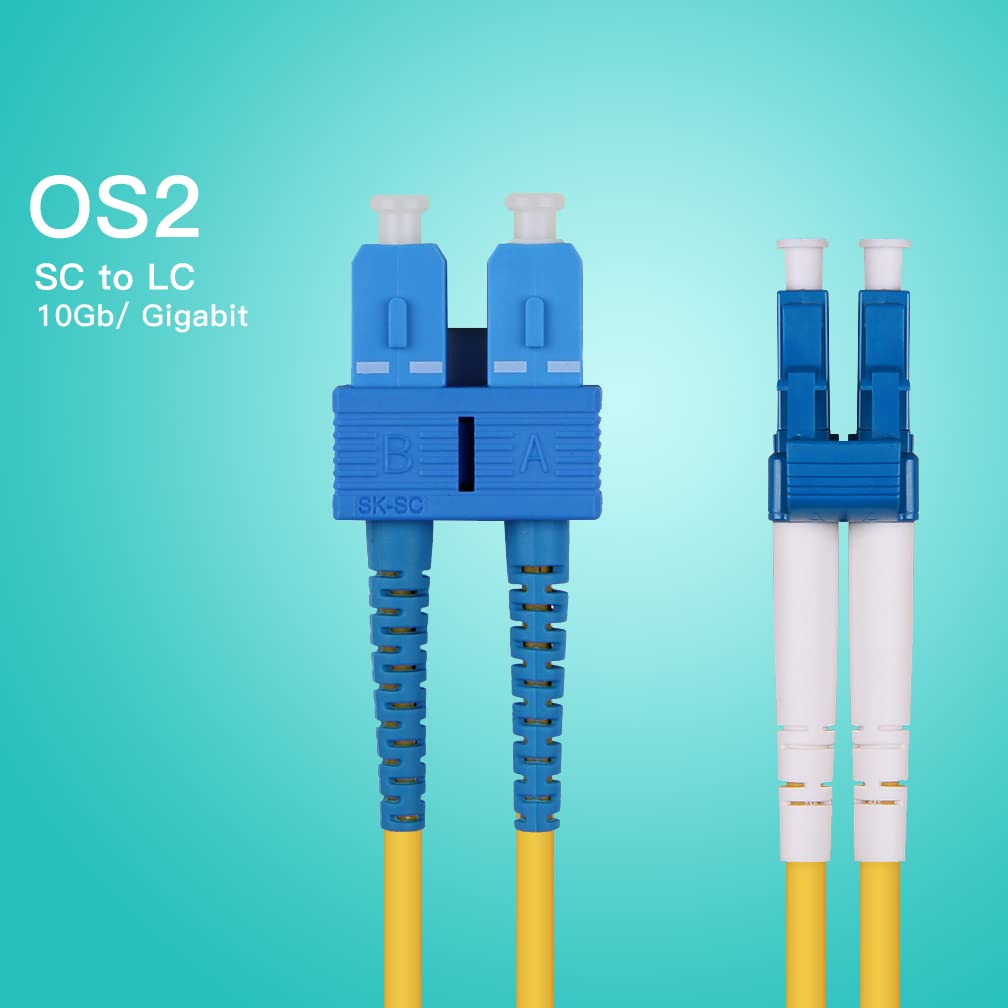

• Connector Geometry
  SC and LC connectors utilize high-precision ceramic ferrules for stable mechanical alignment.

• Optical Integrity

  • Insertion loss remains below 0.3dB for efficient light transmission.
  • UPC polishing achieves a return loss greater than 50dB.
  • The 9/125µm core supports 10G, 40G, and 100G Ethernet protocols.

• LSZH Construction
  The low smoke zero halogen jacket limits toxic emissions during high-heat exposure.

• Environmental Compliance

  • Operating temperature range spans from -20°C to +70°C.
  • The assembly complies with TIA-568-C.3 and RoHS standards.

Specifications

What’s in the Box

• 1 x 3m SC-LC Singlemode OS2 Patch Cable

• Protective Dust Caps

Why Choose SC-LC Singlemode Fiber Cable

• The 3-meter singlemode link provides the necessary reach for standard rack-to-rack patching operations.

• It maintains a 30mm minimum bend radius to prevent macro-bending losses during installation.

• This optical jumper withstands 500 mating cycles without performance degradation. Additionally, the LSZH jacket ensures safety in enclosed spaces.

• Technical teams utilize the yellow jacket for immediate identification of singlemode infrastructure. However, users must maintain connector cleanliness to ensure optimal performance.

• The SC-LC interface bridges the gap between different hardware form factors. It provides a reliable solution for high-density networking requirements.

• Every cable undergoes factory testing to ensure it meets specified attenuation limits. This reduces troubleshooting time during initial network deployments.
