OEM 8-Core Outdoor OM3 Multimode Fiber Cable

OEM 8-Core OM3 Outdoor Cable

The OEM 8-Core OM3 Fiber provides high-bandwidth data transmission for demanding campus and industrial network backbones. This laser-optimized multimode optical medium supports 10 Gigabit Ethernet applications over distances up to 300 meters. It utilizes a 50/125 micron core design to minimize signal attenuation and maximize throughput. The loose tube construction allows the glass strands to move freely within a gel-filled buffer tube to prevent mechanical strain. This architecture protects the internal components from thermal expansion and contraction in external environments. Network engineers deploy this solution for vertical backbones and horizontal links between buildings. The assembly incorporates water-blocking technology to maintain signal integrity in damp underground conduits. Its rugged outer sheath ensures reliable performance across a wide range of climatic conditions.

Key Features

• Optical Performance
  The laser-optimized glass supports 10Gbps transmission speeds with an effective modal bandwidth of 2000 MHz*km at 850nm.

• Environmental Durability

  • High-density polyethylene jacket resists solar degradation and environmental stress cracking.
  • Operational temperature range spans from -40°C to +70°C for extreme weather resilience.

• Moisture Protection

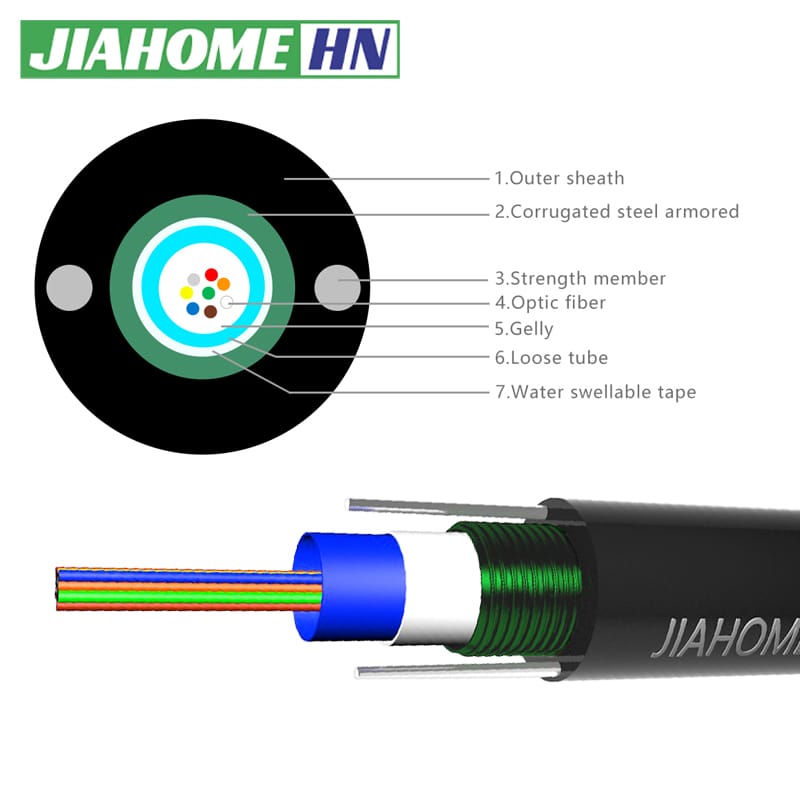

  Internal gel-filling and water-swellable tape prevent moisture ingress and longitudinal water travel within the cable core.

• Mechanical Strength

  • Aramid yarn strength members provide high tensile resistance during difficult cable pulls.
  • The loose tube design isolates fibers from external physical pressures and crushing forces.

• Standard Compliance
  This product meets TIA/EIA-568.3-D and ISO/IEC 11801 standards for high-performance optical fiber cabling.

Specifications

What’s in the Box

• OEM 8-Core Outdoor OM3 Multimode Fiber Cable (per Meter)

Why Choose OEM 8-Core OM3 Outdoor Cable

• The 8-strand optical assembly supports future-proof network scalability for high-density data requirements.

• It allows for multiple 10Gbps channels or redundant failover paths in critical infrastructure links.

• The UV-stabilized outer jacket withstands moisture and underground conduit pressures without degrading.

• This media simplifies termination with standard LC or SC connectors used in modern network hardware.

• Choosing this optical solution ensures low latency for critical data center interconnects and campus backbones.
