OEM 8 Core Outdoor Singlemode OS2 Fiber Cable

OEM Outdoor OS2 Cable

The OEM 8 Core Fiber provides high-density optical connectivity for demanding external telecommunications environments. This OS2 singlemode solution utilizes a 9/125 micron glass core to maintain signal integrity over significant distances. It adheres to the G.652.D international standard. This ensures zero water peak performance across the entire spectrum. Network engineers deploy this cable to establish backbone links between buildings or remote nodes. The 8-strand configuration allows for multiple duplex circuits within a single pull. It supports high-speed protocols including 10Gbps, 40Gbps, and 100Gbps Ethernet. Each fiber strand is color-coded according to TIA/EIA-598 standards. This simplifies identification during splicing or termination procedures.

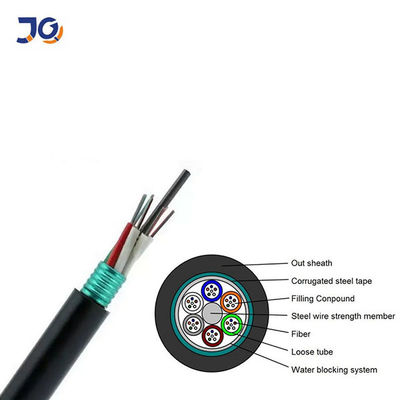

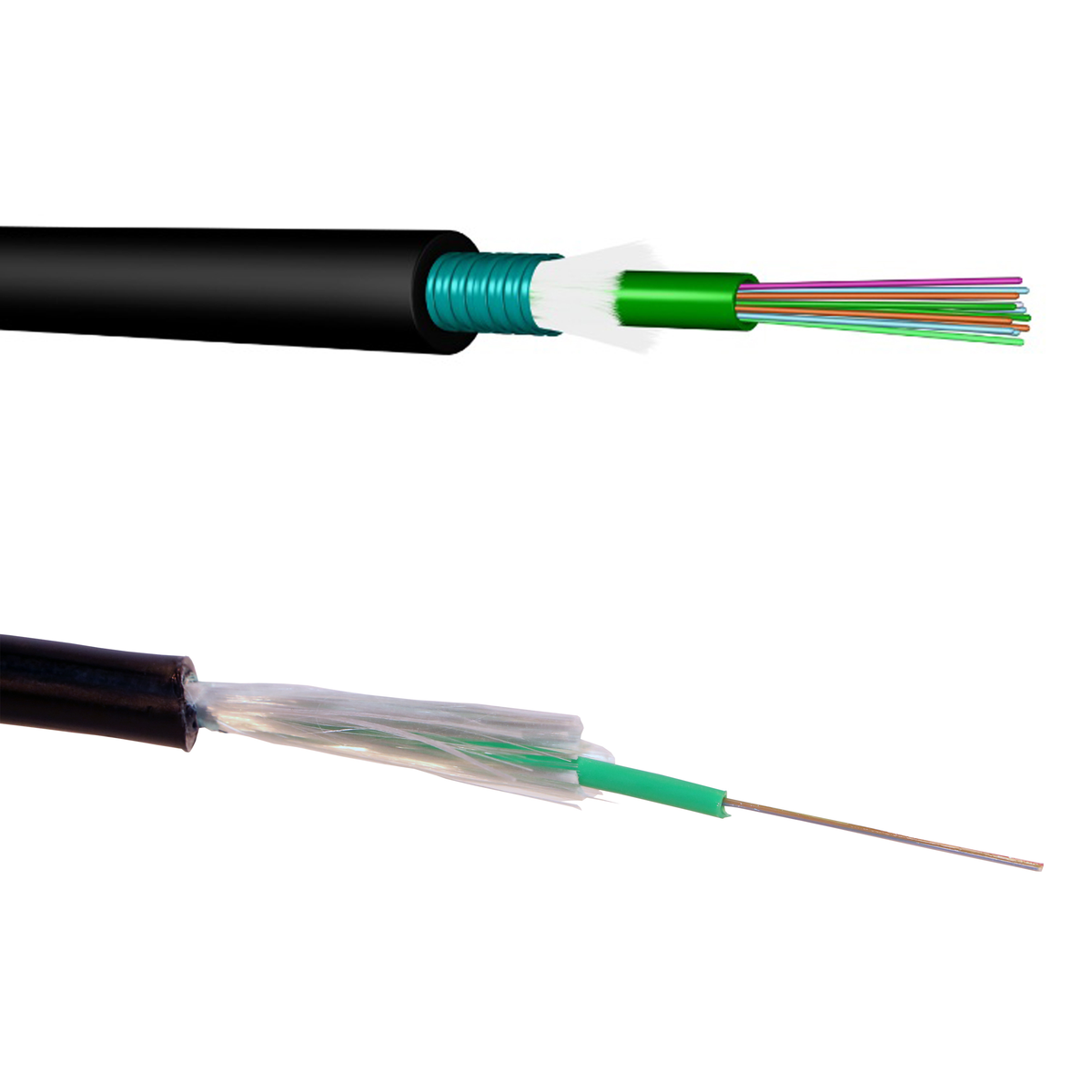

The internal architecture features a loose tube design. This construction protects the delicate glass fibers from mechanical stress. A water-blocking gel fills the tubes to prevent moisture migration. Moisture ingress can cause hydrogen-induced attenuation in optical fibers. The central strength member consists of a dielectric Fiberglass Reinforced Plastic rod. This component absorbs tensile loads during installation. It prevents the fiber strands from stretching or breaking. The cable remains lightweight despite its high strand count. This makes it suitable for both duct installations and aerial deployments using appropriate lashing techniques.

The outer layer consists of a robust High-Density Polyethylene jacket. This material offers superior resistance to ultraviolet radiation and environmental stress cracking. It withstands extreme temperature fluctuations common in outdoor settings. The jacket provides a low-friction surface for easier pulling through conduits. It also resists chemicals and oils found in industrial or underground environments. The cable maintains a consistent bend radius to prevent macro-bending losses. Proper installation requires adherence to the minimum dynamic bend radius of 20 times the cable diameter. Static installations allow for a tighter radius of 10 times the diameter.

Optical performance remains stable across the 1310nm and 1550nm windows. Attenuation levels typically do not exceed 0.36 dB/km at 1310nm. At 1550nm, the loss drops to approximately 0.22 dB/km. These specifications facilitate long-haul transmissions exceeding 10 kilometers without active amplification. The cable is sold per meter to accommodate specific project requirements. It integrates seamlessly with standard patch panels and splice closures. Procurement managers value this product for its balance of high strand density and environmental durability.

Key Features

• Optical Performance
  The cable maintains low attenuation rates of 0.36 dB/km at 1310nm and 0.22 dB/km at 1550nm.

• Environmental Protection

  • UV-resistant HDPE jacket prevents degradation from sunlight.
  • Water-blocking gel-filled tubes stop moisture ingress.
  • Operating temperature range spans from -40°C to +70°C.

• Mechanical Strength
  A central FRP strength member provides high tensile resistance during cable pulls.

• Standard Compliance

  • ITU-T G.652.D compliant glass ensures zero water peak.
  • TIA/EIA-598 color coding simplifies fiber identification.

Specifications

What’s in the Box

• OEM 8 Core Outdoor Singlemode OS2 Fiber Cable (Quantity per Meter)

Why Choose OEM Outdoor OS2 Cable

• High-density 8-strand glass configuration maximizes bandwidth efficiency in limited conduit space.

• G.652.D compliant singlemode fibers provide future-proof support for 100G networking protocols.

• Rugged polyethylene jacketing ensures long-term reliability in harsh outdoor and underground environments.

• Dielectric construction eliminates the need for grounding and prevents electromagnetic interference.
