OEM LC Adapter Duplex Singlemode Zirconia Sleeve
WhatsApp for availability
OEM LC Adapter Duplex Singlemode Zirconia Sleeve
| Feature | Value |
|---|---|
| Interface | LC to LC Duplex |
| Fiber Mode | Singlemode (SM) |
| Sleeve | Zirconia Ceramic |
| Loss | ≤0.2dB |
Shipping & Delivery
Fast delivery
Your order will be deliver to the specified address
15 - 45 minutes
From KES 300
Warranty 1 year
Free 30-Day returns
Description
OEM LC Duplex Adapter
The OEM LC Adapter Duplex provides high-precision alignment for single-mode and multimode fiber optic networks. This component utilizes high-grade zirconia ceramic sleeves to ensure low signal loss across all connections. It supports high-density patching environments within modern data centers. Engineers use these components in telecommunication hubs and enterprise server rooms. The housing features a snap-in mechanism for rapid installation into standardized patch panels. Integrated metal clips secure the unit into the mounting plate to prevent movement. This optical coupler meets TIA/EIA-604-10 standards for intermateability. It provides reliable performance across wide temperature ranges in industrial settings. The duplex design allows two fiber connections within a single footprint to maximize rack space.
Key Features
Precision Zirconia Sleeve
The internal ceramic sleeve maintains exact concentricity between fiber cores to minimize signal attenuation.High-Density Architecture
- Small form factor design doubles port density compared to standard SC interfaces.
- Side-by-side configuration supports duplex fiber patch cables effectively.
Durable Housing Construction
Polymeric materials provide resistance to chemical exposure and mechanical stress during routine maintenance.Standardized Mounting Interface
- Integrated stainless steel mounting clips ensure a secure fit without additional hardware.
- Compatible with all standard LC-style rectangular cutouts in distribution frames.
Specifications
| Feature | Specification |
|---|---|
| Adapter Type | LC-LC Duplex |
| Sleeve Material | Zirconia Ceramic |
| Housing Material | UL 94V-0 Rated Thermoplastic |
| Insertion Loss | ≤ 0.20 dB |
| Mating Durability | 1,000 Matings |
| Operating Temp | -40°C to +85°C |
| Compliance | RoHS, TIA/EIA-604-10 |

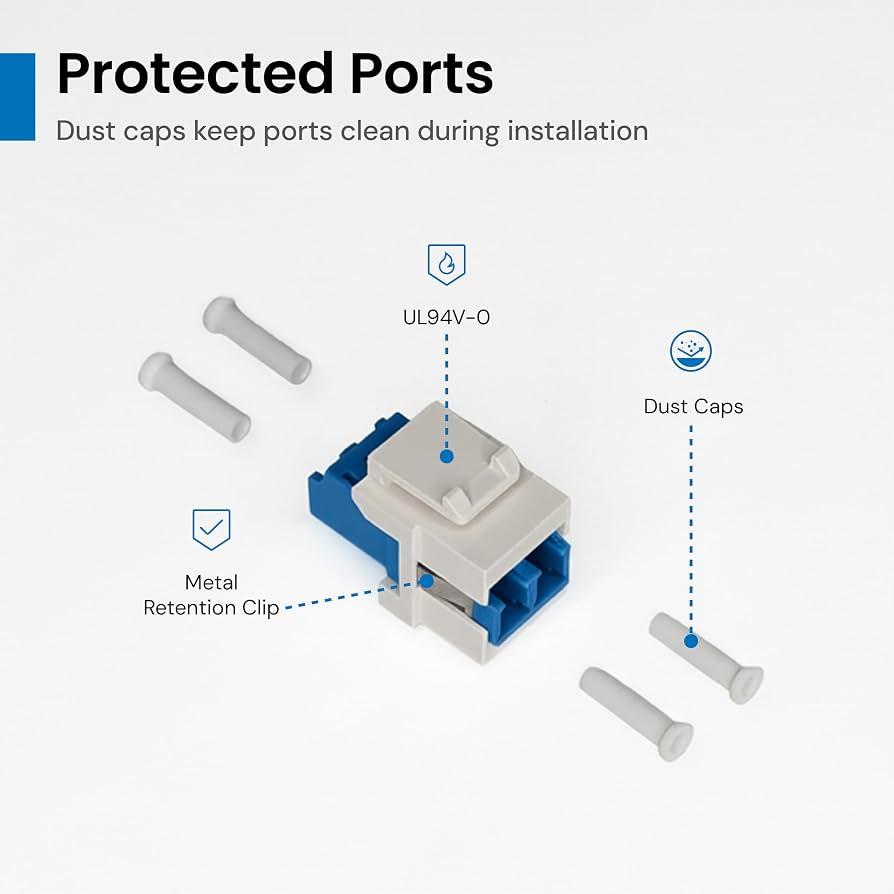

What’s in the Box
LC Duplex Fiber Adapter
Protective Dust Caps
Why Choose OEM LC Duplex Adapter
Low insertion loss values prevent signal degradation in critical long-haul optical links.
The zirconia sleeve maintains core alignment over one thousand mating cycles for long-term reliability.
Blue color coding simplifies identification within single-mode infrastructures during cable management tasks.
Standard dimensions allow easy integration into existing rackmount panels and wall-mount enclosures.
High return loss figures ensure network stability by reducing back-reflections in high-speed circuits.
Additionally, the snap-in latching mechanism prevents accidental disconnection from vibration or cable tension.
Brian Mwangi (verified owner) –
Finally found adapters with proper zirconia sleeves that don’t cost a fortune. Used these to replace some worn-out ones in our Nairobi office and the insertion loss is minimal. Very steady connection for our singlemode backbone. The build quality feels premium compared to the generic ones I’ve seen in the CBD.
Faith Chepngetich (verified owner) –
Good quality. The blue housing is standard for SM and they snap into the patch panel without any drama. Arrived in Eldoret the next day after ordering. Packaging was secure.
Juma Omondi (verified owner) –
Simple and effective. Does the job perfectly for our fiber terminations in the server room.
Kevin Otieno (verified owner) –
The performance is top notch but the plastic dust caps are a bit loose on a few units in the batch, they kept falling off while I was organizing the rack. However, the adapter itself is very solid and the connection is tight. Good value for the price point.
Amina Hassan (verified owner) –
These are much better than the no-name adapters we’ve been using. You can tell the zirconia alignment is precise because the dB drop was negligible when we tested the link after installation. Perfect for any local ISP or office network setup.
