4 Core Outdoor Multimode OM3 Fiber Optic Cable, 50/125 µm, Per Meter
Limited Stock

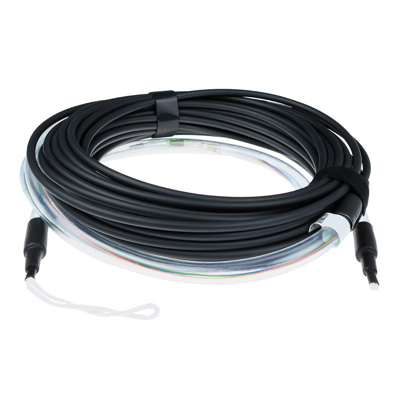

4 Core Outdoor Multimode OM3 Fiber Optic Cable, 50/125 µm, Per Meter
| Fiber count | 4 |
| Fiber category | OM3 multimode |
| Core / cladding | 50/125 µm |
| Construction | Loose tube, gel-filled |
| Attenuation at 850 nm | ≤3.0 dB/km |
| Attenuation at 1300 nm | ≤1.0 dB/km |
| Operating temperature | -40 °C to +70 °C |
| Supply unit | Per meter |
Same day Delivery
Delivery
We deliver to the address you provide. Nairobi is often same-day on business days.
Across the country
Delivery outside CBD starts from KES 300
Warranty 1 year
72-hour (3-day) returns
Description
Outdoor-Rated Multimode Fiber for Backbone Runs
The OM3 Fiber Optic Cable is a four-core outdoor multimode cable supplied per meter. It uses 50/125 µm graded-index fiber rated for 10GBASE-SR links up to 300 m. Each core carries OM3 laser-optimized performance for backbone and campus runs.
The loose-tube construction holds four fibers in a gel-filled central tube. Water-blocking yarns and a UV-stabilized outer jacket protect the bundle outdoors. Attenuation is 3.0 dB/km at 850 nm and 1.0 dB/km at 1300 nm. Bandwidth reaches 1500 MHz·km at 850 nm and 500 MHz·km at 1300 nm.
The cable installs in ducts, trays and aerial lashed routes. Bend radius is 20 times the outer diameter under load and 10 times when static. Tensile load reaches 400 N during installation. Operating temperature spans -40 °C to +70 °C, and the sheath resists UV exposure and moisture ingress.
Key Features
Four-Core OM3 Construction
Four 50/125 µm fibers sit in one tube for duplex and parallel optics over short backbone spans.Loose-Tube Design
- Gel-filled central tube buffers the fibers against strain
- Water-blocking yarns limit moisture migration along the core
Laser-Optimized Core Profile
The graded-index profile supports 10GBASE-SR transmission to 300 m.Outdoor Jacket
A UV-stabilized sheath tolerates sunlight, rain and temperature cycling on external routes.Per-Meter Supply
The cable is cut to the ordered length, which reduces offcut waste on short runs.Wide Thermal Window
Operation from -40 °C to +70 °C covers exposed trays and unheated enclosures.Standards-Based Build
The construction follows IEC 60794 and suits ISO/IEC 11801 channel design.
Specifications
| Feature | Specification |
|---|---|
| Fiber count | 4 |
| Fiber category | OM3 multimode |
| Core / cladding | 50/125 µm |
| Fiber profile | Graded-index, laser-optimized |
| Construction | Loose tube, gel-filled |
| Strength members | Water-blocking yarns |
| Outer jacket | UV-stabilized, halogen-free |
| Attenuation at 850 nm | ≤3.0 dB/km |
| Attenuation at 1300 nm | ≤1.0 dB/km |
| Bandwidth at 850 nm | 1500 MHz·km |
| Bandwidth at 1300 nm | 500 MHz·km |
| Bend radius, loaded | 20 x outer diameter |
| Bend radius, static | 10 x outer diameter |
| Tensile load, installation | 400 N |
| Operating temperature | -40 °C to +70 °C |
| Installation temperature | -5 °C to +50 °C |
| Supply unit | Per meter |
| Application | Outdoor duct, tray and aerial lashed routes |
| Standards | IEC 60794, ISO/IEC 11801 |
| Sheath colour | Black |
What’s in the Box
Cable cut to the ordered length
Reel or coil as ordered
Why Choose This OM3 Cable
Four fibers in one sheath simplify duplex and parallel uplinks between cabinets.
The loose-tube core isolates the glass from pulling strain during installation.
Water-blocking yarns reduce moisture risk in ducts and buried conduits.
Per-meter ordering matches the actual route length and limits surplus stock.
The UV-stabilized jacket suits aerial spans and exposed external trays.
Esther Wanjiku (verified owner) –
Per meter cut was accurate, cable arrived as ordered.
Victor Omondi (verified owner) –
Solid jacket.
Ruth Chebet (verified owner) –
Spliced fine, terminated without issues.
Paul Githinji (verified owner) –
Cable is thick, good for outdoor runs.
