TP-Link SM5110-SR 10GBase-SR Multi-Mode SFP+ LC Transceiver
Original price was: KSh 8,275.86.KSh 6,206.90Current price is: KSh 6,206.90. ex VAT
TP-Link SM5110-SR 10GBase-SR Multi-Mode SFP+ LC Transceiver
| Feature | Specification |
|---|---|
| Data Rate | 10.3 Gbps |
| Wavelength | 850 nm |
| Fiber Type | Multi-Mode (MMF) |
| Max Distance | 300m (OM3) / 400m (OM4) |
| Connector | LC Duplex |
Shipping & Delivery
Fast delivery
Your order will be deliver to the specified address
15 - 45 minutes
From KES 300
Warranty 1 year
Free 30-Day returns
Description

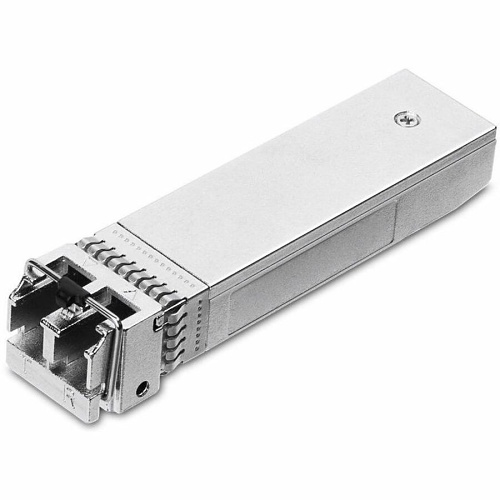

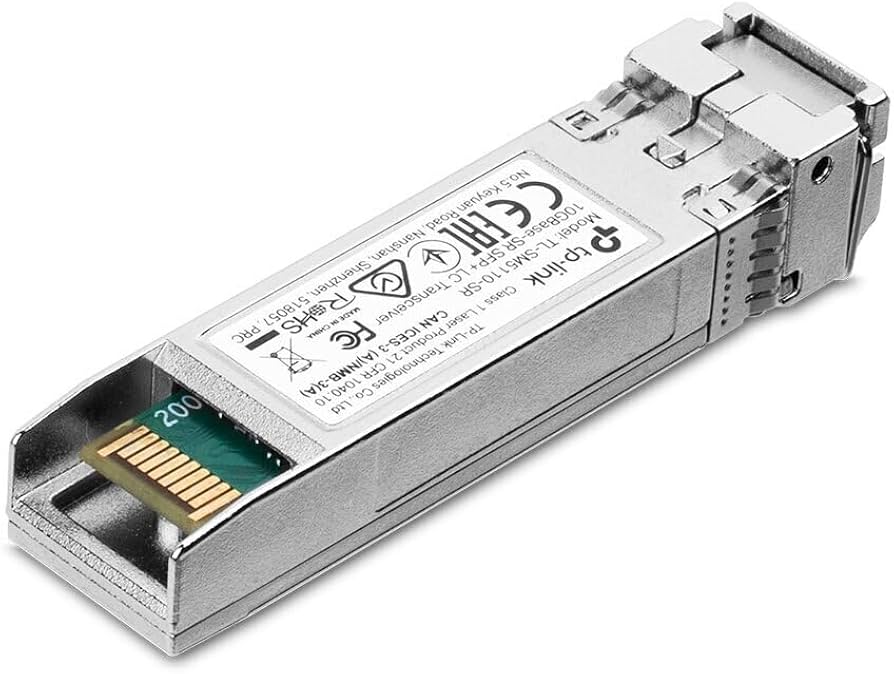

SM5110-SR 10G SFP+
The TP-Link SM5110-SR 10GBase-SR provides high-performance 10 Gigabit Ethernet connectivity over multi-mode fiber infrastructure. This short-range transceiver operates at a nominal wavelength of 850nm. It utilizes a Vertical-Cavity Surface-Emitting Laser (VCSEL) for efficient data transmission. The module supports link lengths up to 300 meters on 2000 MHz*km OM3 cabling. Using 4700 MHz*km OM4 fiber extends the reach to 400 meters. This SFP+ unit facilitates high-bandwidth uplinks for enterprise switches. It integrates directly into standard SFP+ slots found on routers and network interface cards. The device meets the electrical interface requirements of the SFF-8431 specification. It also complies with the IEEE 802.3ae 10GBASE-SR standard for physical layer signaling.
Key Features
Multi-Mode Fiber Compatibility
The module utilizes an LC duplex connector for reliable physical layer connection to multi-mode optical patch cords.Digital Diagnostic Monitoring (DDM)
- Provides real-time reporting of internal module temperature.
- Monitors transceiver supply voltage and laser bias current.
- Tracks transmitted and received optical power levels for troubleshooting.
Hot-Swappable Form Factor
Engineers can install or remove the transceiver without interrupting the operation of the host networking device.High-Speed 10Gbps Throughput
This hardware supports data rates up to 10.3 Gbps to eliminate bottlenecks in core network backbones.
Specifications
| Feature | Specification |
|---|---|
| Form Factor | SFP+ |
| Wavelength | 850 nm |
| Fiber Type | 50/125μm Multi-Mode |
| Max Cable Distance | 300m (OM3) / 400m (OM4) |
| Data Rate | 10.3 Gbps |
| Connector Type | LC Duplex |
| Transmission Power | -7.3 to -1 dBm |
| Receiver Sensitivity | -11.1 dBm |
| Operating Temperature | 0–70 °C (32–158 °F) |
What’s in the Box
SM5110-SR SFP+ Module
Installation Guide
Why Choose SM5110-SR
Low power consumption profile reduces the overall thermal load on high-density switch chassis and rack environments.
Full MSA compliance ensures interoperability with a wide range of third-party networking equipment and fiber components.
The integrated pull-to-release latching mechanism simplifies removal in tight spaces without requiring specialized extraction tools.
Strict adherence to SFF-8472 management interface standards allows for precise telemetry through the host device software.
