OEM 4-Core Outdoor Single Mode OS2 Fiber Cable
WhatsApp for availability
OEM 4-Core Outdoor Single Mode OS2 Fiber Cable
| Feature | Specification |
|---|---|
| Fiber Type | OS2 Single Mode |
| Core Count | 4 Core |
| Jacket | HDPE Outdoor |
| Compliance | G.652.D |
Shipping & Delivery
Fast delivery
Your order will be deliver to the specified address
15 - 45 minutes
From KES 300
Warranty 1 year
Free 30-Day returns
Description
OEM 4-Core OS2 Outdoor Fiber

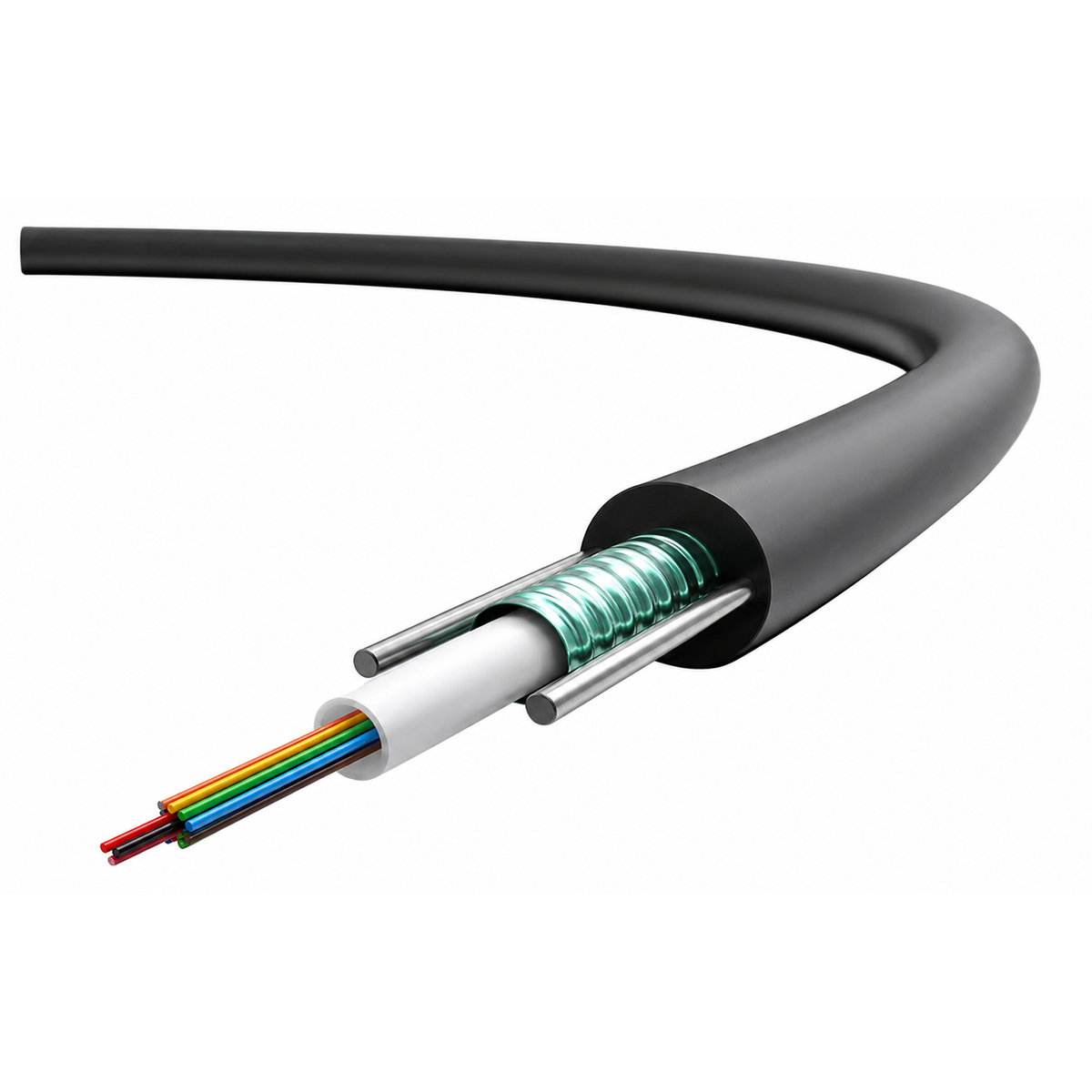

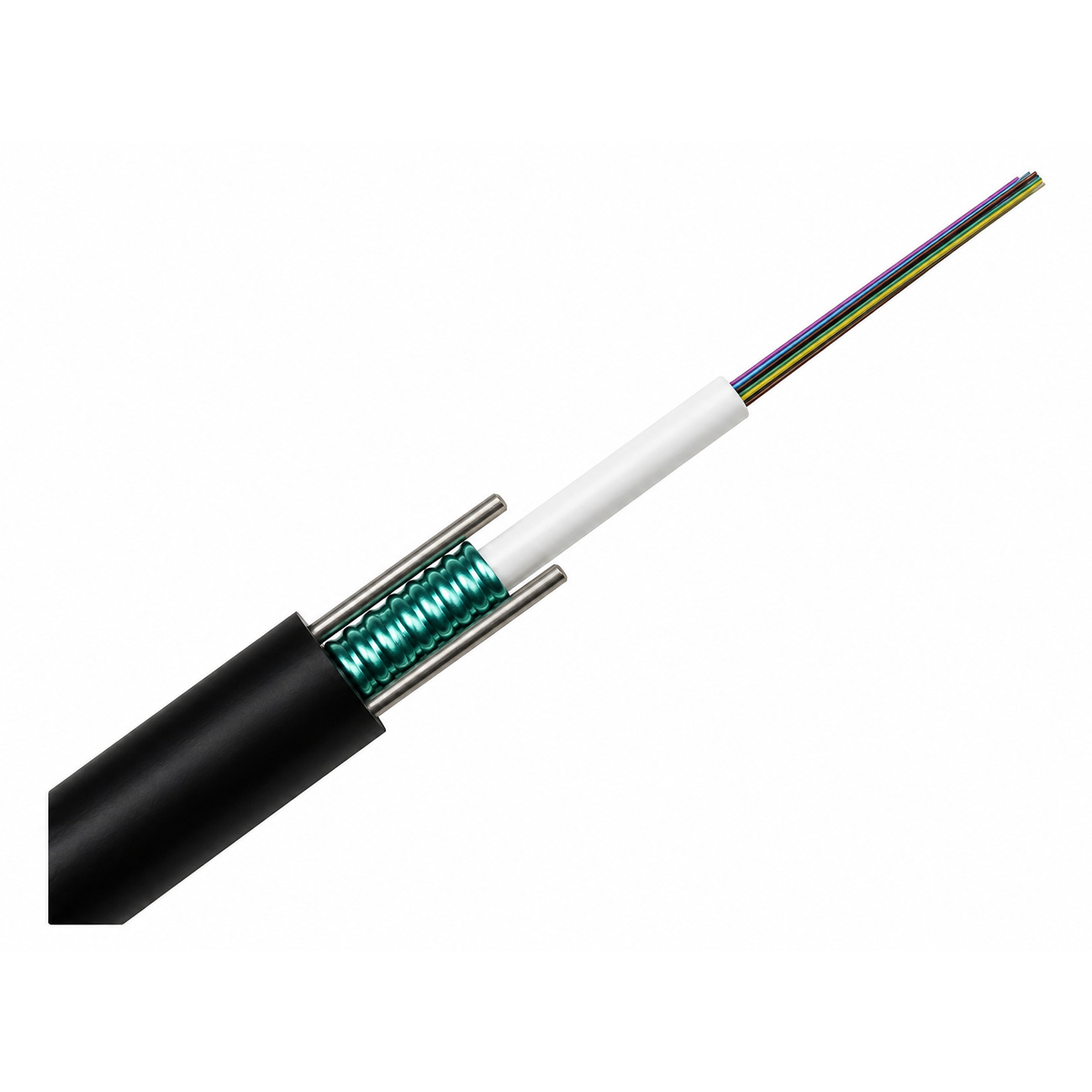

The OEM 4-Core OS2 Cable provides high-bandwidth data transmission for long-range outdoor networking infrastructure. This optical medium supports 10Gbps, 40Gbps, and 100Gbps applications across extended distances. It adheres strictly to the ITU-T G.652.D standard. This compliance ensures low attenuation at the 1383nm water peak region. The construction features a central loose tube design. This tube contains four color-coded optical fibers for easy identification. Thixotropic gel fills the buffer tube to prevent moisture migration. Water-blocking glass yarns provide a secondary layer of protection against humidity. These yarns also act as peripheral strength members for the assembly. The outer diameter remains compact to simplify installation in crowded conduits. Technicians can deploy this cable in duct or lashed aerial environments. The high-density polyethylene jacket resists ultraviolet radiation effectively. It also withstands chemical exposure in underground duct systems. Single-mode glass supports wave division multiplexing for future bandwidth expansion. This allows for increased capacity without replacing the physical layer infrastructure. The cable maintains a manageable bend radius during installation and operation.
Key Features
ITU-T G.652.D Compliant Glass
The low water peak fiber chemistry minimizes signal loss across the entire E-band spectrum.HDPE Outer Sheath
A rugged high-density polyethylene jacket provides mechanical protection against abrasion and environmental stress.Water-Blocking Technology
- Gel-filled buffer tubes prevent longitudinal water penetration
- Swellable glass yarns provide moisture protection and tensile strength
Color-Coded Core Identification
Standardized fiber coloring simplifies splicing and termination in distribution enclosures.
Specifications
| Feature | Specification |
|---|---|
| Fiber Type | OS2 Single Mode |
| Core Count | 4 Core |
| Compliance | ITU-T G.652.D, IEC 60794 |
| Attenuation @ 1310nm | ≤ 0.35 dB/km |
| Attenuation @ 1550nm | ≤ 0.22 dB/km |
| Jacket Material | HDPE (UV Resistant) |
| Tensile Strength | 1500N (Short Term) |
| Operating Temp | -40°C to +70°C |
What’s in the Box
OEM 4-Core OS2 Outdoor Fiber Cable (Supplied per meter)
Why Choose OEM 4-Core OS2 Outdoor Fiber
This four-strand single-mode solution provides superior signal integrity for campus backbones.
The ruggedized exterior ensures long-term reliability in harsh external climates. Additionally, the low-loss glass supports high-speed protocols over several kilometers.
Standardized G.652.D fibers ensure compatibility with existing network hardware and fusion splicers. However, proper bend radius must be maintained during installation to prevent macro-bending losses.
Silas Wekesa (verified owner) –
The cable itself is 5-star quality, very sturdy for outdoor use and the 4 cores are well protected. However, the wooden drum it came on was slightly splintered, making it a bit hectic to unroll smoothly. Performance-wise though, it’s perfect for our long-distance link.
Kevin Otieno (verified owner) –
The outer jacket on this 4-core is quite tough, which is exactly what I needed for a run between two buildings in Westlands. We pulled about 200 meters and the signal loss is negligible. Good OS2 cable for the price if you want something reliable for outdoor piping.
Mary Njeri (verified owner) –
Standard 4-core fiber that does the job well. We used this for our CCTV backhaul and the single mode OS2 specs are spot on. It’s much more affordable than the big brand names but performs exactly the same. Litmus delivered within the same day to our office in Upper Hill which helped us beat our deadline.
Brian Kipchumba (verified owner) –
Good quality 4-core cable. Terminated easily and speeds are stable.
