12 Port SC/UPC Duplex OM3 ODF Panel – 1U Sliding Tray with MM Adapters and Pigtails

Loaded 1U Fibre Distribution Panel for OM3 Backbones

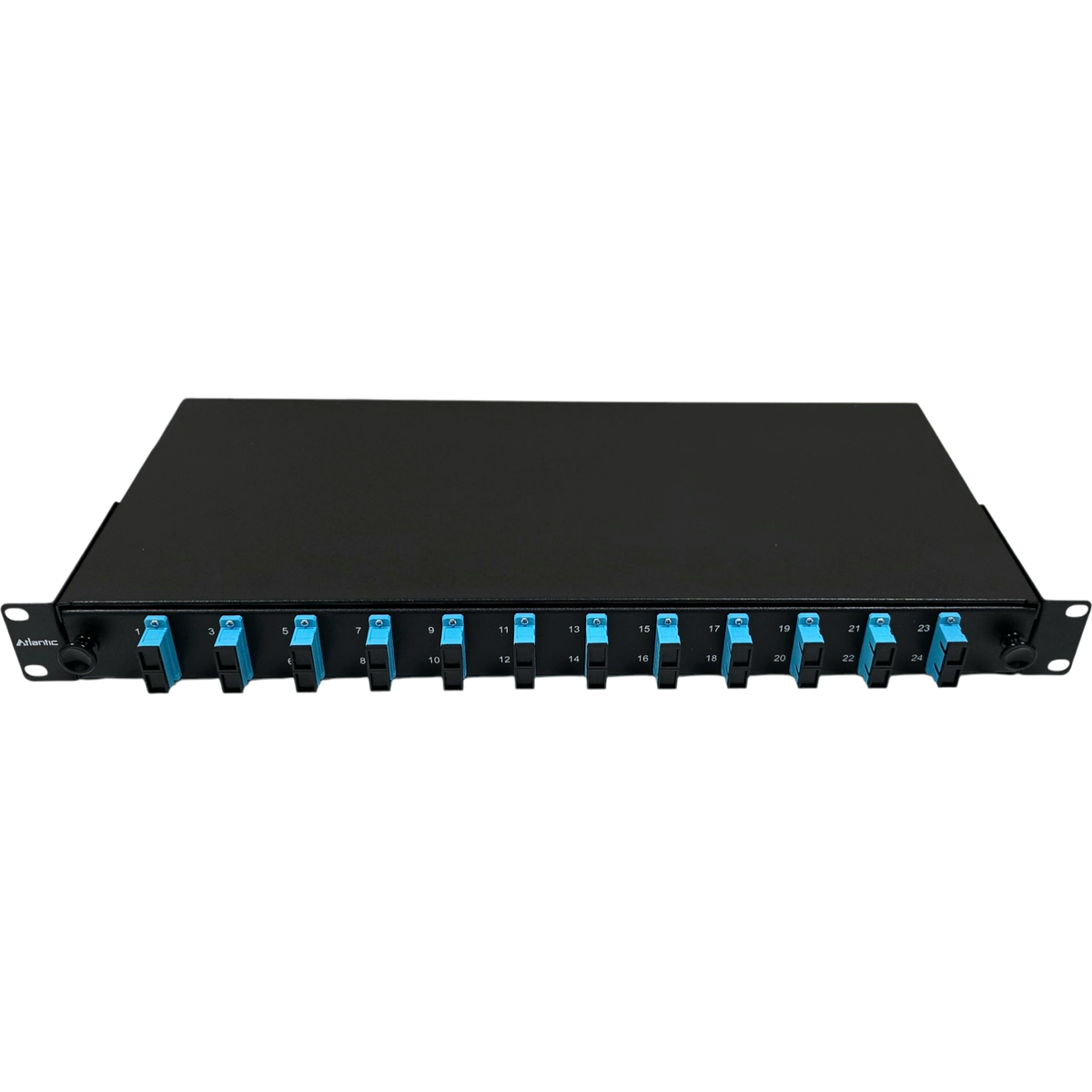

The 12 port SC/UPC ODF is a pre-terminated 19-inch panel that ships with duplex multimode adapters and colour-coded pigtails already spliced. It mounts in 1U of rack space and presents 24 fibre terminations through twelve SC duplex couplers. The slide-out tray gives technicians front access to the splice cassette without removing the housing.

Each coupler uses a ceramic alignment sleeve rated for 1,000 mating cycles, with insertion loss held to 0.2 dB or less. The OM3 pigtails use 50/125 µm laser-optimised fibre with a 900 µm buffered coating and an aqua LSZH jacket. Return loss meets a 25 dB minimum at the UPC interface.

The 480 x 243 x 44 mm steel housing includes a splice tray, two PG13.5 cable clamps and six cable ties. Four sets of M6 screws secure the panel to a standard 19-inch rail. Operating range spans -40°C to 85°C, which covers unheated comms rooms and outdoor cabinets.

Channel loss depends on adapter and splice quality. A duplex pair carries 10GBASE-SR to 300 m and 40GBASE-SR4 to 100 m over OM3. The panel supports twelve duplex links, which suits a collapsed backbone between a core switch and two access closets.

Key Features

• Twelve Duplex SC/UPC Couplers
  Ceramic sleeves align each mating pair and hold insertion loss to 0.2 dB maximum.

• Pre-Spliced OM3 Pigtails
  Colour-coded 900 µm buffered tails terminate on SC/UPC connectors and land in the included splice tray.

• 1U Sliding Tray
  The drawer extends forward for splicing and cleaning while the housing stays bolted to the rack.

• Splice Cassette and Cable Management

  • Two PG13.5 cable clamps anchor incoming distribution cable.
  • Six cable ties route buffered fibre without exceeding bend radius.

• Aqua OM3 Fibre Mapping
  The 50/125 µm multimode grade supports 10GBASE-SR to 300 m and matches aqua patch leads.

• 19-Inch Rack Mounting
  Four M6 screw sets fix the 480 mm panel to standard EIA-310 rails.

• Removable Front Plate
  The front plate lifts off for adapter replacement or re-labelling during reconfiguration.

Specifications

What’s in the Box

• 1U loaded ODF housing with 12 duplex SC/UPC adapters

• 24 OM3 pigtails, colour-coded

• Splice tray and cassette cover

• 2x PG13.5 cable clamps

• 6x cable ties

• 4 sets of M6 screws and nuts

Why Choose the 12 Port Panel

• The pre-terminated ODF removes field splicing from the installation schedule and cuts commissioning time.

• Ceramic-sleeve couplers hold loss low across repeated patching in shared racks.

• An aqua OM3 fibre panel matches existing 10G multimode patch leads without re-colouring the cable plant.

• The 1U sliding ODF keeps splice access open while the rack remains cabled.

• A steel housing and -40°C to 85°C rating suit edge cabinets and unheated rooms.
