Ugreen HD178 HDMI 2.0 Fiber Optic Cable 40M Male to Male

Fiber Optic HDMI for Long-Distance 4K Runs

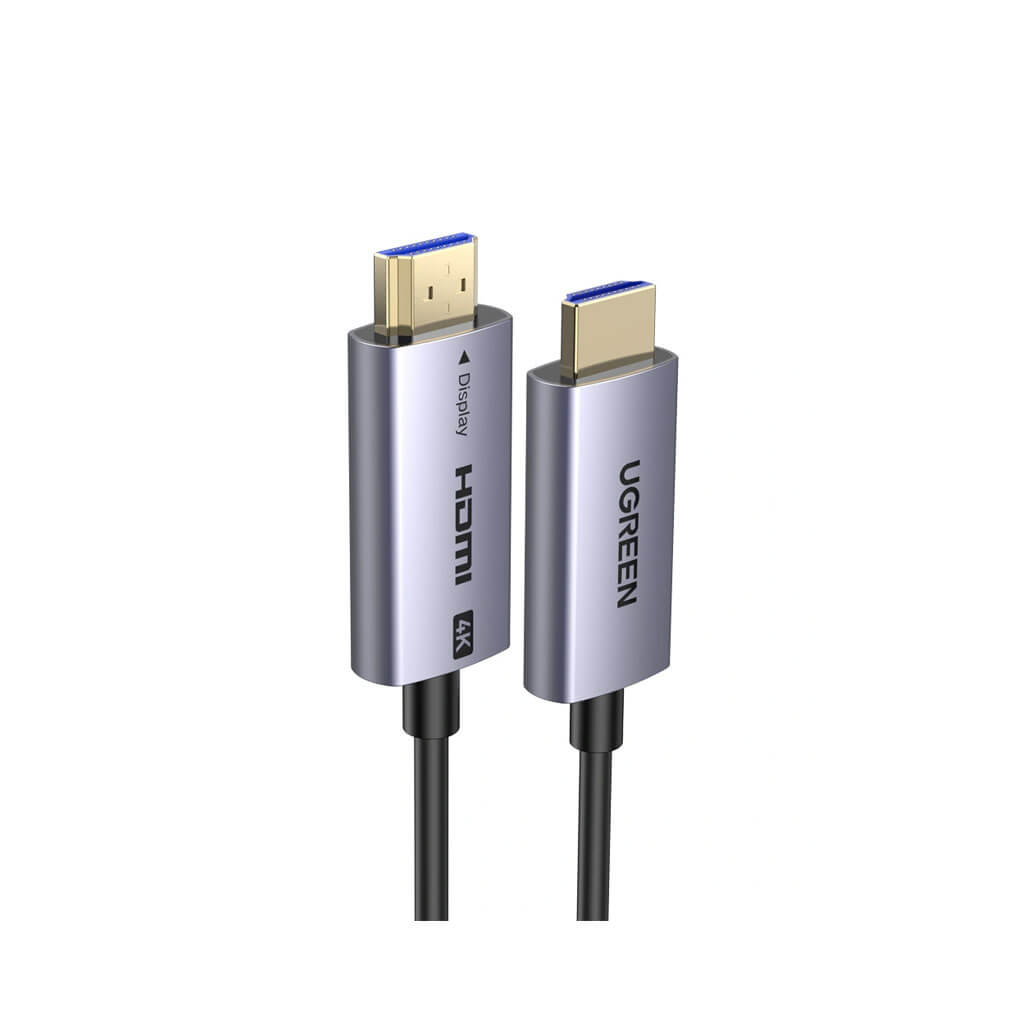

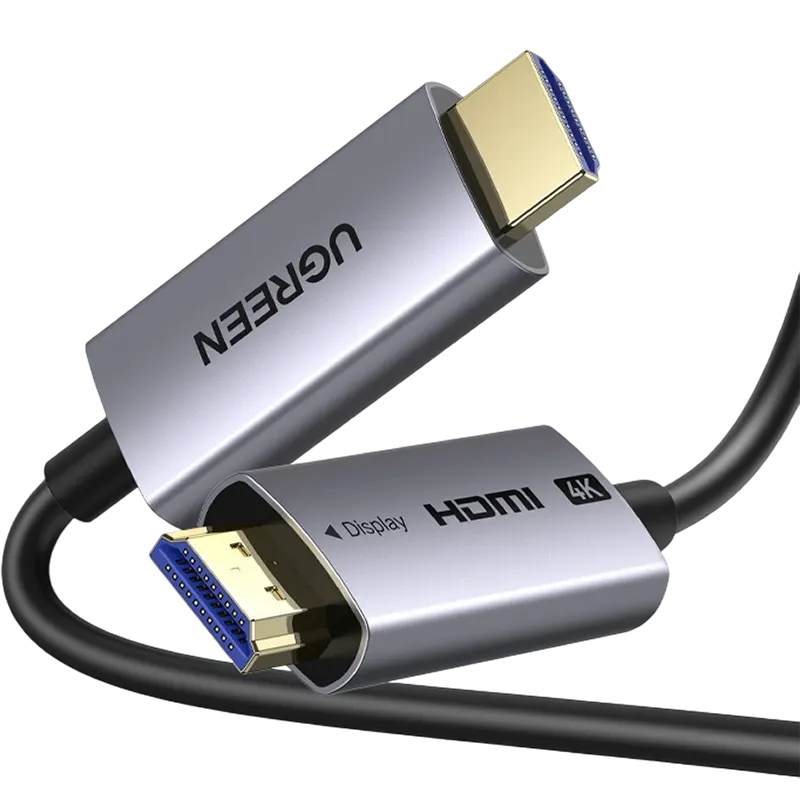

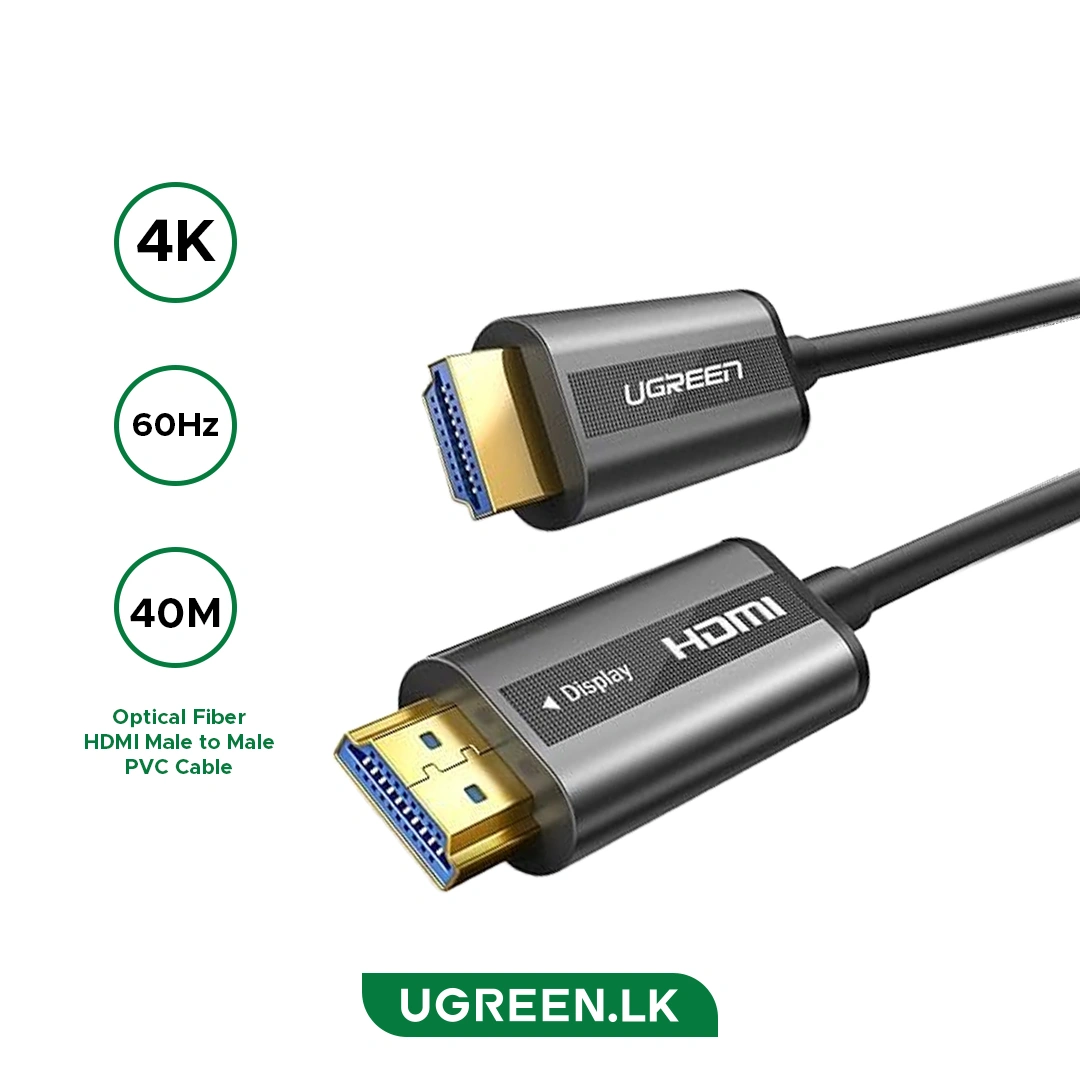

The Ugreen HD178 HDMI cable carries HDMI 2.0 signals across 40 metres using active optical conversion. Four glass fibre cores and seven tinned copper conductors handle the link. Gold-plated Type A plugs terminate each end.

Bandwidth reaches 18Gbps, supporting 3840 x 2160 at 60Hz, 2560 x 1440 at 144Hz and 1080p at 240Hz. The cable passes 48-bit colour depth and 4:4:4 chroma sampling. HDCP 2.2 covers protected content, and HDR10 metadata travels intact. Audio formats include LPCM, AC-3, DTS, DTS-HD Master Audio, Dolby TrueHD and Dolby Atmos.

The assembly draws under 250mW from the source HDMI port. No external power supply or injector is required. Directional labelling marks the source and display ends. The TPE jacket measures 4.2mm in diameter and pulls through 20mm conduit. Operating temperature spans 0°C to 45°C, while storage tolerates -15°C to 75°C.

Key Features

• Active Optical Conversion
  The source plug converts electrical HDMI to light, and the display plug converts it back.

• Full-Length 4K60 Support
  Maintains 3840 x 2160 at 60Hz across the entire 40-metre run without signal dropout.

• Hybrid Conductor Layout

  • Four glass fibre cores for high-speed video
  • Seven tinned copper conductors for power and control
  • 32AWG construction with a 4.2mm outer diameter

• Dual-Layer Shielding
  A zinc alloy die-cast inner shell and aluminium outer housing suppress EMI and RFI.

• Directional Source-to-Display Design
  The cable is unidirectional, so the source plug must connect to the sending device.

• Audio and ARC Support
  Passes multichannel PCM, Dolby TrueHD and DTS-HD Master Audio, with Audio Return Channel enabled.

• Backward Compatibility
  Negotiates with HDMI 1.4 and 1.3 devices, including older laptops, decoders and projectors.

Specifications

What’s in the Box

• Ugreen HD178 HDMI 2.0 fiber optic cable, 40 metres

• User documentation

Why Choose Ugreen HD178

• Optical transmission removes the distance limit that affects copper HDMI runs beyond ten metres.

• No mid-span electronics or power injectors reduce the number of failure points in ceiling and conduit installations.

• The slim 4.2mm profile pulls through tight conduit with less effort than shielded copper cable.

• Gold-plated contacts and a zinc alloy inner shell protect against oxidation and electromagnetic interference.

• Backward compatibility with HDMI 1.4 and 1.3 keeps legacy source and display equipment in service.
