Ugreen HD106 HDMI to DVI Cable 2m 1080p Bi-Directional – Black

Bi-Directional Video Link for Mixed HDMI and DVI Estates

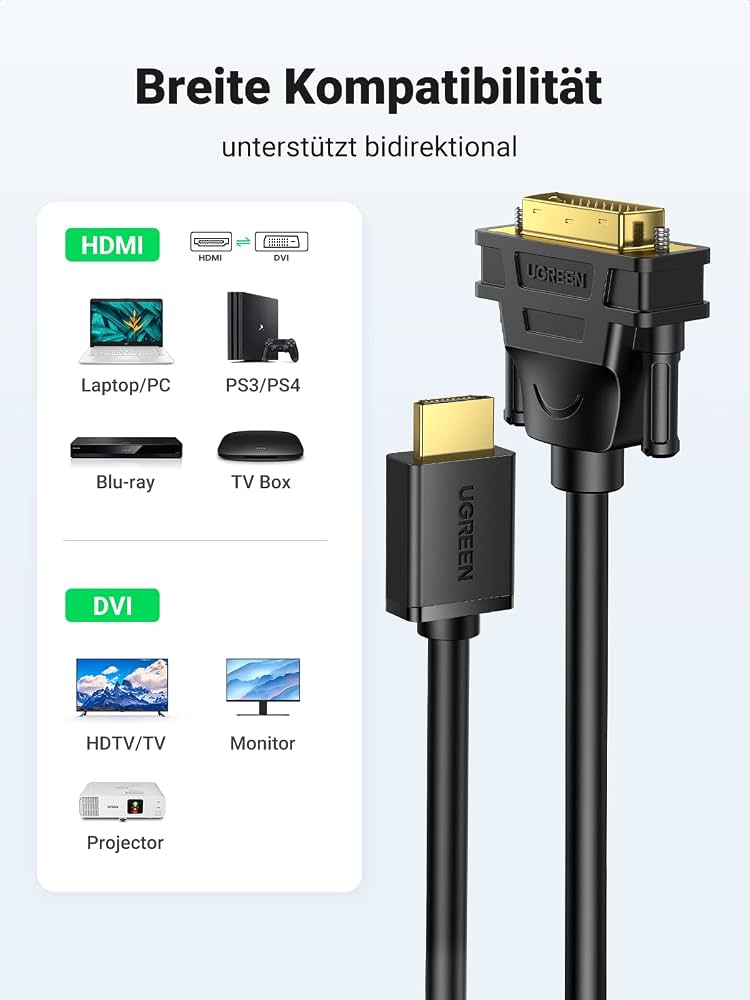

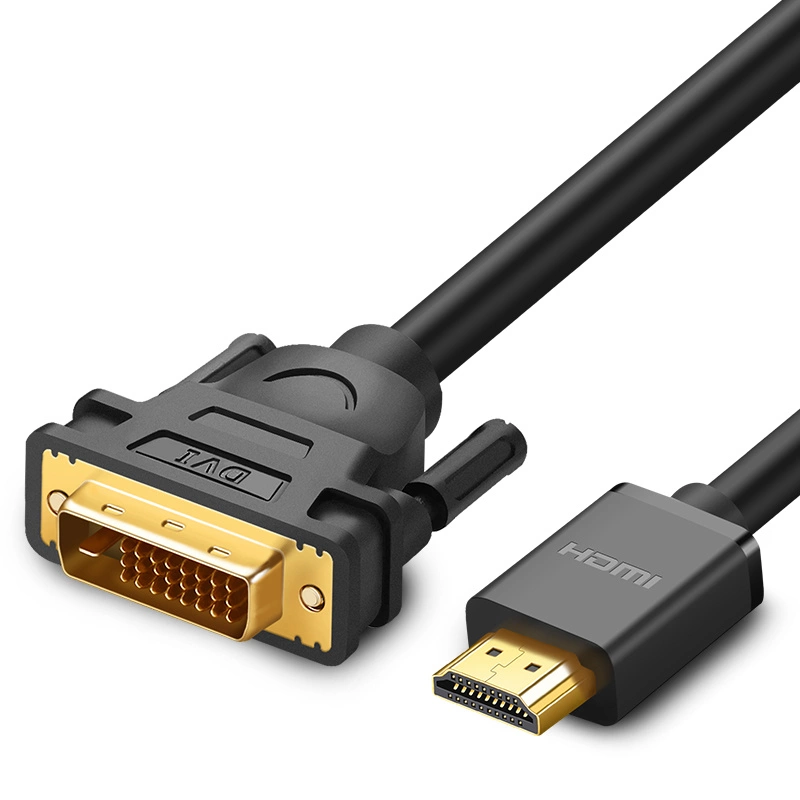

The Ugreen HD106 HDMI DVI cable connects an HDMI source to a DVI-D display, or a DVI source to an HDMI display, without a separate adapter. It carries a single-link digital video signal at up to 1920 x 1080 pixels and 60 Hz. The 2 m assembly suits desk, rack and wall-plate runs where the two connector types sit close together.

The HDMI end uses a standard 19-pin male plug. The DVI end uses a DVI-D 24+1 male plug and accepts DVI-I 24+5 sockets through the same pin arrangement. The cable handles mirror and extend display modes. Audio does not pass over the DVI-D connector, so plan a separate audio path when the display relies on HDMI audio.

Each plug carries 24K gold plating over nickel. The conductor set uses 30 AWG oxygen-free copper with tinned strands and aluminium-mylar shielding. A PVC jacket protects the bundle in fixed installations. The cable is passive and draws no power from either host.

Key Features

• Bi-Directional Signal Path
  Moves video in both directions between HDMI and DVI-D ports without a direction switch.

• Full HD Output
  Supports 1920 x 1080 at 60 Hz and scales down to 1600 x 1200, 1280 x 1024, 1024 x 768 and 800 x 600.

• Connector Compatibility

  • HDMI 19-pin male plug on one end
  • DVI-D 24+1 male plug on the other end
  • DVI-I 24+5 sockets accept the DVI-D plug through the shared pin layout

• Gold-Plated Contacts
  24K gold plating over nickel resists oxidation across repeated mating cycles.

• Triple-Layer Shielding
  Aluminium-mylar foil and braid reduce electromagnetic interference on long cable runs.

• Oxygen-Free Copper Conductors
  30 AWG tinned copper strands lower resistive loss and preserve signal integrity.

• Driver-Free Installation
  Enumerates as a passive video link on Windows, macOS and Linux hosts.

Specifications

What’s in the Box

• HD106 HDMI to DVI-D cable, 2 m, black

• Retail packaging

Why Choose the HD106 Lead

• One cable replaces a separate HDMI-to-DVI adapter and a standard HDMI lead in retrofit projects.

• Bi-directional wiring supports both source-side and display-side conversions from a single stocked part number.

• Triple shielding and oxygen-free copper maintain 1080p60 timing on runs up to the full 2 m length.

• Passive design needs no power injector and introduces no additional failure point in the link.
