Ugreen HD178 HDMI 4K Fiber Optic Cable Male to Male 25m Aluminum Shell
Original price was: KSh 7,000.00.KSh 5,400.00Current price is: KSh 5,400.00. ex VAT
Ugreen HD178 HDMI 4K Fiber Optic Cable Male to Male 25m Aluminum Shell
| Model | HD178 |
| Part Number | 45506 |
| Cable Type | Active Optical HDMI (AOC) |
| Connectors | HDMI male to HDMI male |
| Length | 25m |
| Bandwidth | 18Gbps |
| Resolution | 4K@60Hz |
| HDCP | 2.2 |
| Housing | Aluminum alloy |
Same day Delivery
Delivery
We deliver to the address you provide. Nairobi is often same-day on business days.
Across the country
Delivery outside CBD starts from KES 300
Warranty 1 year
72-hour (3-day) returns
Description
Long-Distance Optical HDMI Link
The Ugreen HD178 Fiber Cable carries HDMI 2.0 signals across 25 metres as modulated light instead of copper current. It moves 4K video at 60Hz with 18Gbps of aggregate bandwidth. Full HDCP 2.2 handshaking stays intact, so protected studio and streaming content passes without downscaling.
The active optical assembly combines four 10-gigabit fiber strands with seven tinned copper conductors. Connectors house the electro-optical conversion electronics, and the run is directional: the Source plug feeds the player, the Display plug feeds the panel. Supported timings include 3840×2160 at 60Hz, 2560×1440 at 144Hz, and 1080p at 240Hz.

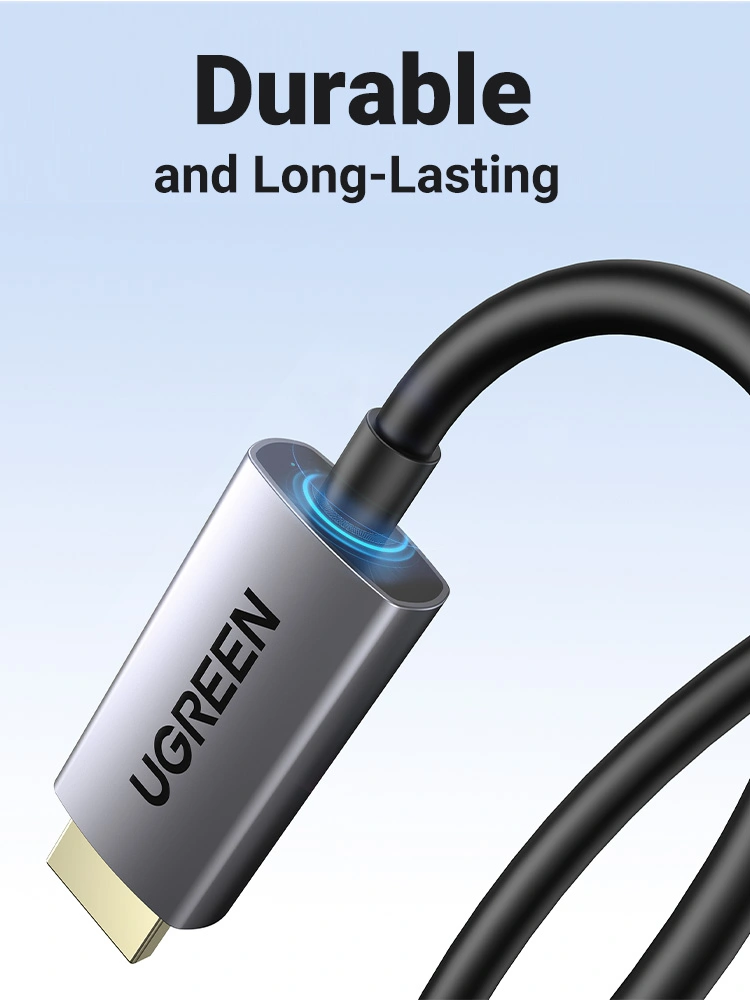

Aluminum alloy shells surround a die-cast zinc alloy inner shield, which blocks electromagnetic and radio-frequency interference along equipment-heavy routes. The assembly draws power from the HDMI +5V rail and needs no external adapter. Its 4.2mm jacket and 32AWG construction suit conduit and ceiling pulls between 0°C and 45°C.
Key Features
Active Optical Conversion
Electro-optical transceivers in each connector regenerate the TMDS signal, so attenuation across 25 metres stays flat instead of degrading like copper.HDMI 2.0 Bandwidth Ceiling
The link transports the full 18Gbps HDMI 2.0 payload, including HDR10 metadata and 48-bit colour depth, to a compatible display.Directional End Labelling
- Source/Input plug terminates at the player, switcher, or PC
- Display/Output plug terminates at the projector, panel, or TV
- Reversed installation does not pass signal
Dual-Layer Shielding
- Die-cast zinc alloy inner shell suppresses EMI
- Aluminum alloy outer housing resists abrasion and dissipates heat
- Gold-plated contacts limit oxidation at the termination points
Specifications
| Feature | Specification |
|---|---|
| Model | HD178 |
| Part Number | 45506 |
| Cable Type | Active Optical HDMI (AOC), directional |
| Connectors | HDMI male to HDMI male, full size |
| Length | 25m |
| HDMI Version | HDMI 2.0 |
| Total Bandwidth | 18Gbps |
| Maximum Resolution | 3840×2160 at 60Hz |
| Additional Timings | 2560×1440 at 144Hz, 1080p at 240Hz |
| Colour Depth | 48-bit |
| HDCP | 2.2 |
| HDR | HDR10 |
| Core Construction | 4-core fiber plus 7-core tinned copper |
| Shielding | Zinc alloy inner shell, aluminum alloy housing |
| Contact Plating | Gold |
| Outside Diameter | 4.2mm |
| Wire Gauge | 32AWG |
| Operating Temperature | 0°C to 45°C |
| Storage Temperature | -15°C to 75°C |
| External Power | None required, bus powered |
What’s in the Box
1 x HD178 active optical HDMI cable, 25m
Why Choose Ugreen
Optical transport removes the 10-metre copper ceiling that forces 4K installations down to 1080p.
Hybrid fiber and tinned copper cores keep the run flexible enough for conduit bends.
Bus-powered electronics eliminate a separate power outlet at the display end.
Published 18Gbps and HDCP 2.2 ratings let procurement verify compatibility before installation.
