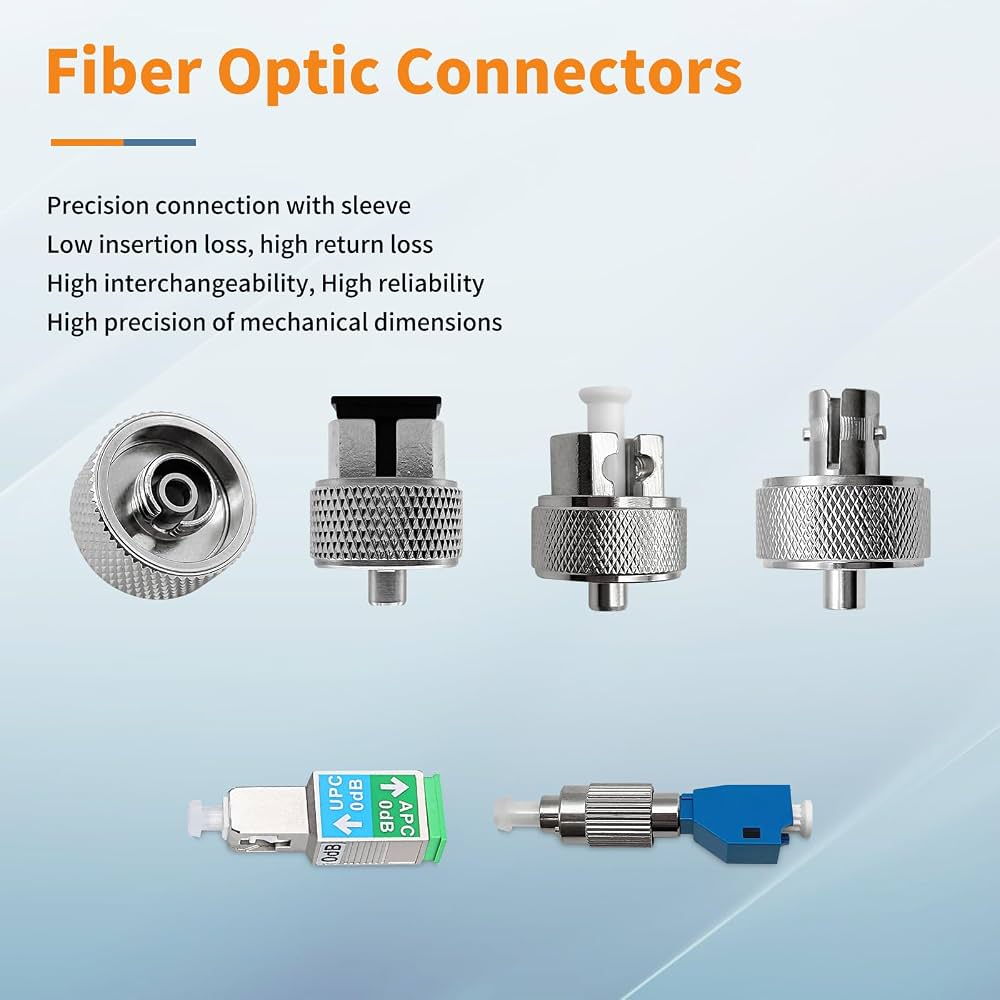

OEM Fiber Optic Adapters SC LC ST FC Singlemode Multimode
WhatsApp for availability
OEM Fiber Optic Adapters SC LC ST FC Singlemode Multimode
| Feature | Specification |
|---|---|
| Connector Types | SC, LC, ST, FC |
| Fiber Mode | Singlemode, Multimode |
| Insertion Loss | < 0.2 dB |
| Sleeve Material | Zirconia / Phosphor Bronze |
Shipping & Delivery
Fast delivery
Your order will be deliver to the specified address
15 - 45 minutes
From KES 300
Warranty 1 year
Free 30-Day returns
Description
OEM Fiber Interconnects
The OEM Fiber Optic Adapters facilitate precise alignment of optical connectors across various network architectures. These components utilize high-precision zirconia ceramic sleeves for singlemode applications. High-density data centers require these reliable optical connections. Engineering-grade materials ensure long-term durability in telecommunication racks. These units support both simplex and duplex fiber configurations. The internal alignment mechanism compensates for connector housing tolerances. This design maintains the physical contact required for low-reflectance connections. Proper mating prevents signal scattering at the interface. These passive modules integrate seamlessly into standard distribution frames.
Key Features
High-Precision Alignment Sleeves
- Zirconia ceramic sleeves provide less than 0.2dB insertion loss for OS2 singlemode fiber.
- Phosphor bronze sleeves offer reliable performance for OM1 through OM4 multimode environments.
Industrial Grade Construction
Impact-resistant polymer housings meet UL 94V-0 flammability ratings for enhanced fire safety.Broad Interface Compatibility
- Standard footprints match SC, LC, FC, and ST connector styles.
- Available in flange and flangeless mounting options for density optimization.
Environmental Resilience
Operating temperature ranges from -40 to +85 degrees Celsius support diverse installation environments.Standard Compliance
- Meets Telcordia GR-326-CORE requirements for optical reliability.
- Complies with RoHS and REACH environmental regulations.
Specifications
| Feature | Specification |
|---|---|
| Connector Types | SC, LC, ST, FC, MTRJ |
| Fiber Compatibility | Singlemode (OS2), Multimode (OM1-OM4) |
| Insertion Loss | < 0.20 dB (Typical) |
| Sleeve Material | Zirconia Ceramic / Phosphor Bronze |
| Mating Durability | 1000 Cycles |
| Operating Temp | -40°C to +85°C |
| Housing Material | Thermoplastic / Nickel-Plated Brass |
What’s in the Box
Fiber Optic Adapter Unit
Protective Dust Caps (Pre-installed)
Mounting Clips (Integrated)
Why Choose OEM Fiber Interconnects
High-performance passive components ensure signal integrity across enterprise backbones.
Precise manufacturing tolerances prevent axial misalignment during high-speed data transmission.
Consequently, network engineers experience reduced return loss in sensitive optical circuits.
The robust design withstands over 1000 mating cycles without performance degradation.
Standardized dimensions allow for quick integration into existing high-density patch panels.
Included protective dust caps prevent contamination of the optical interface during installation.
Choosing these modules ensures compliance with TIA/EIA-568-C.3 standards for cabling.
Reliable interconnects minimize troubleshooting time in complex fiber plant deployments.
The modular design supports future network upgrades and simplified fiber migrations.
