LC-LC UPC OS2 Single Mode Duplex Patch Cord 3m
Limited Stock
LC-LC UPC OS2 Single Mode Duplex Patch Cord 3m
| Connectors | LC/UPC to LC/UPC |
| Fiber mode | OS2 single mode, 9/125 µm |
| Configuration | Duplex |
| Length | 3 m |
| Cable diameter | 2.0 mm |
| Jacket | LSZH, yellow |
| Insertion loss | 0.3 dB max |
| Return loss | 55 dB min |
| Wavelength | 1310 nm / 1550 nm |
| Operating temperature | -20 °C to +70 °C |
Same day Delivery
Delivery
We deliver to the address you provide. Nairobi is often same-day on business days.
Across the country
Delivery outside CBD starts from KES 300
Warranty 1 year
72-hour (3-day) returns
Description
Duplex Single Mode Fiber Jumper

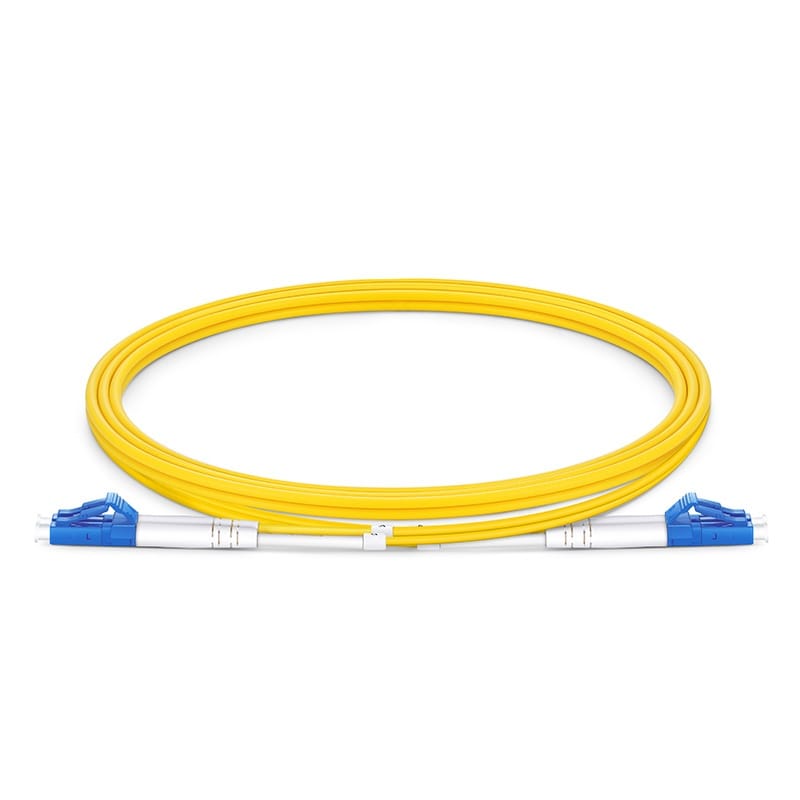

The LC-LC OS2 Patch Cord links LC/UPC ports across a 3 m duplex single mode run. It carries 1310 nm and 1550 nm wavelengths over 9/125 µm fiber. Data centres, telecom rooms and FTTH cabinets use this single mode fiber jumper for panel-to-switch connections.

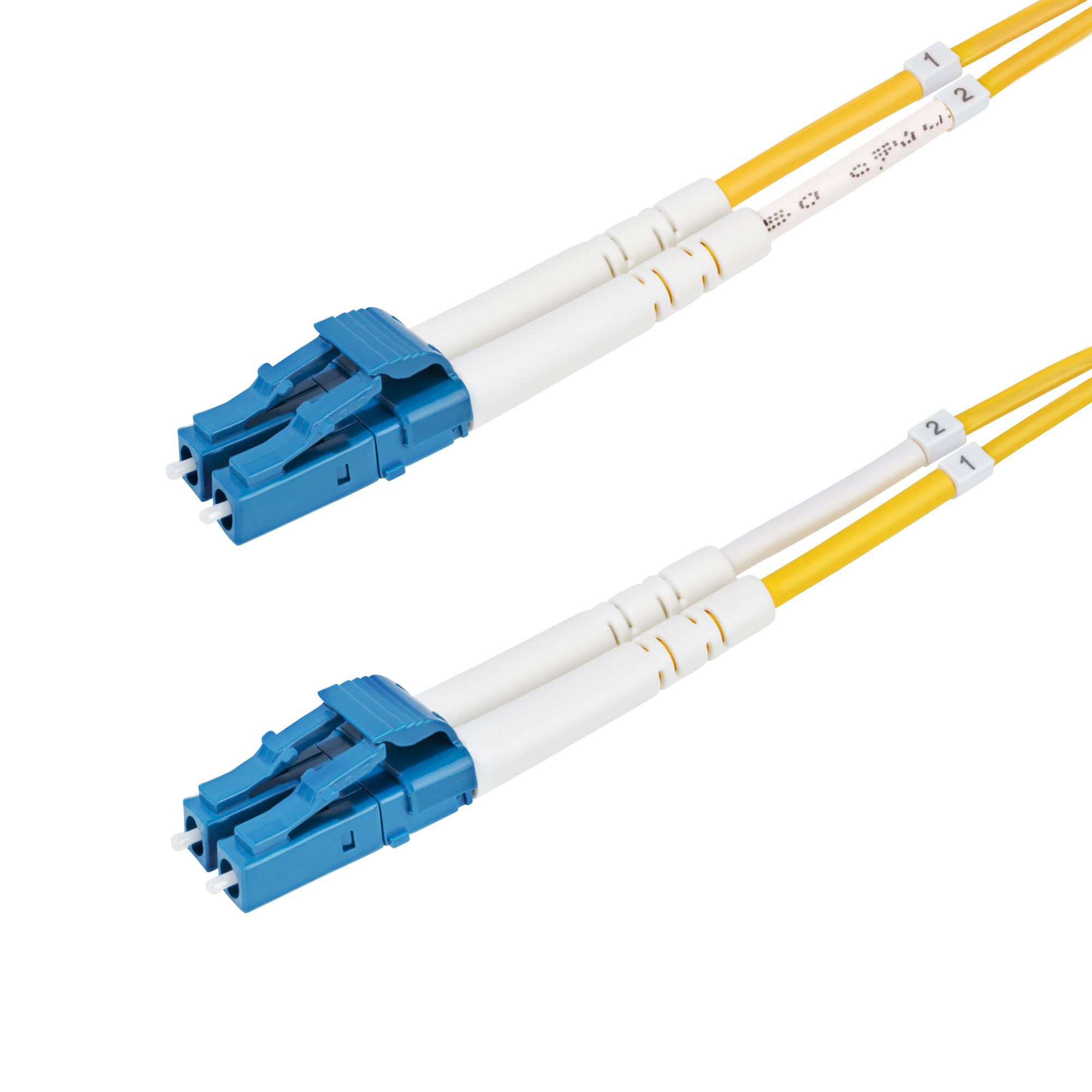

Each LC connector uses a 1.25 mm ceramic ferrule with a UPC 0° polish. Maximum insertion loss reaches 0.3 dB, and return loss holds at 55 dB or better. The duplex zipcord keeps transmit and receive polarity consistent across the run.
A 2.0 mm LSZH jacket limits smoke and halogen output in indoor pathways. The G657A1 bend-insensitive core tolerates tight radii inside high-density enclosures. Operating temperature spans -20 °C to +70 °C.
Key Features
Duplex LC/UPC Connectors
Two 1.25 mm ceramic ferrules align both fibers inside one compact latch housing.Low-Loss Optical Path
- Insertion loss capped at 0.3 dB per connector
- Return loss of 55 dB or higher limits back-reflection
OS2 9/125 µm Fiber
The single mode core supports 1310 nm and 1550 nm transmission over long spans.LSZH Jacket
The low smoke zero halogen compound meets indoor fire safety requirements.Bend-Insensitive Construction
- G657A1 core resists macro-bend loss at tight radii
- Aramid yarn reinforces tensile strength
3 m Duplex Zipcord
The two-fiber cable keeps polarity stable between patch panels and active ports.
Specifications
| Feature | Specification |
|---|---|
| Connector A | LC/UPC, 1.25 mm ceramic ferrule |
| Connector B | LC/UPC, 1.25 mm ceramic ferrule |
| Fiber mode | OS2 single mode |
| Core/cladding | 9/125 µm |
| Fiber type | G657A1 bend-insensitive |
| Configuration | Duplex |
| Length | 3 m |
| Cable diameter | 2.0 mm |
| Jacket material | LSZH |
| Jacket color | Yellow |
| Wavelength | 1310 nm / 1550 nm |
| Maximum insertion loss | 0.3 dB |
| Minimum return loss | 55 dB |
| Operating temperature | -20 °C to +70 °C |
| Connector standard | IEC 61754-20 |
| Test standard | IEC 61300-3-4 |
| Cable standard | ISO/IEC 11801 |
What’s in the Box
One 3 m LC-LC UPC OS2 duplex patch lead
Why Choose the LC Duplex Cable
The 9/125 fiber patch lead preserves optical budget across three metre runs.
UPC ferrules deliver 55 dB return loss on both connector ends.
The LSZH fiber jumper suits plenum-adjacent indoor routing.
Duplex LC fiber cable maintains TX/RX polarity without field re-termination.
OS2 duplex patch cable meets IEC 61754-20 interface dimensions.
Yellow jacket color identifies single mode paths during audits.
