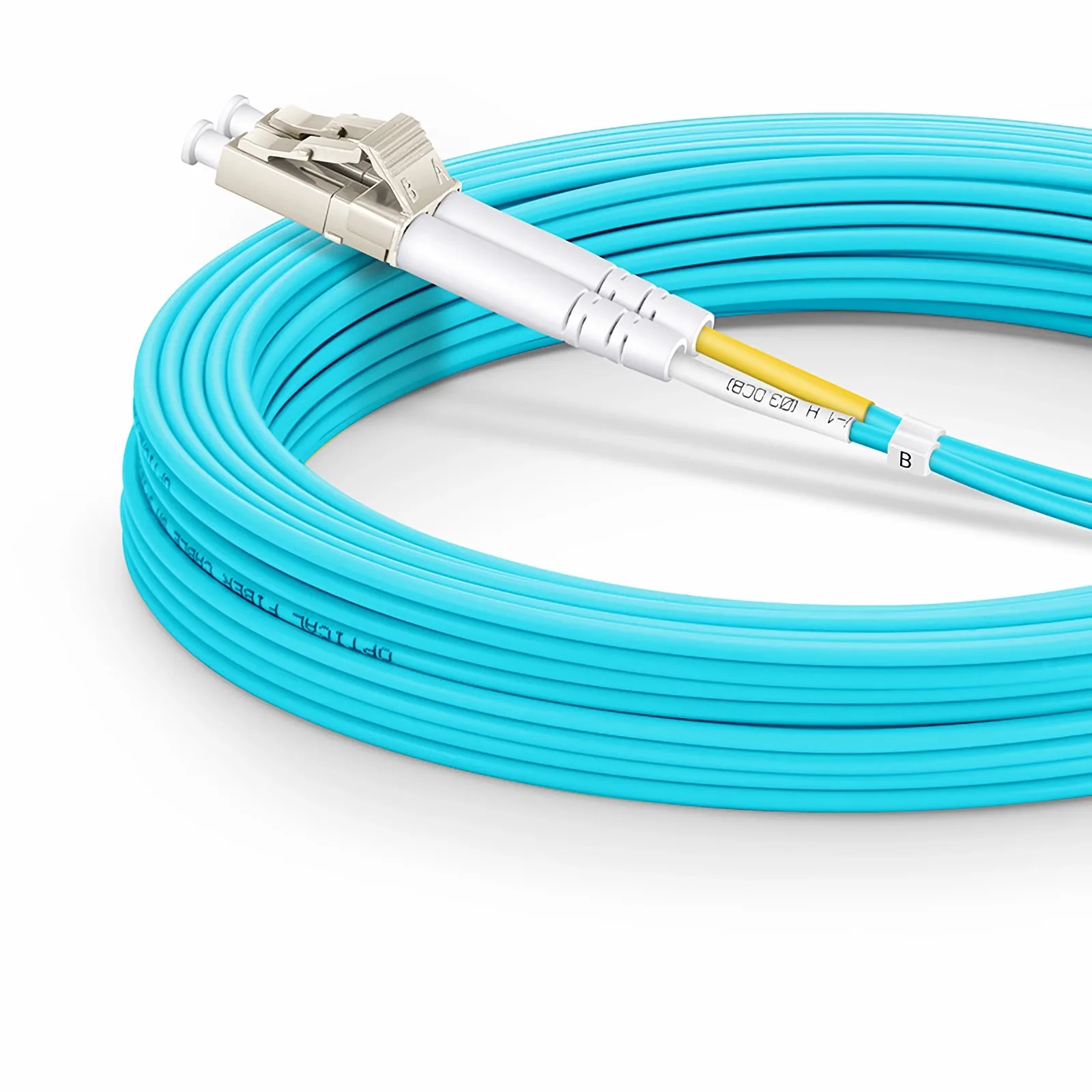

LC to LC UPC OM3 Patch Cord 2m Duplex Multimode 50/125µm Aqua LSZH
Limited Stock
LC to LC UPC OM3 Patch Cord 2m Duplex Multimode 50/125µm Aqua LSZH
| Connectors | LC/UPC to LC/UPC |
| Fiber mode | OM3 multimode, 50/125 µm |
| Fiber count | Duplex |
| Length | 2m |
| Jacket | LSZH, aqua |
| Insertion loss | ≤0.3 dB |
| Return loss | ≥50 dB |
| Operating temperature | -20°C to 70°C |
Same day Delivery
Delivery
We deliver to the address you provide. Nairobi is often same-day on business days.
Across the country
Delivery outside CBD starts from KES 300
Warranty 1 year
72-hour (3-day) returns
Description
Duplex Multimode Fiber Assembly
The LC LC OM3 patch cord links two LC/UPC ports across a 2m duplex multimode run. Two 50/125µm fibers sit inside an aqua zipcord jacket. The assembly suits rack-to-rack patching and short backbone links in data centres and equipment rooms.
OM3 glass carries 10G Ethernet to 300m and 40G or 100G to 100m with SR optics. The 2.0mm duplex cord splits into two 900µm buffered fibers. Minimum bend radius holds at 10mm under load. LC push-pull latches release by hand, which protects ferrules on loaded panels.
Zirconia ceramic ferrules with UPC polish hold insertion loss at ≤0.3 dB per mated pair. Return loss reaches ≥50 dB for multimode UPC. The LSZH jacket meets IEC 60332-1-2 and limits halogen release in enclosed cabinets. Operating range spans -20°C to 70°C, and storage spans -40°C to 85°C.
Key Features
Duplex LC/UPC termination
Two LC/UPC plugs per end seat into SFP, SFP+ and QSFP transceiver ports.Low-loss optical path
- 0.3 dB maximum insertion loss per mated pair
- 50 dB minimum return loss at UPC polish
- Repeatability within 0.1 dB across mating cycles
Bend-insensitive OM3 glass
A 50/125µm core and cladding carry 850nm and 1300nm signals over the full 2m span.LSZH 2.0mm jacket
The low-smoke zero-halogen compound suits enclosed racks and air-handling spaces.Aramid-reinforced cord
Strength members absorb pull tension so the fiber core keeps its geometry.Aqua jacket coding
The aqua sheath matches OM3 identification conventions on patch panels.Factory test data
Each lead ships with measured insertion loss and return loss figures for acceptance records.
Specifications
| Feature | Specification |
|---|---|
| Connector A | 2 x LC/UPC male |
| Connector B | 2 x LC/UPC male |
| Fiber mode | OM3 multimode |
| Core and cladding | 50/125µm |
| Fiber count | Duplex |
| Length | 2m |
| Jacket diameter | 2.0mm |
| Buffer diameter | 900µm |
| Jacket material | LSZH |
| Jacket colour | Aqua |
| Insertion loss | ≤0.3 dB per mated pair |
| Return loss | ≥50 dB (UPC) |
| Repeatability | ≤0.1 dB |
| Wavelength | 850nm and 1300nm |
| Minimum bend radius | 10mm under load |
| Operating temperature | -20°C to 70°C |
| Storage temperature | -40°C to 85°C |
| Flammability | IEC 60332-1-2 |
| Connector standard | IEC 61754-20 |
| Compliance | RoHS |
What’s in the Box
2m LC/UPC to LC/UPC OM3 duplex patch cord
Dust caps fitted to both connector pairs
Why Choose This Fiber Lead
Pre-terminated duplex LC connectors cut termination labour on short multimode links.
The 2m span reaches between adjacent racks without excess slack in the tray.
Ceramic ferrules keep loss stable through repeated patching during moves and changes.
Aqua jacket and UPC polish match OM3 coding conventions on the panel.
OM3 glass supports 10G, 40G and 100G optics over the rated distances.
The halogen-free jacket meets indoor riser and cabinet safety requirements.
