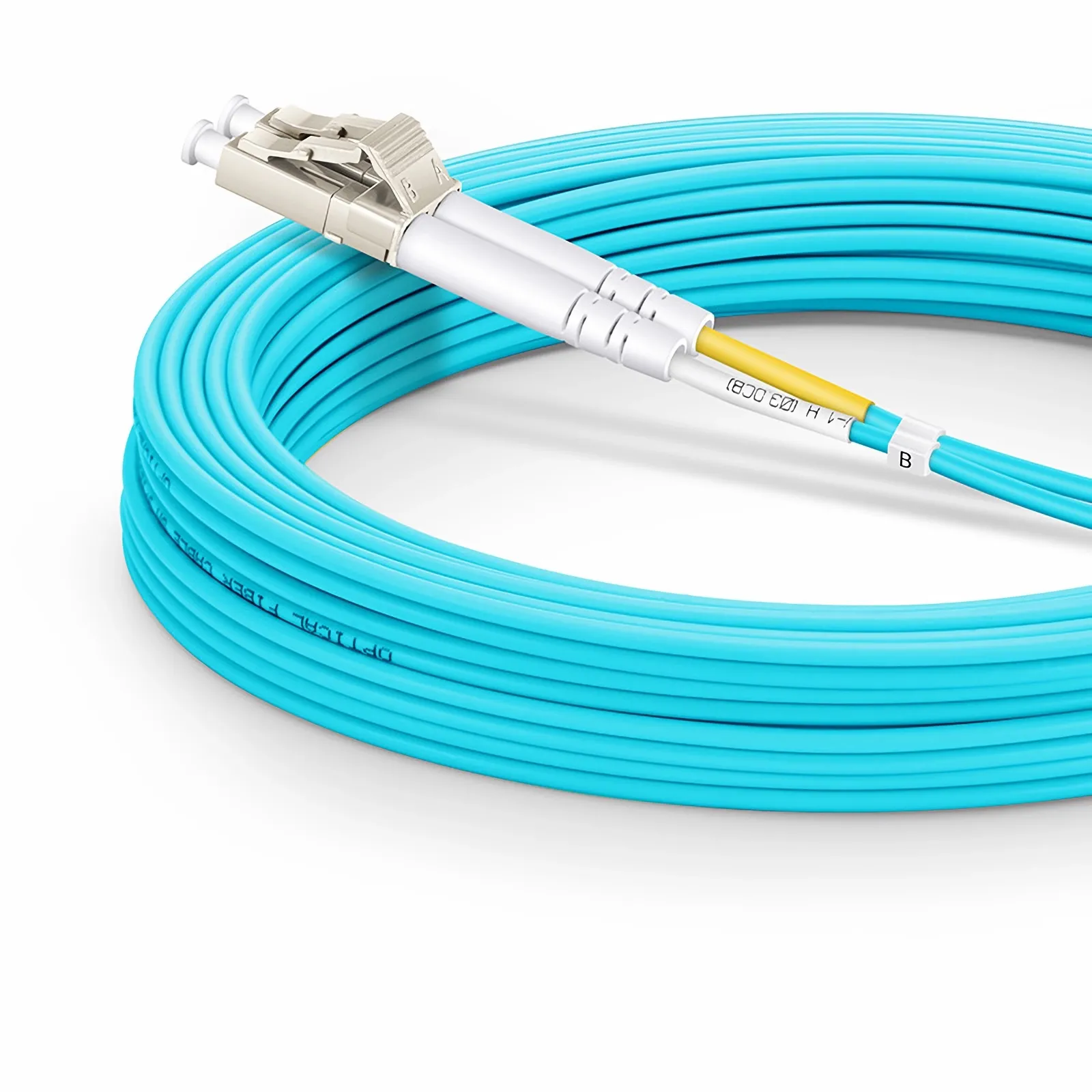

LC-LC OM3 Patch Cord UPC Duplex 10m 50/125 Multimode Aqua LSZH
Limited Stock
LC-LC OM3 Patch Cord UPC Duplex 10m 50/125 Multimode Aqua LSZH
| Connectors | LC/UPC to LC/UPC, duplex |
| Fiber mode | OM3 multimode, 50/125 µm |
| Length | 10 m |
| Wavelength | 850 nm / 1300 nm |
| Insertion loss | 0.3 dB max per mated pair |
| Return loss | 30 dB min |
| Cable diameter | 2.0 mm |
| Jacket | LSZH, aqua |
| Operating temperature | -20 °C to +70 °C |
Same day Delivery
Delivery
We deliver to the address you provide. Nairobi is often same-day on business days.
Across the country
Delivery outside CBD starts from KES 300
Warranty 1 year
72-hour (3-day) returns
Description
Duplex Multimode Fiber Jumper
The LC-LC OM3 Patch Cord connects two LC/UPC ports across a 10 m duplex multimode run. It carries 850 nm and 1300 nm traffic over 50/125 µm laser-optimised fiber. Data centres and enterprise racks use this duplex fiber jumper for switch-to-panel links.
Each LC connector uses a 1.25 mm zirconia ceramic ferrule with UPC 0° polish. Insertion loss stays at or below 0.3 dB per mated pair, and return loss reaches 30 dB or better. The duplex zipcord holds polarity A (Tx) to B (Rx) across the run.
OM3 bandwidth supports 10GBASE-SR to 300 m and 1000BASE-SX to 550 m at 850 nm. The 2.0 mm aqua LSZH jacket limits smoke and halogen output in indoor pathways. Operating temperature spans -20 °C to +70 °C, and the cable tolerates a 20D dynamic bend radius.
Key Features

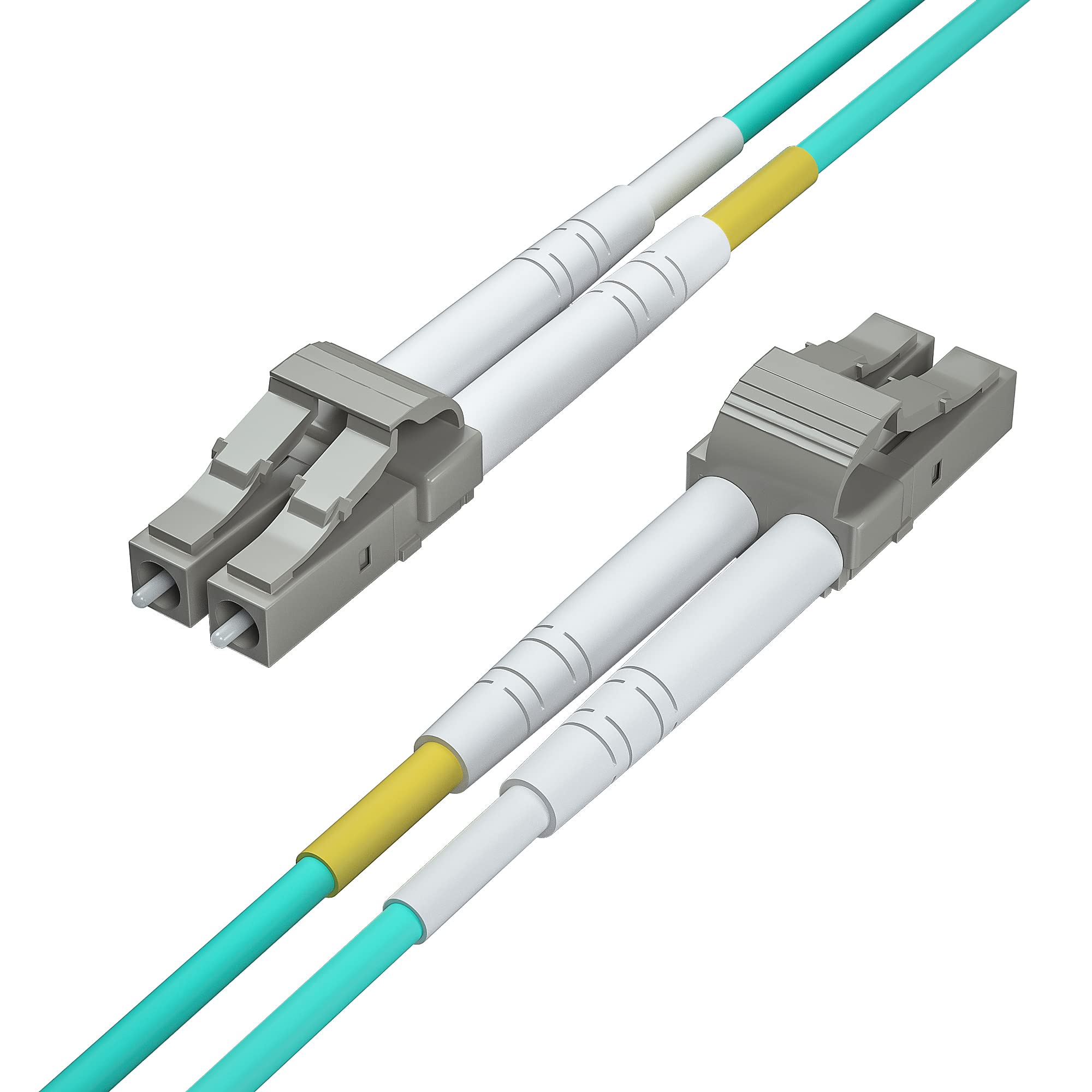

Duplex LC/UPC Connectors
Two 1.25 mm ceramic ferrules sit inside compact latch housings for high-density panels.Low-Loss Optical Path
- Insertion loss capped at 0.3 dB per mated pair
- Return loss of 30 dB or higher limits back-reflection
OM3 Laser-Optimised Fiber
The 50/125 µm core carries 10G Ethernet to 300 m at 850 nm.10 m Duplex Zipcord
The two-fiber cable reaches across cabinets while keeping TX/RX polarity stable.Aqua LSZH Jacket
The low smoke zero halogen sheath meets indoor fire safety requirements and marks OM3 runs.Bend-Insensitive Construction
A 7.5 mm fiber bend radius and 20D cable radius suit tight enclosure routing.Strain Relief Boots
Push-on boots protect the connector-to-fiber transition during moves and patching.
Specifications
| Feature | Specification |
|---|---|
| Connector A | LC/UPC duplex, 1.25 mm ceramic ferrule |
| Connector B | LC/UPC duplex, 1.25 mm ceramic ferrule |
| Fiber mode | OM3 multimode |
| Core/cladding | 50/125 µm |
| Fiber count | 2 (duplex zipcord) |
| Length | 10 m |
| Wavelength | 850 nm / 1300 nm |
| Maximum insertion loss | 0.3 dB per mated pair |
| Minimum return loss | 30 dB |
| Attenuation at 850 nm | 3.5 dB/km |
| Attenuation at 1300 nm | 1.5 dB/km |
| Cable diameter | 2.0 mm |
| Jacket material | LSZH |
| Jacket color | Aqua |
| Polarity | A (Tx) to B (Rx) |
| Bend radius, fiber | 7.5 mm |
| Bend radius, cable | 20D dynamic / 10D static |
| Operating temperature | -20 °C to +70 °C |
| Connector durability | 1000 mating cycles |
| Applications | 10GBASE-SR, 1000BASE-SX, 40GBASE-SR4 |
What’s in the Box
One 10 m LC-LC UPC OM3 duplex patch lead
Protective dust caps on both connector ends
Why Choose the OM3 Duplex Lead
The multimode fiber jumper preserves optical budget across ten metre rack runs.
UPC ferrules deliver 30 dB return loss on both connector ends.
The aqua LSZH fiber jumper suits plenum-adjacent indoor routing.
Duplex fiber cable maintains TX/RX polarity without field re-termination.
OM3 duplex patch cable supports 10GBASE-SR to 300 m at 850 nm.
Aqua sheath color identifies multimode paths during audits.
