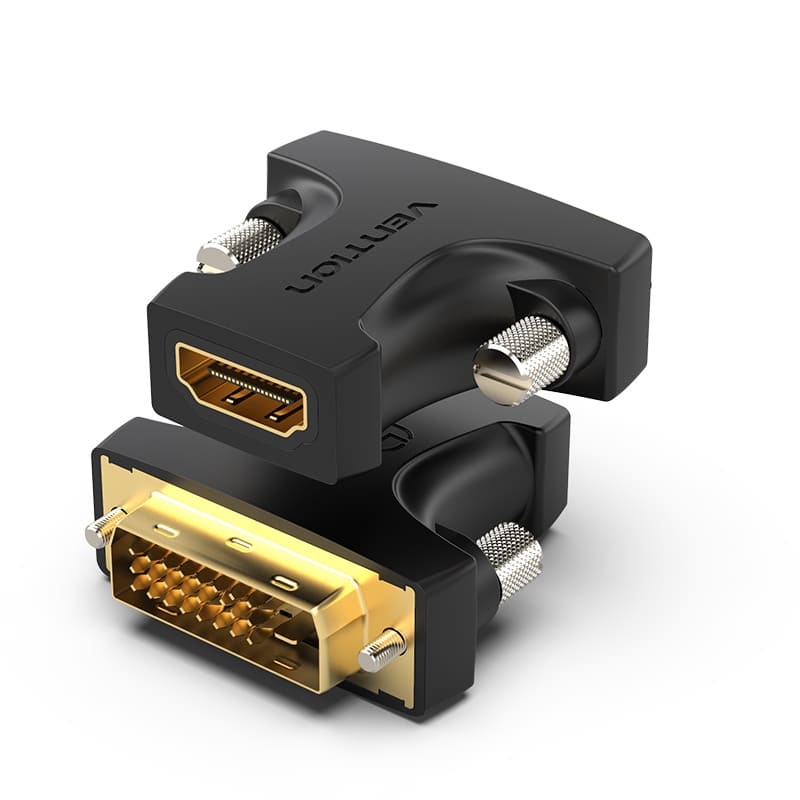

Vention ECDB0 DVI(24+1) Male to HDMI Female Adapter 1080P HDMI 1.4 Black
Original price was: KSh 400.00.KSh 300.00Current price is: KSh 300.00. ex VAT
Vention ECDB0 DVI(24+1) Male to HDMI Female Adapter 1080P HDMI 1.4 Black
| Model | ECDB0 |
| Interface Type | DVI (24+1) male, HDMI female |
| HDMI Version | 1.4 |
| Maximum Resolution | 1920 x 1080 at 60 Hz |
| Transmission Direction | Bi-directional |
| Contact Plating | Gold |
| Shell Material | PVC |
| Colour | Black |
| Dimensions | 43.2 x 32.8 x 21.4 mm |
| Weight | 0.06 kg |
| Audio Support | None (video only) |
| Warranty | 1 year |
Same day Delivery
Delivery
We deliver to the address you provide. Nairobi is often same-day on business days.
Across the country
Delivery outside CBD starts from KES 300
Warranty 1 year
72-hour (3-day) returns
Description
DVI to HDMI Signal Conversion
The Vention ECDB0 adapter converts a DVI-D source to an HDMI female output, and the same path works in reverse. It passes resolutions up to 1920 x 1080 at 60 Hz. The HDMI side conforms to version 1.4.
The male connector carries 24 pins plus one crossbar, so it mates with DVI-D dual-link and single-link ports. The unit also seats in 24+5 receptacles on the host side. Gold plating covers the contacts at both ends, and a nut-type fastener tightens onto the DVI screw locks.
The PVC shell measures 43.2 x 32.8 x 21.4 mm and weighs 0.06 kg. No driver or external power is required, because the unit passes the TMDS signal directly. DVI carries video only, so audio needs a separate cable path.
Key Features
Bi-Directional Signal Path
The converter handles DVI-to-HDMI and HDMI-to-DVI traffic without a direction switch.Dual-Link Pin Layout
- 24 pins plus one crossbar match the DVI-D dual-link standard.
- The same plug seats in 24+5 receptacles for broader host coverage.
Gold-Plated Contacts
Plated pins resist oxidation and hold contact resistance stable across repeated mating cycles.Screw-Lock Fastener

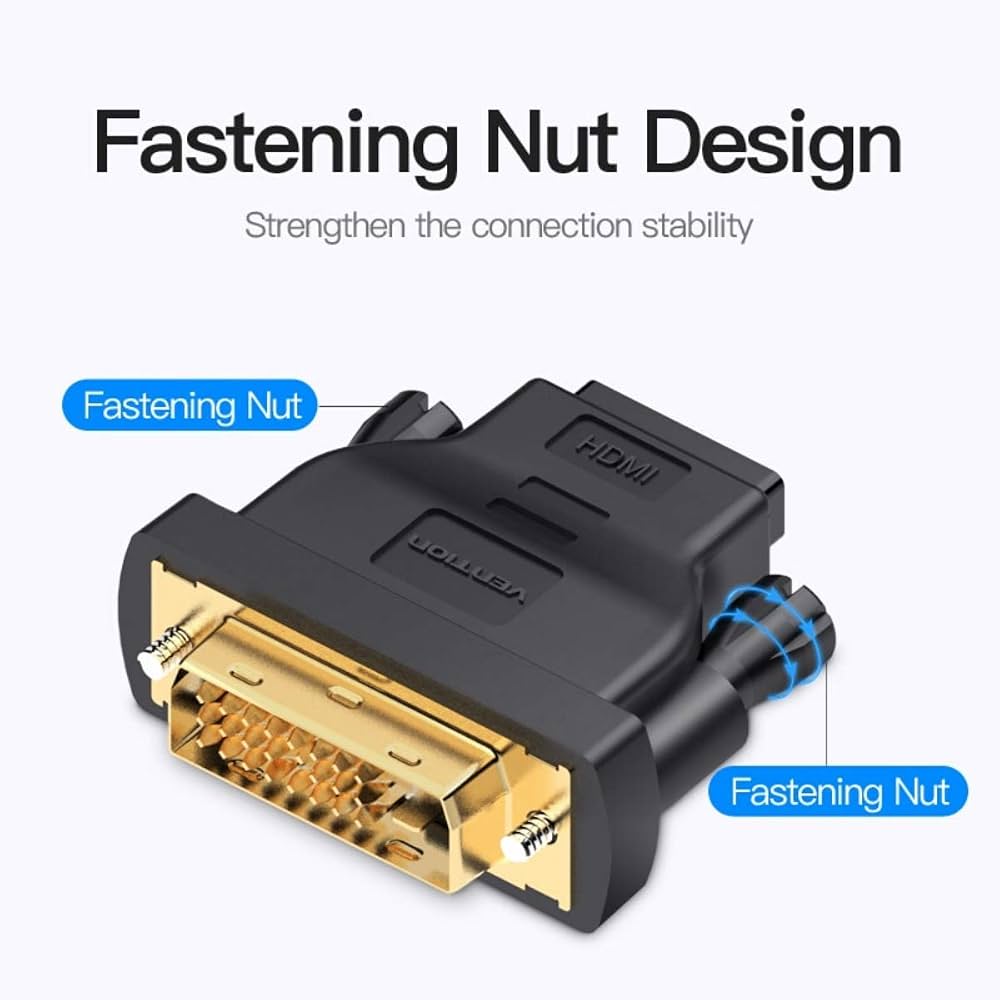

A nut-type collar engages the DVI thumbscrews so the plug cannot walk out under cable weight.Passive Operation
The unit draws no power and needs no driver install, which suits kiosks and fixed installations.
Specifications
| Feature | Specification |
|---|---|
| Model | ECDB0 |
| Interface Type | DVI (24+1) male, HDMI female |
| HDMI Version | 1.4 |
| Maximum Resolution | 1920 x 1080 at 60 Hz |
| Transmission Direction | Bi-directional |
| Contact Plating | Gold |
| Shell Material | PVC |
| Colour | Black |
| Dimensions | 43.2 x 32.8 x 21.4 mm |
| Weight | 0.06 kg |
| Audio Support | None (video only) |
| Installation | Plug and play, no driver |
| Warranty | 1 year |
What’s in the Box
Vention ECDB0 DVI(24+1) male to HDMI female adapter
Retail packaging
Why Choose the ECDB0
The dual-link pin arrangement covers both single-link and dual-link DVI outputs on legacy desktops.
Gold plating keeps contact resistance low across repeated swaps in shared meeting rooms.
The screw-lock collar prevents dropouts where an HDMI cable hangs from a wall-mounted display.
At 0.06 kg and 43 mm long, the unit fits a technician pouch without adding bulk.
A 1-year warranty covers the assembly for procurement records.
Caroline Wanjiku (verified owner) –
Ordered two for our cyber cafe and both arrived in two days sealed. The 24+1 DVI end fits the older towers we run and the HDMI side connects to our display panels. One of the two had a slightly stiff connector but worked after a firm push. At 1080p there is no flicker or colour shift. Good value for an adapter that solves a very specific problem.
Hassan Mohamed (verified owner) –
The adapter is compact and does the job for a DVI source feeding an HDMI display. I appreciate that it is HDMI 1.4 rated so it holds 1080p at 60Hz without issues. The plastic shell is light but has survived being moved around in my toolkit. Would recommend for anyone with legacy DVI hardware.
Erick Otieno (verified owner) –
Small adapter, does exactly what it says. I use it to push a projector from an older DVI graphics card and the signal has been stable for weeks. Build is plastic but feels solid enough.
Alfred Mutiso (verified owner) –
I was sceptical about a passive adapter holding 1080p but it has been stable on our boardroom display for over a month. The DVI screw posts hold it firmly to the graphics card so there is no sag. Only wish it came with a short HDMI pigtail, but that is a personal preference. For the money it solves a real connectivity gap for older towers.
Lucy Achieng (verified owner) –
I bought this to connect an old DVI monitor card to a modern HDMI screen at the office. It works fine at 1080p and the cable fit is tight, no wobble. Delivery to Industrial Area was smooth. Not much to say beyond that, it just works.
Mercy Wangari (verified owner) –
Straightforward adapter, arrived quickly. Connected an old projector to a newer laptop through a separate HDMI cable. Works fine.
Njeri Muthoni (verified owner) –
Needed this for an old Dell desktop with only DVI out at our reception desk. Plugged it in, connected an HDMI cable to the TV, and it worked immediately at 1080p. No drivers, no fuss.
George Karanja (verified owner) –
Works as expected. The adapter does not carry audio, which I knew from the spec, so plan for a separate audio cable if you are pushing to a TV.
