SnoMaster ZBC-15 Ice Maker Water Pump Replacement Part
Original price was: KSh 6,400.00.KSh 5,200.00Current price is: KSh 5,200.00. ex VAT
SnoMaster ZBC-15 Ice Maker Water Pump Replacement Part
| Model | ZBC-15 |
| Part type | Water circulation pump |
| Compatible appliance | SnoMaster ZBC-15 counter-top bullet ice maker |
| Cross-reference code | IMRFSN02-X |
| Additional compatible models | SKYISH, TP-450, TP450 |
| Cover | Not included; reuse original front cover |
| Mounting | Internal, direct replacement |
| Pack quantity | 1 pump |
| Host appliance voltage | 230 V / 50 Hz |
Same day Delivery
Delivery
We deliver to the address you provide. Nairobi is often same-day on business days.
Across the country
Delivery outside CBD starts from KES 300
Warranty 1 year
72-hour (3-day) returns
Description

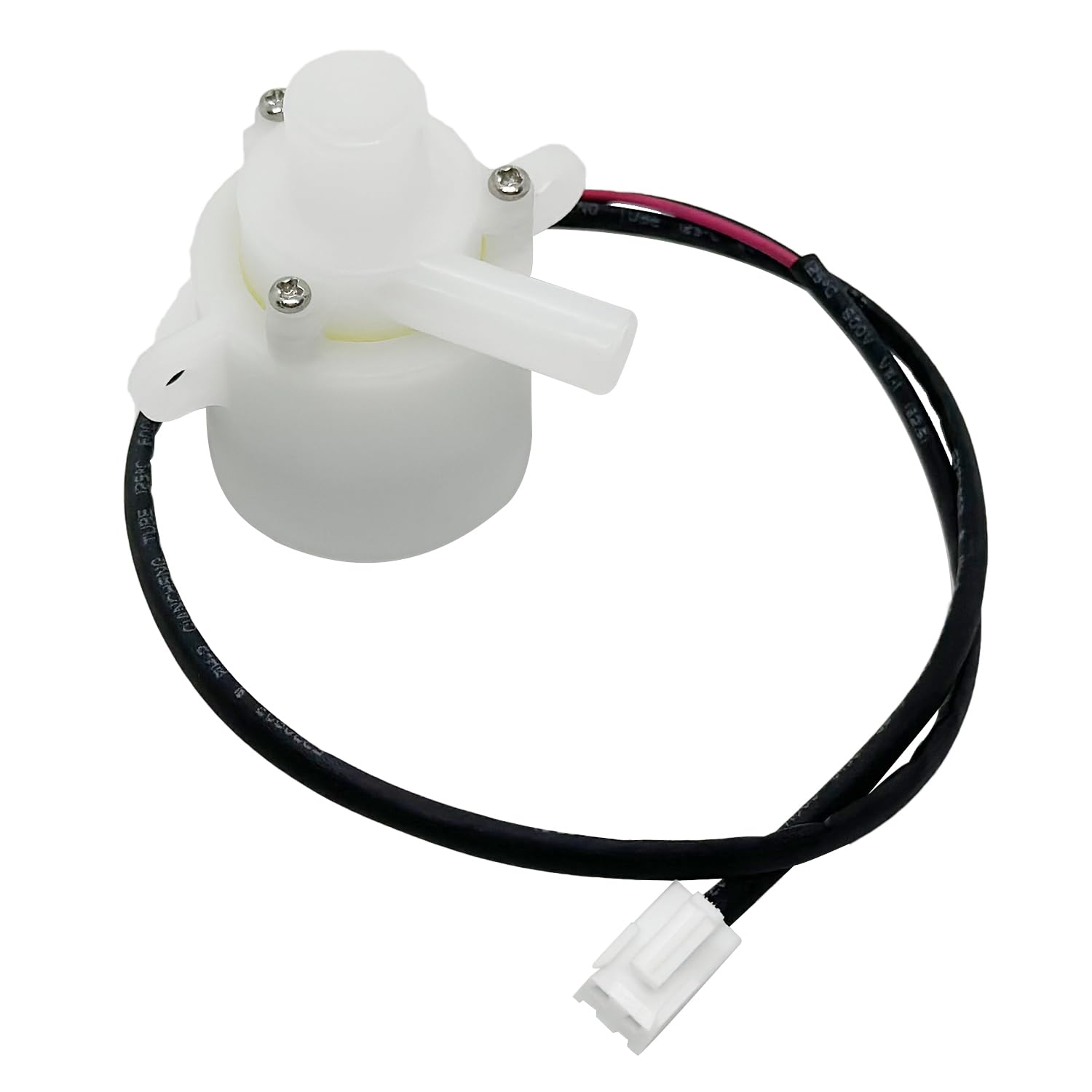

Ice Maker Circulation Pump Replacement
The SnoMaster ZBC-15 water pump restores water circulation inside the ZBC-15 counter-top bullet ice maker. It moves water from the reservoir to the evaporator moulds. Fit this pump when the original unit stops priming or the ice maker reports a water fault.
The pump mounts inside the appliance chassis and connects to the existing water circuit. Service agents replace the pump as a complete assembly rather than rebuilding the impeller or motor. The ZBC-15 host appliance runs on 230 V/50 Hz and draws 1.0 A with a 110 W input.
Diagnosis follows the SnoMaster troubleshooting guide: a faulty pump causes incomplete ice formation or a no-ice condition. Confirm the water level sensor and inlet filter first. Replace the pump only after those checks pass. The part ships without the front cover, so reuse the original cover during fitting.
Key Features
Direct Fit for ZBC-15
The assembly matches the mounting points and water connections of the ZBC-15 chassis.Complete Pump Assembly
- Motor and impeller supplied as one unit
- No bearing or seal rebuild required
- Reuses the original front cover
- Connects to the existing reservoir circuit
Service Part Identification
The IMRFSN02-X code identifies the pump in SnoMaster spare parts listings.Cross-Model Compatibility
The same pump body is listed for the SKYISH, TP-450 and TP450 ice maker models.Fault Recovery
Replacing a failed pump restores the water feed that the ice cycle depends on.
Specifications
| Feature | Specification |
|---|---|
| Model | ZBC-15 |
| Part type | Water circulation pump |
| Compatible appliance | SnoMaster ZBC-15 counter-top bullet ice maker |
| Cross-reference code | IMRFSN02-X |
| Additional compatible models | SKYISH, TP-450, TP450 |
| Cover | Not included; reuse original front cover |
| Function | Reservoir to evaporator water feed |
| Mounting | Internal, direct replacement |
| Pack quantity | 1 pump |
| Host appliance voltage | 230 V / 50 Hz |
| Host appliance current | 1.0 A |
| Host appliance input power | 110 W |
What’s in the Box
ZBC-15 water pump assembly
Why Choose This Replacement Pump
Restores ice production without replacing the whole appliance.
Direct-fit assembly cuts service time at the counter.
Listed cross-reference code simplifies part verification.
Matches the water circuit of the ZBC-15 chassis.
Keeps a counter-top ice maker in service rather than in storage.
