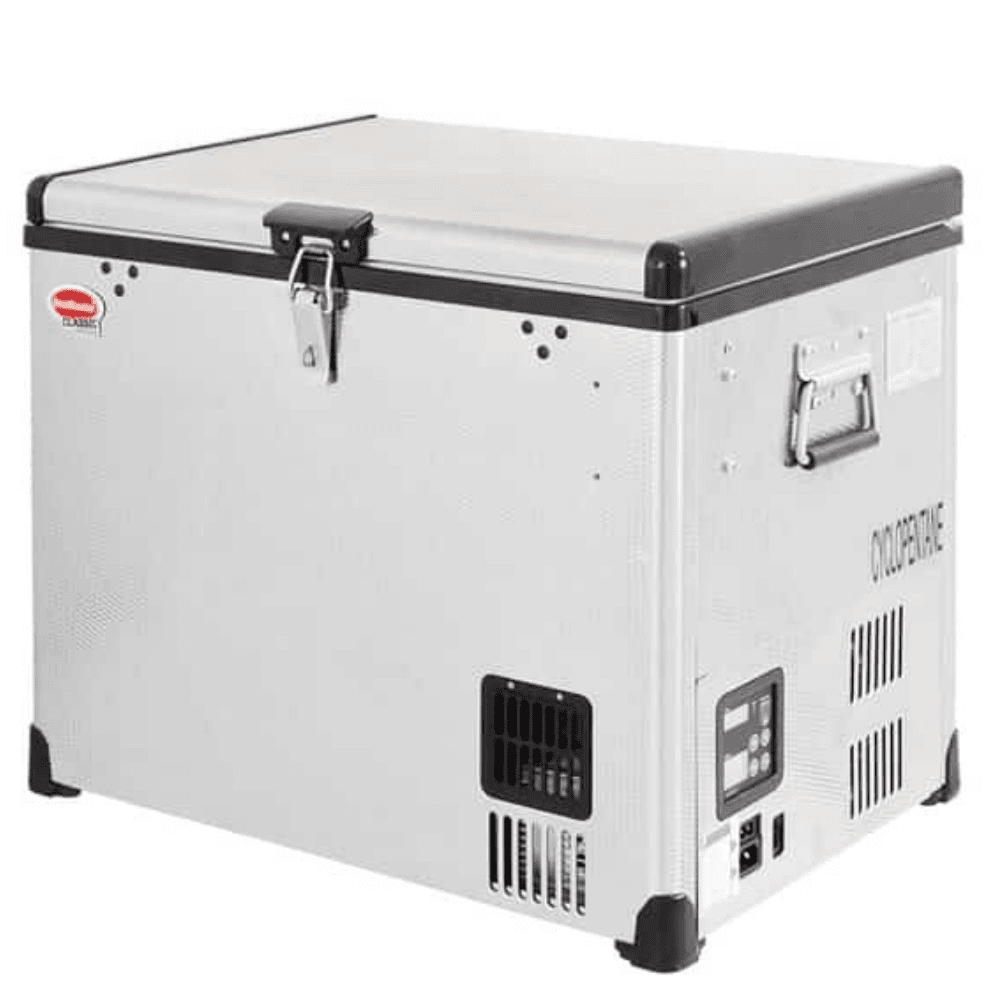

SnoMaster SMDZ-CL40 40L Portable Fridge Freezer

Mobile Refrigeration for Vehicles and Remote Sites

The SnoMaster 40L fridge freezer is a single-compartment AC/DC cabinet built for vehicles, campsites and off-grid kitchens. It holds 40 litres and runs from 100–240 V mains or a 12/24 V DC supply through a car or DIN socket.

A 45 W SnoMaster compressor pulls the cabinet down to -22°C and holds any setpoint up to 10°C. Rated current is 3.75 A at 12 V DC and 0.42 A at 220 V AC, which keeps the load within a typical auxiliary circuit.

60 mm cyclopentane insulation limits heat gain in high ambient conditions. The cabinet measures 520 mm high, 625 mm long and 460 mm wide, with a net weight of 24 kg. Stainless hinges, locks and handles sit on the exterior, and corner feet carry mounting holes for fixed installs.

Key Features

• 45 W Compressor
  Cools 40 litres from ambient to -22°C on a low-current DC draw.

• Three Speed Settings

  • High mode for fast pull-down at the start of a trip.
  • Auto mode balances duty cycle against available battery capacity.
  • Low mode limits current draw during long stationary periods.

• Low Voltage Cut-Out
  Three selectable thresholds at 10, 10.7 and 11.8 V protect the supply battery from over-discharge.

• Mini Anderson Plugs
  Locking input and output connectors accept solar and auxiliary DC feeds without adapters.

• Lid and Hardware

  • Removable, reversible lid on sliding stainless hinges.
  • Lid open alarm and internal LED light.
  • Stainless locks, handles and corner feet with mounting holes.

• Solar Remote and Transit Cover
  A solar-powered remote changes setpoints without opening the lid, and the cover shields the cabinet from dust and road debris.

Installation and Power Notes

Keep 150 mm of clearance around the cabinet for airflow. Mount the unit on a flat surface using the corner feet, and avoid tilting it beyond 45 degrees from upright during transit.

Run the DC lead through a fused circuit rated for the 3.75 A draw. Set the cut-out threshold to suit the battery bank; 11.8 V suits a dedicated auxiliary pack, while 10.7 V works with a shared starter battery.

The supplied transit cover shields the cabinet from dust and road debris. Removable baskets keep contents organised and reduce cold-air loss when the lid opens. A bottle opener clips to the exterior for quick access.

Specifications

What’s in the Box

• SMDZ-CL40 portable fridge cabinet

• Removable storage baskets

• Solar powered remote control

• Transit cover

• Bottle opener

Why Choose SnoMaster SMDZ-CL40

• Runs from mains or vehicle DC without an external converter.

• Three battery protection thresholds suit dual-battery installations.

• One compartment covers both chilled and frozen duty.

• Stainless hardware and thick insulation handle dust and vibration.

• Seven-year compressor warranty supports long field service intervals.
