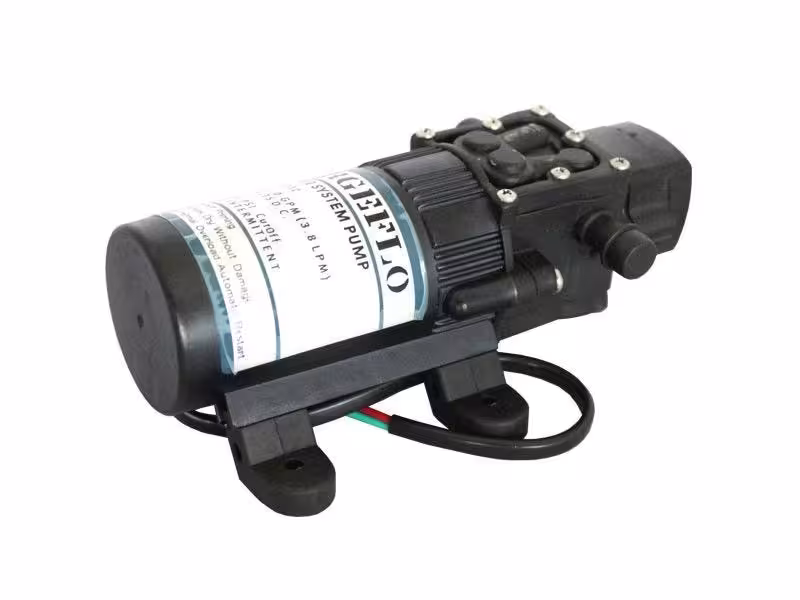

Front Runner WTAN019 Surgeflow Compact Water System Pump 3.8L/min 12V 22/35 PSI

On-Demand Water Pressure for Vehicle Systems

The Front Runner WTAN019 is a compact 12V diaphragm pump that pressurises water systems in trucks, campers and vans. It delivers 3.8 litres per minute and runs fully automatic on demand. A sealed pressure switch starts the motor when a tap opens and stops it when the tap closes.

The unit measures 160 mm in length and weighs 0.8 kg, with an overall envelope of 110 x 205 x 65 mm. Pressure switches on at 22 PSI and off at 35 PSI. Hose barb ports accept standard water line, and plug-in fittings simplify installation inside tight lockers and cabinets.

Self-priming operation allows mounting above the supply tank. The motor can run dry without damage and carries a built-in thermal protector. Wetted parts avoid metal contact, and the housing resists acid, alkali and corrosion. Maximum liquid temperature is 54°C (130°F).

Low current draw suits battery-powered builds, and the soft Santoprene mounting system isolates vibration from the vehicle body. One pump can supply up to three fixtures, running one or two at a time. Check hose clamp torque and inlet strainer condition at each service interval.

Key Features

• 3.8 Litre Per Minute Flow
  The diaphragm head moves 3.8 L/min at the rated pressure band for shower, tap and sink fixtures.

• Sealed Pressure Switch

  • Cuts in at 22 PSI and out at 35 PSI
  • Starts and stops the motor as the discharge valve opens and closes
  • Sealed housing protects the contacts from splash and dust

• Self-Priming Operation
  The pump lifts water from a tank mounted below the pump head without a manual prime.

• Dry-Run Capability
  The diaphragm and valves tolerate running without water, which covers an empty tank.

• Built-In Thermal Protector
  A thermal cut-out trips the motor if winding temperature rises above the safe limit.

• Compact 160 mm Body
  The short housing fits behind panels and inside narrow utility lockers.

• Multi-Fixture Supply
  One pump feeds up to three outlets, serving one or two fixtures at the same time.

• Santoprene Mounting Feet
  Compliant rubber mounts isolate pump vibration from the chassis and cabin panels.

• Corrosion-Resistant Wetted Parts
  No metal contacts the pumped liquid, and the housing resists acid and alkali attack.

• Low Current Draw
  The 12V motor suits auxiliary battery circuits on camper and overland builds.

Specifications

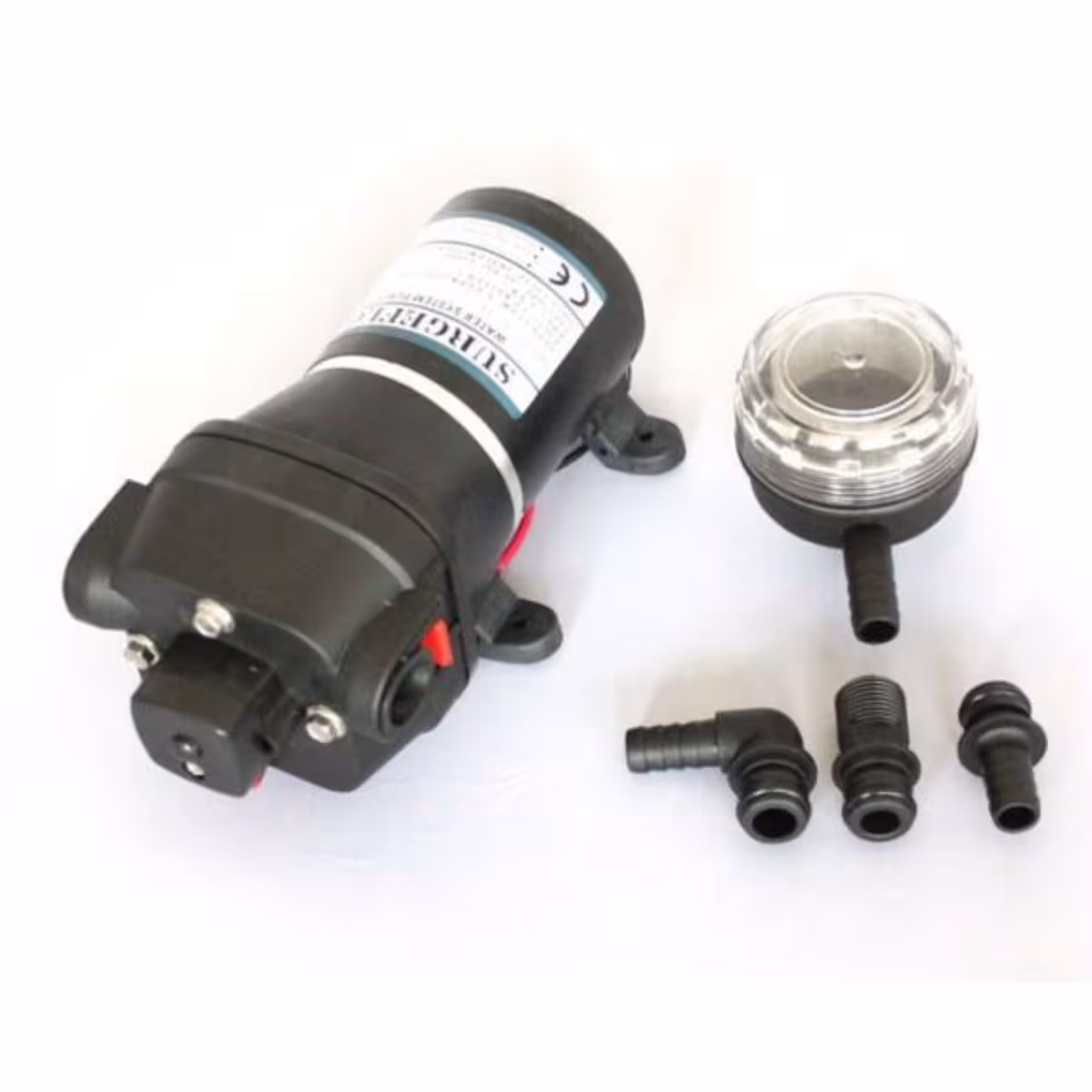

What’s in the Box

• Surgeflow compact water system pump

• Plug-in hose barb port fittings

• Santoprene mounting feet

• Fitting instructions

Why Choose the Surgeflow Pump

• The 3.8 L/min flow covers a shower head and a sink tap without a pressure vessel.

• Automatic demand switching removes the need for a manual inline switch at the tank.

• Self-priming behaviour allows a high pump mount with a low tank outlet.

• Dry-run tolerance protects the motor when the tank empties on a trip.

• The thermal cut-out adds a second protection layer on long continuous draws.

• Santoprene feet cut vibration transfer into cabin panels and cabinet frames.

• The 160 mm body fits service cavities that reject larger inline pumps.
