Front Runner RRAC029 Easy-Out Awning Brackets – 3mm Steel, Slimline II Side Mount

Side-Mount Bracket Kit for Roof Rack Awnings

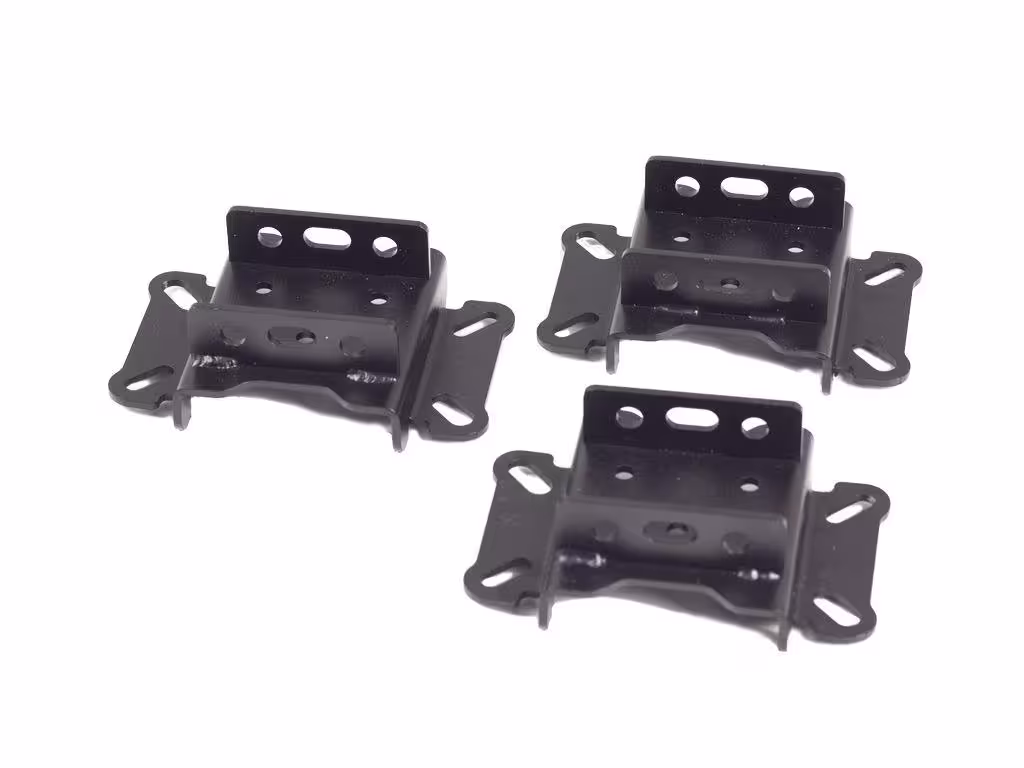

The Front Runner awning brackets RRAC029 mount an Easy-Out awning to the side rail of a Slimline II roof rack. The kit contains three brackets and a nuts-and-bolts set. Installers fit the brackets to the side channel without drilling the rack or the vehicle body.

Each bracket measures 49 mm long, 128 mm wide and 87.5 mm high, and the whole kit weighs 1.36 kg. The brackets are cut from 3 mm steel and finished in black powder coat. That coating matches the weather-resistant finish used across the Front Runner accessory range, so the hardware holds up to sun, dust and coastal salt.

Pre-drilled slots align with side-channel spacing between 1-1/2 inches and 2-1/8 inches. Adjustable bracket spacing lets the installer suit different awning lengths and mounting slot patterns. The brackets work on the driver or passenger side, which lets one kit serve either awning orientation. Beyond the Front Runner Easy-Out range, the same bracket accepts other popular awning brands with compatible slot spacing.

Installation requires basic hand tools and runs from the side channel outward. Bolts pass through the bracket slots into the rack channel, and the awning base then bolts to the bracket face. Three brackets spread the awning load along the rack rail rather than concentrating it at two points. Front Runner specifies the Slimsport and Slimpro Van Rack platforms need the RRAC182 side mount accessory bracket, which sells separately.

Key Features

• Three-Bracket Kit
  The kit ships three brackets plus a nuts-and-bolts set for one awning installation.

• 3mm Powder-Coated Steel
  The 3 mm steel body carries a black powder coat that resists corrosion and UV exposure.

• No-Drill Side Channel Mount
  Bolts pass through the bracket slots into the Slimline II side channel without body drilling.

• Adjustable Slot Spacing

  • Slots align with channels 1-1/2 inches to 2-1/8 inches apart
  • Bracket spacing adjusts for different awning lengths
  • Fits driver or passenger side
  • Accepts awnings with compatible mounting slot patterns

• Broad Awning Compatibility
  The brackets accept the Easy-Out awning range and other popular awning brands with matching slot spacing.

• Compact Bracket Profile
  Each bracket measures 49 x 128 x 87.5 mm and the full kit weighs 1.36 kg.

• Slimsport and Slimpro Note
  Those platforms require the RRAC182 side mount accessory bracket, which is not included.

Specifications

What’s in the Box

• 3 x awning brackets

• Nuts and bolts kit

• Fitting instructions

Why Choose This Bracket Kit

• Three brackets spread awning load along the rack rail instead of two points.

• The side-channel mount avoids drilling the rack or the vehicle body.

• Adjustable slot spacing covers multiple awning lengths and mounting patterns.

• 3 mm powder-coated steel holds up to sun, dust and coastal salt spray.

• One kit serves either side of the vehicle, which simplifies stock holding.

• The bracket face accepts several popular awning brands, not only the Easy-Out range.
