Eezi-Awn K9-154B T Bracket Awning Mount for K9 Load Bars
Original price was: KSh 10,600.00.KSh 7,900.00Current price is: KSh 7,900.00. ex VAT
Eezi-Awn K9-154B T Bracket Awning Mount for K9 Load Bars
| Model | K9-154B |
| Type | T bracket awning mount |
| Construction | Gusseted and welded steel |
| Mounting Interface | 8 mm T-slot |
| Awning Bolt Spacing | 64-89 mm |
| Load Bar Spacing | 82-152 mm |
| Compatible Awnings | Eezi-Awn Bat, Manta, Swift |
| Quantity | Pair (2 brackets) |
Same day Delivery
Delivery
We deliver to the address you provide. Nairobi is often same-day on business days.
Across the country
Delivery outside CBD starts from KES 300
Warranty 1 year
72-hour (3-day) returns
Description

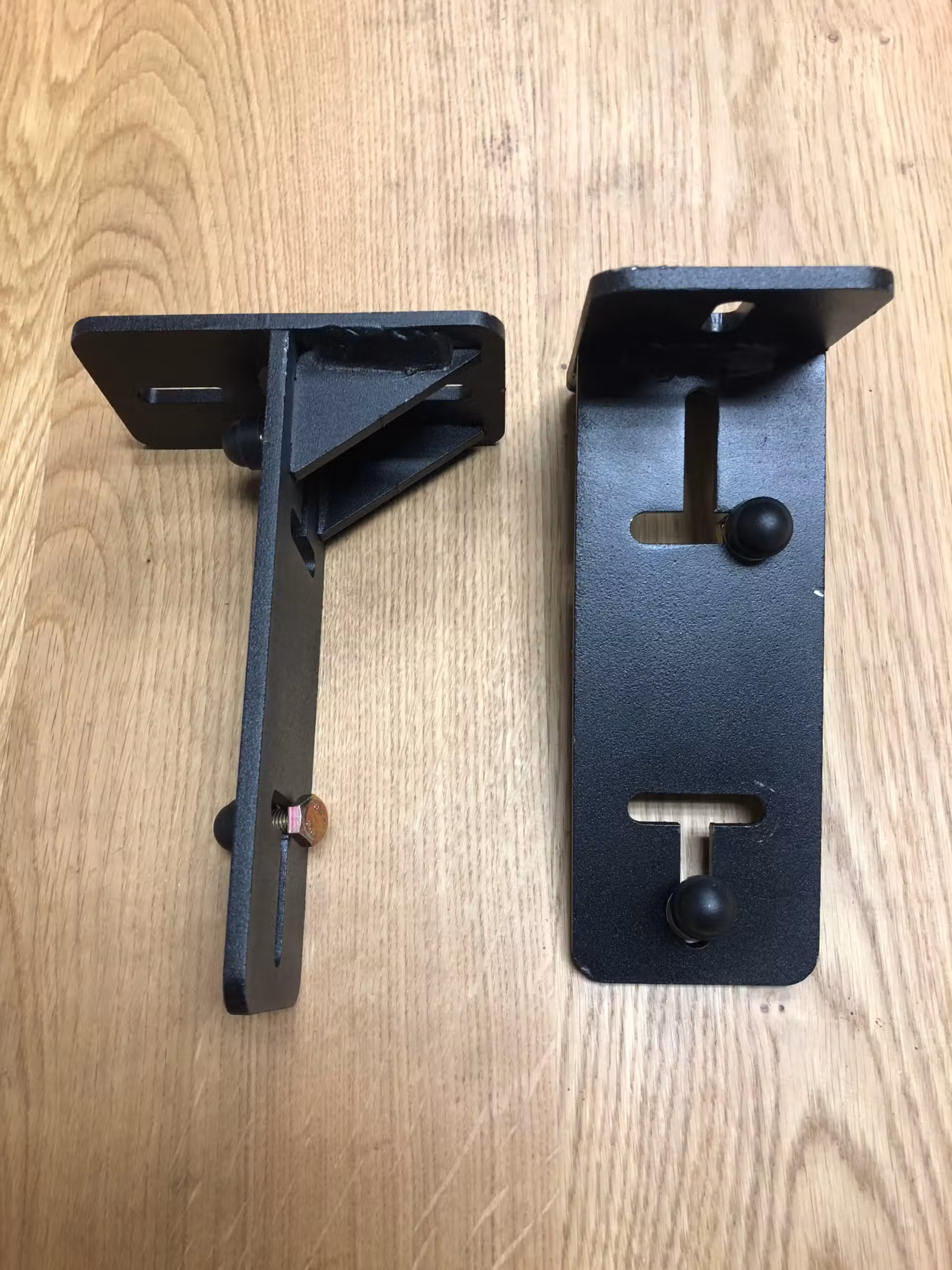

Steel Awning Mount for K9 Load Bars

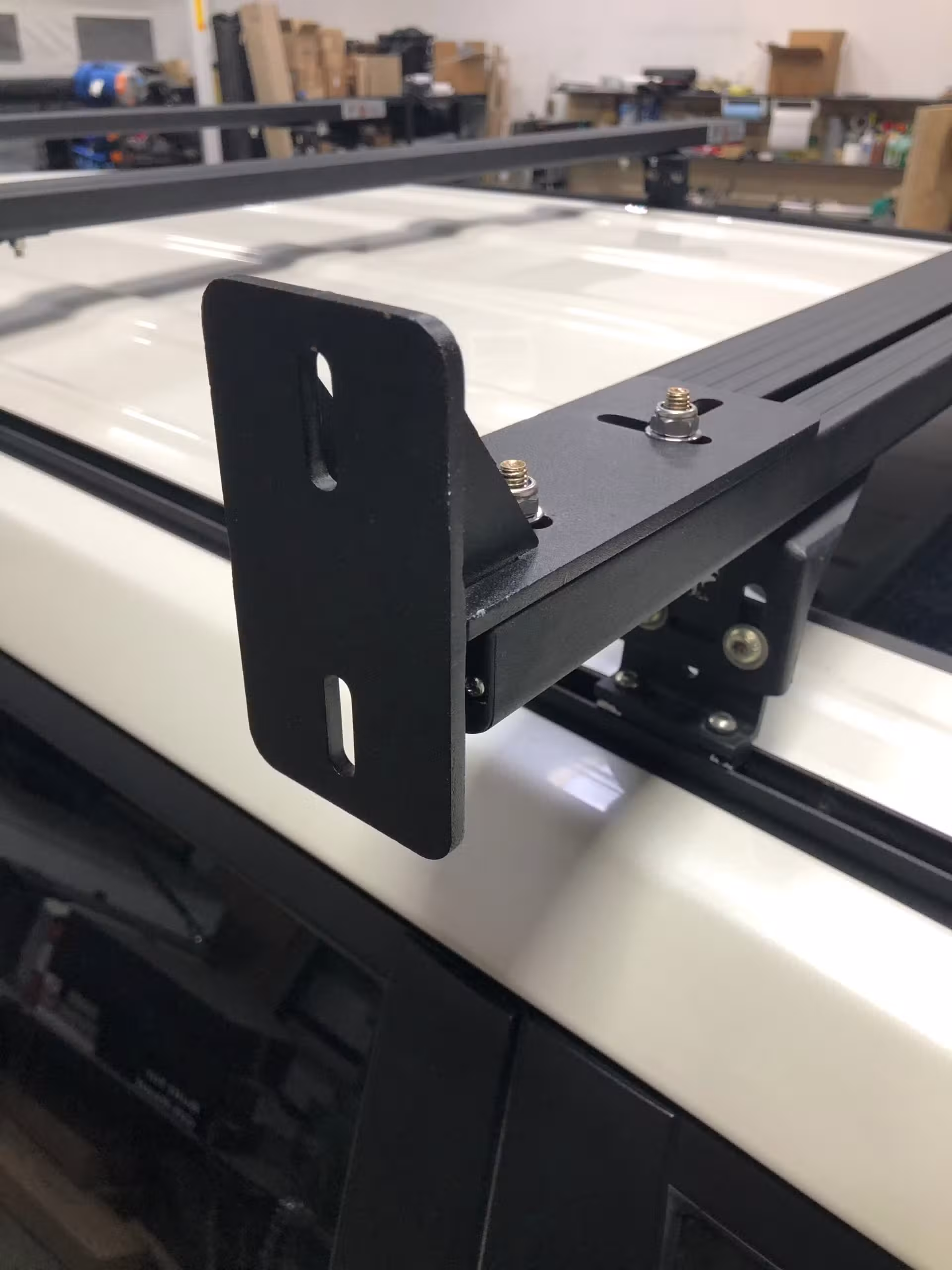

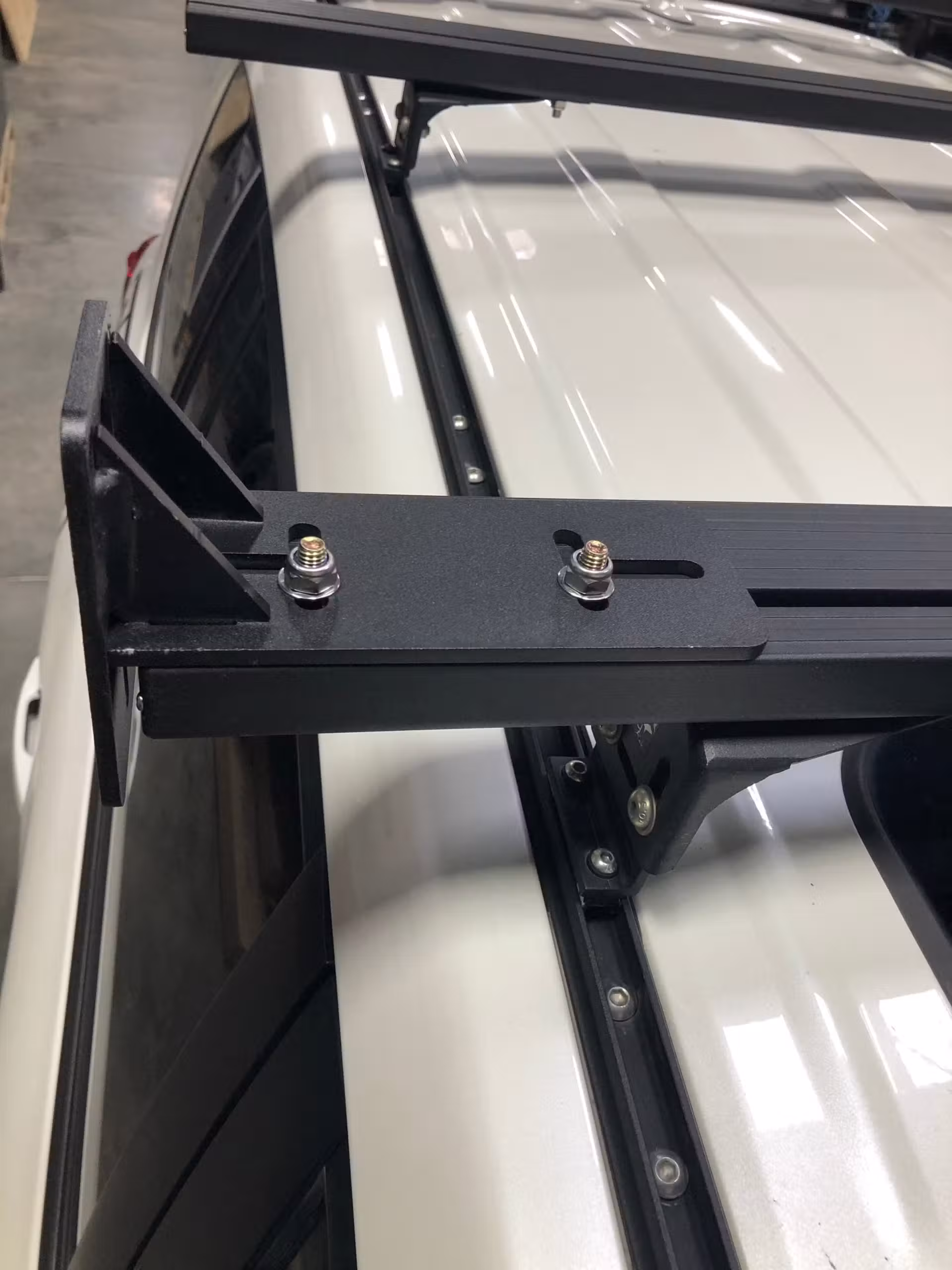

The Eezi-Awn K9 T bracket mounts awnings to K9 load bars and roof racks through an 8mm T-slot. Each set contains two brackets that create a vertical mounting face. The pair suits Bat, Manta and Swift awnings with 64-89 mm bolt spacing.
Gusseted and welded steel construction carries the awning load across the bracket body. A diagonal brace ties the vertical face to the T-slot base and limits flex under wind load. The M8 T-slot interface fits Eezi-Awn K9 load bars and compatible rack systems.
Mounting spacing on the load bar side spans 82 mm to 152 mm. The awning side accepts 64 mm to 89 mm bolt centres. The brackets also fit Rhino Rack Pioneer Platforms after minor modification. Each set ships as a matched pair.
Key Features
Gusseted and Welded Steel
The bracket body joins gusseted plates with welded seams for stiffness under awning load.8mm T-Slot Interface
The base slides into the M8 T-slot on K9 load bars and locks with standard hardware.Vertical Mounting Face
The upright plate gives the awning a flat surface for direct bolting.Diagonal Support Brace
A welded diagonal brace ties the upright to the base and reduces deflection.Wide Awning Compatibility
The bolt pattern covers Bat, Manta and Swift awnings with 64-89 mm spacing.Load Bar Spacing Range
The base accepts load bar or rack mounting spacings from 82 mm to 152 mm.Pair Supplied
Each set includes two brackets for a complete left and right awning mount.
Specifications
| Feature | Specification |
|---|---|
| Model | K9-154B |
| Type | T bracket awning mount |
| Construction | Gusseted and welded steel |
| Mounting Interface | 8 mm T-slot |
| Awning Bolt Spacing | 64-89 mm |
| Load Bar Spacing | 82-152 mm |
| Compatible Awnings | Eezi-Awn Bat, Manta, Swift |
| Compatible Racks | Eezi-Awn K9 load bars, Rhino Rack Pioneer (with modification) |
| Quantity | Pair (2 brackets) |
| Hardware | Mounting bolts not included |
| Finish | Coated steel |
| Application | Vehicle awning mounting |
What’s in the Box
Two K9-154B T brackets
Instruction sheet
Why Choose the K9-154B
The welded steel body resists flex when the awning deploys in crosswind.
The T-slot base fits K9 load bars without drilling or adapter plates.
The vertical face accepts direct bolting and C-channel adapters.
The pair covers both ends of the awning for balanced load transfer.
The 64-89 mm bolt range covers common Eezi-Awn awning footprints.
The bracket also adapts to Rhino Rack Pioneer platforms with minor work.
