SnoMaster SMDZ 15A Fuse Standard Blade for Portable Fridge Freezers

Spare Blade Fuse for SMDZ Cooling Units

The SnoMaster SMDZ 15A Fuse is a plug-in automotive blade fuse that protects the 12/24 V DC feed on SMDZ fridge freezers. It seats in the holder beside the DC connector on the cabinet. A blown element cuts the circuit before the compressor controller sees a fault current.

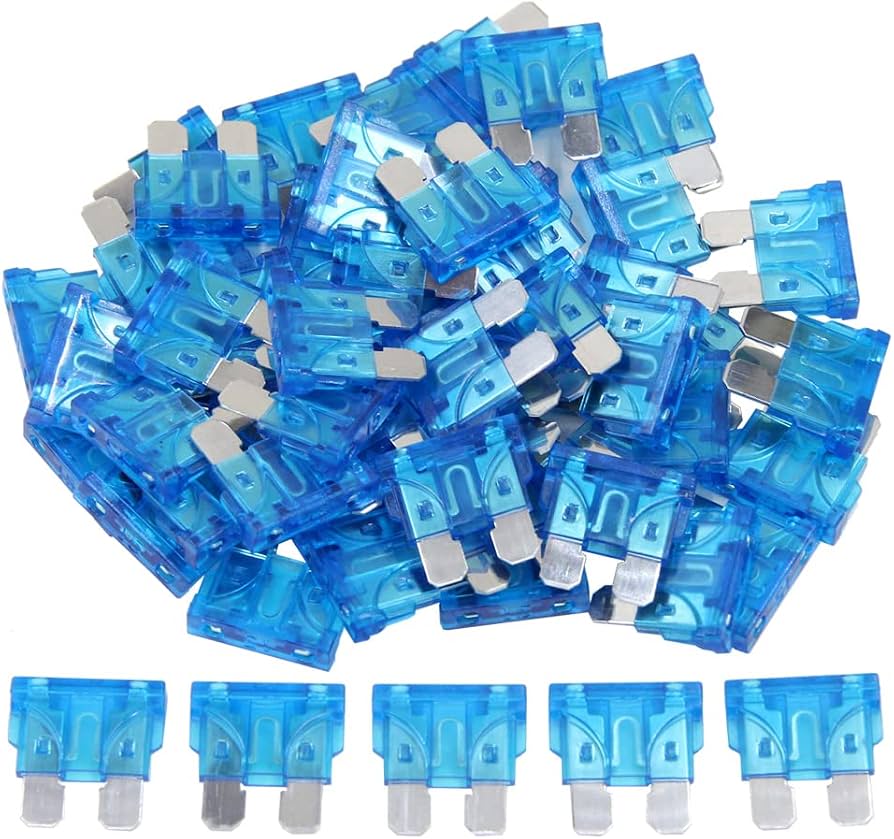

The fuse uses the ATO/ATC blade format with two parallel spade contacts on a 19 mm body. A 15 A element carries the compressor start current on most single and dual compartment models. The transparent housing exposes the metal strip, so a technician confirms a break without a multimeter.

The blue colour code marks the 15 A rating at a glance during roadside checks. The element is rated 32 V DC, which covers 12 V and 24 V systems with margin. Hold these fuses as service stock for vehicle, trailer, and workshop installations.

Key Features

• 15 A current rating
  The element carries the compressor start current on SMDZ DC circuits.

• ATO/ATC blade format
  Two parallel spade contacts plug into standard automotive fuse holders.

• 32 V DC element rating
  The fuse covers 12 V and 24 V nominal systems with voltage margin.

• Transparent plastic body
  The clear housing shows the metal strip for a visual continuity check.

• Blue colour code
  The moulded body colour identifies the 15 A rating without reading the marking.

• 19 mm body length
  The standard blade dimension fits the factory holder behind the DC inlet.

• Zinc alloy element
  The metal strip melts on overcurrent and isolates the supply before damage spreads.

• Field-replaceable
  Operators pull and reseat the fuse without tools or panel disassembly.

Specifications

What’s in the Box

• 100028 15 A blade fuse

Why Choose This Spare Fuse

• A 15 A blade fuse is the first part to check when a cooling unit loses its DC feed.

• The clear body and blue housing colour speed up diagnosis during field servicing.

• The 32 V DC rating suits both 12 V and 24 V vehicle electrical systems.

• Standard ATO dimensions fit the factory holder, so no adapter or rewiring is required.
