Generic USB to USB Cable 5M – USB 2.0 Type-A Male to Male, 480 Mbps, Shielded Data Lead

Extended USB 2.0 Link for Host-to-Peripheral Connections

The Generic USB cable 5M is a passive USB 2.0 assembly that carries data between a host port and a peripheral across a five-metre span. It terminates in USB-A male plugs at both ends and uses 28/24 AWG tinned copper conductors. The PVC jacket measures 4.5 mm in diameter and suits cable trays and desk runs.

The cable supports the USB 2.0 high-speed ceiling of 480 Mbps and falls back to 12 Mbps and 1.5 Mbps on lower-speed devices. Aluminium foil and braided shielding wrap the data pair to limit EMI ingress. Gold-plated contacts resist corrosion across repeated mating cycles.

At five metres the assembly sits within the USB 2.0 passive limit, so bus-powered peripherals still receive adequate voltage. Applications include printers, scanners, external drives, card readers and USB hubs. The lead is not a charging cable for high-current fast-charge protocols. It carries standard 5 V bus power only.

Key Features

• USB 2.0 High-Speed Signalling
  The cable carries 480 Mbps across its full five-metre length and negotiates lower rates with older devices.

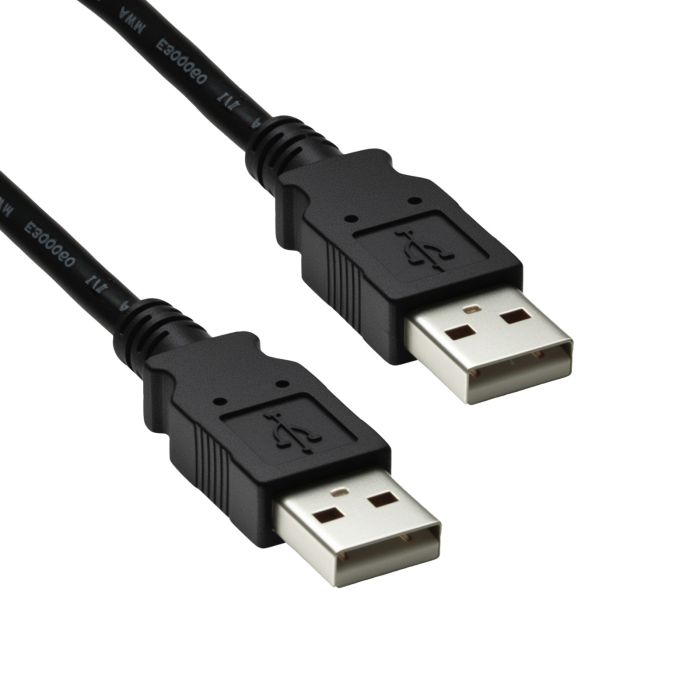

• Type-A Male to Male Termination
  Both ends use USB-A male plugs for host-to-peripheral links such as printer or external drive connections.

• Shielding and Conductor Build

  • Tinned copper conductors in 28/24 AWG gauge.
  • Aluminium foil plus braided shield against EMI and RFI.
  • PVC jacket at 4.5 mm outer diameter.

• Gold-Plated Contacts
  Nickel underplate with gold flash holds contact resistance stable through repeated insertions.

• Five-Metre Passive Run
  The length stays inside the USB 2.0 passive limit for bus-powered peripherals with modest current draw.

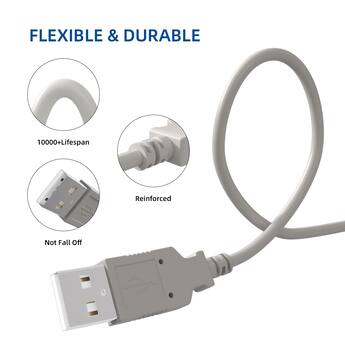

• Moulded Strain Relief
  Overmoulded boots at each plug limit conductor flex fatigue at the connector shell.

• RoHS-Compliant Materials
  The jacket and conductor plating meet RoHS restrictions on hazardous substances.

Specifications

What’s in the Box

• 5 m USB 2.0 Type-A male to male cable

• Protective caps on both connectors

Why Choose This USB Lead

• The five-metre run reaches across a desk or bench without an intermediate hub.

• Foil and braid shielding hold signal integrity beside monitors and power supplies.

• Gold-flashed contacts keep resistance low through repeated patching.

• Moulded strain relief protects the solder joints during tight cable routing.

• The passive design needs no external power for bus-powered peripherals within the current budget.
