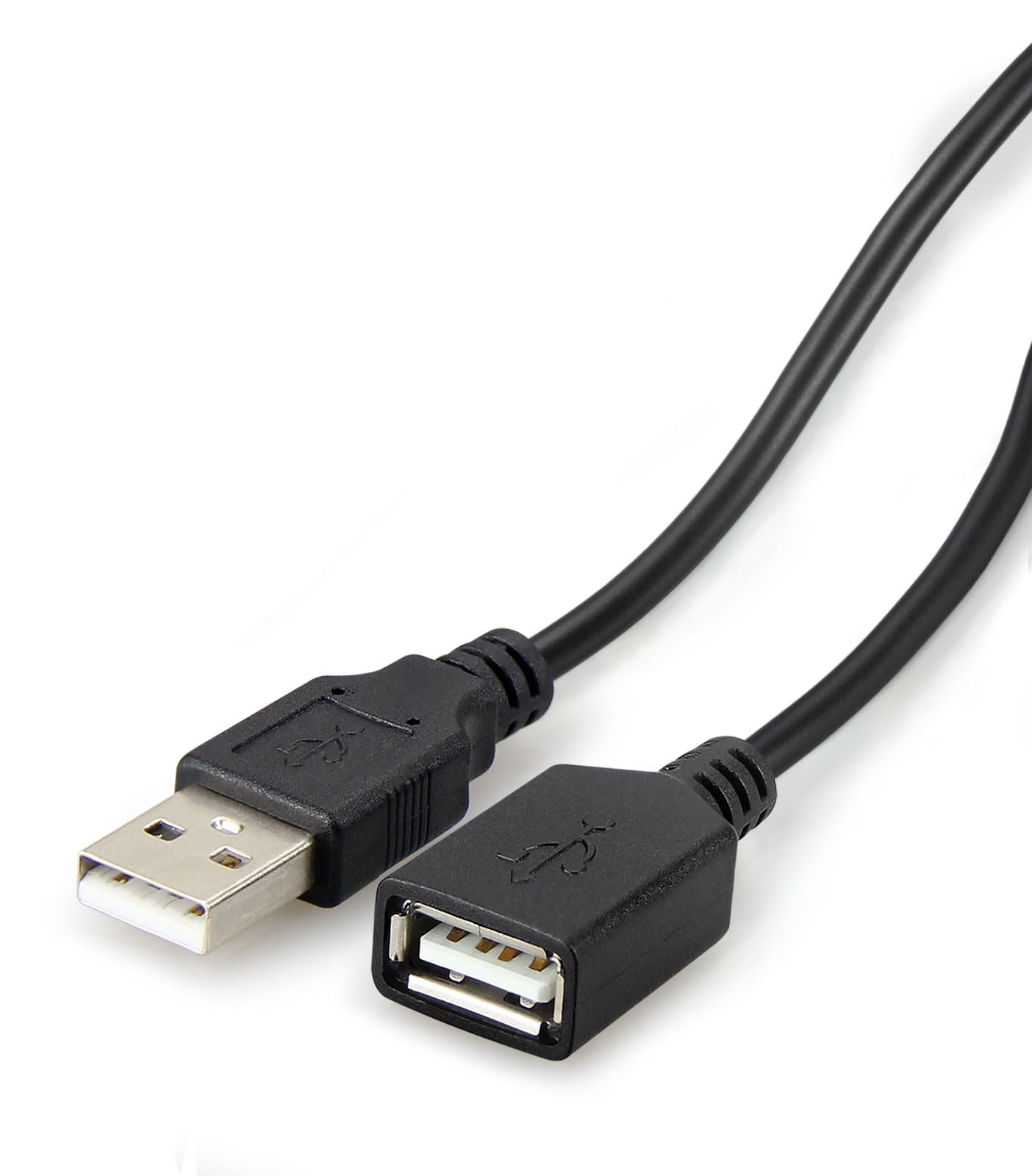

USB 2.0 Extension Cable 5m Type-A Male to Female Shielded
Original price was: KSh 700.00.KSh 600.00Current price is: KSh 600.00. ex VAT
USB 2.0 Extension Cable 5m Type-A Male to Female Shielded
| Standard | USB 2.0 |
| Connectors | Type-A male to Type-A female |
| Length | 5 m |
| Maximum data rate | 480 Mbps |
| Power gauge | 24 AWG |
| Data gauge | 28 AWG |
| Shielding | Aluminium-mylar foil with drain wire |
| Jacket diameter | Approx. 4.8 mm |
| Bend radius | 48 mm |
Same day Delivery
Delivery
We deliver to the address you provide. Nairobi is often same-day on business days.
Across the country
Delivery outside CBD starts from KES 300
Warranty 1 year
72-hour (3-day) returns
Description
Passive USB 2.0 Extension for Host and Device Separation
The USB extension cable 5m moves a USB 2.0 Type-A port up to five metres from the host. It carries 480 Mbps high-speed data and 5V bus power over one run. Moulded male and female connectors seat in standard ports without adapters.
Tinned copper conductors use 24 AWG on the power pair and 28 AWG on the data pair. Aluminium-mylar foil with a drain wire shields the twisted pair from induced noise. The PVC jacket measures about 4.8 mm and tolerates a 48 mm bend radius.
Five metres is the maximum passive run the USB 2.0 specification permits for high-speed links. Bus-powered devices draw up to 500 mA across the length, and voltage drop climbs with current. Route the cable clear of mains wiring, and add a powered hub for current-hungry peripherals.
Key Features
Five-Metre Passive Run
The cable reaches the USB 2.0 length ceiling without an inline repeater or power supply.Type-A Male to Type-A Female
One end plugs into a host port and the other presents a socket for the device lead.Shielded Twisted-Pair Construction
- Aluminium-mylar foil wrap with drain wire
- Twisted data pair limits differential noise pickup
- Tinned copper strands resist corrosion at the connector crimp
480 Mbps High-Speed Signalling
The cable passes USB 2.0 high-speed, full-speed, and low-speed traffic at the rated data bandwidth.Moulded Strain Relief
Overmoulded connector bodies absorb flex at the plug entry and protect the solder joints.Flexible PVC Jacket
The round 4.8 mm jacket bends to a 48 mm radius for routing behind desks and cabinets.
Specifications
| Feature | Specification |
|---|---|
| Standard | USB 2.0 |
| Connector A | USB Type-A male |
| Connector B | USB Type-A female |
| Length | 5 m |
| Maximum data rate | 480 Mbps |
| Power conductor gauge | 24 AWG |
| Data conductor gauge | 28 AWG |
| Conductor material | Tinned copper |
| Shielding | Aluminium-mylar foil with drain wire |
| Jacket material | PVC |
| Jacket diameter | Approx. 4.8 mm |
| Minimum bend radius | 48 mm |
| Rated current | 500 mA bus-powered devices |
| Operating temperature | 0°C to 70°C |
| Storage temperature | -10°C to 80°C |
| Compliance | RoHS, REACH |
| Colour | Black |
What’s in the Box
5 m USB 2.0 Type-A extension cable
Protective connector caps
Why Choose the Shielded Extension Lead
Repositions dongles, card readers, and control interfaces without moving the host chassis.
Foil shielding and a twisted data pair reduce retries on links routed past power supplies.
The 24 AWG power pair holds a usable 5V rail for low-draw peripherals over the full length.
Moulded strain relief extends service life where the cable flexes at a cabinet entry.
Passive construction needs no drivers, so the lead works on any host with a Type-A port.
