DisplayPort to VGA Converter Active Adapter 1920×1200 60Hz

Active Signal Conversion for Legacy Displays

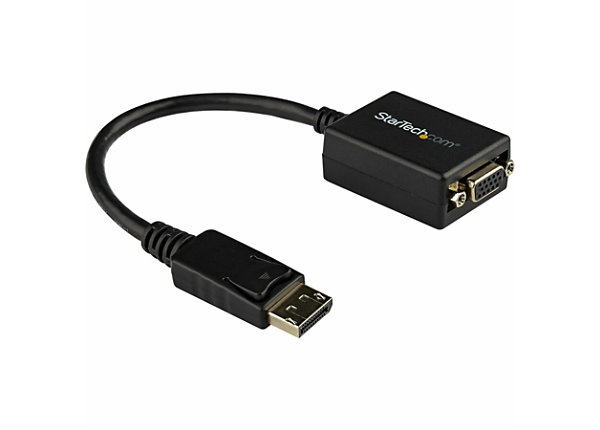

The DisplayPort to VGA Converter translates a DisplayPort 1.2 stream into an analog VGA output for projectors, monitors and KVM consoles. An active chipset handles the conversion, so the adapter works with dual-mode and non-dual-mode DisplayPort sources. The compact housing measures 220 x 35 x 8 mm and weighs 27 g.

The converter supports a maximum resolution of 1920 x 1200 at 60 Hz. It carries 720p and 1080p video modes and passes EDID data so the source selects a compatible timing. A VGA DAC working range up to 270 MHz keeps analog output within VESA clock jitter limits. The adapter draws power from the DisplayPort source and needs no external supply.

Plug-and-play operation needs no driver on Windows, macOS or Linux. Standby detection places the unit in a low-power state when the monitor disconnects. The molded housing resists shielding flex at the connector junction. Operating temperature spans 0 °C to 70 °C at 10-85% relative humidity.

Key Features

• Active Conversion Chipset
  An Analogix ANX9833 class converter translates DisplayPort signalling into analog RGBHV output without relying on source dual-mode support.

• Resolution and Timing Support

  • Maximum 1920 x 1200 at 60 Hz
  • 720p and 1080p video modes
  • EDID pass-through for automatic mode selection

• DisplayPort 1.2 Input
  The male DP connector accepts HBR2 links at 5.4 Gbps, 2.7 Gbps and 1.62 Gbps.

• VGA Output
  A 15-pin VGA female port with mounting nuts secures the display cable against pull-out.

• Bus-Powered Operation
  The adapter draws 480 mW active and 8 mW standby from the DisplayPort source.

• Plug-and-Play Design
  The unit needs no driver installation and works across Windows, macOS and Linux hosts.

• Standby Detection
  The chipset enters a low-power state when the monitor disconnects and wakes on reconnection.

• Compact Molded Housing
  The 27 g body fits behind equipment racks and inside laptop bags.

Specifications

What’s in the Box

• DisplayPort to VGA active converter

• Quick start guide

Why Choose This Adapter

• The active chipset drives legacy VGA displays from DisplayPort sources that lack dual-mode output.

• EDID pass-through removes manual resolution setup on projectors and older monitors.

• Bus power eliminates a separate adapter at lecterns and wall-mounted equipment.

• The 1920 x 1200 ceiling covers WUXGA panels and full-HD projectors.

• Standby detection cuts draw when the display is switched off or unplugged.

• The 27 g body and short lead suit travel between meeting rooms.
