Front Runner Tie Down Rings / Eye Nuts RRAC012 Black Pair

Rack Anchor Points for Secure Loads

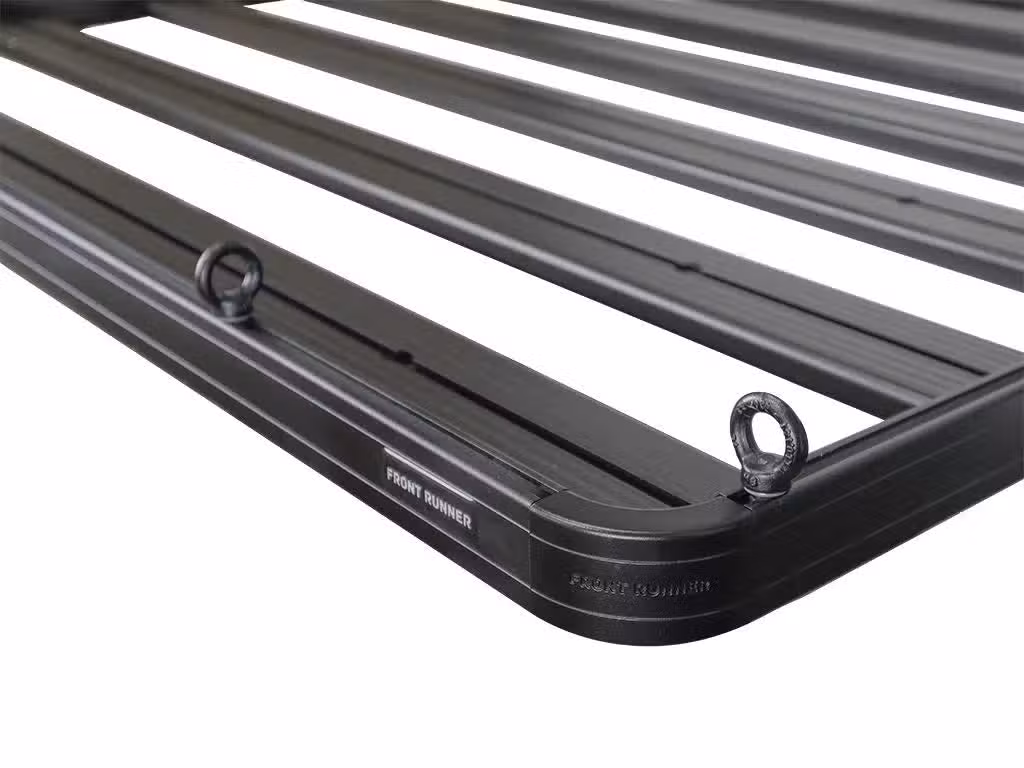

The Front Runner tie down rings mount to the T-slots on Front Runner roof racks and load bars, creating additional anchor points for straps and cargo. The set ships as a pair with two M8 eye nuts, two nylon washers and two hex bolts. Each ring slides into the rack channel and tightens by hand without tools.

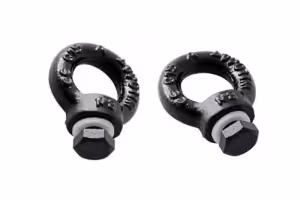

The eye nut uses galvanised steel with a black powder coat that resists corrosion on exposed vehicle roofs. The ring measures 20 mm inner diameter, which accepts Stratchits, bungee cords and standard hook-ended straps. The stud plate measures 19.5 mm wide by 33.5 mm long by 5.75 mm high, and the assembled unit measures 90 x 40 x 20 mm at 0.12 kg per pair.

Installation requires no drilling on Front Runner racks. The M8 bolt slides into the top, side or bottom rail channel and the eye nut threads on by hand. The nylon washer sits between the nut and the slat to protect the powder coat and reduce loosening from vibration. Position the rings wherever a load needs a fixing point, then remove them when the rack carries other accessories.

Key Features

• M8 Eye Nut Assembly
  Each ring threads onto an M8 bolt that slides directly into the rack T-slot.

• Black Powder-Coated Galvanised Steel
  The finish resists rust and blends with black Front Runner rack hardware.

• Tool-Free Installation

  • Slides into top, side or bottom rack channels
  • Hand-tightened eye nut with no spanner required
  • Removable and repositionable between trips

• 20 mm Inner Ring Diameter
  The opening accepts hook-ended straps, bungee cords and carabiners.

• Nylon Washer Interface
  The washer protects the rack coating and adds friction against vibration loosening.

• Pair Pack
  Two complete ring assemblies ship in one set for balanced left and right anchoring.

Specifications

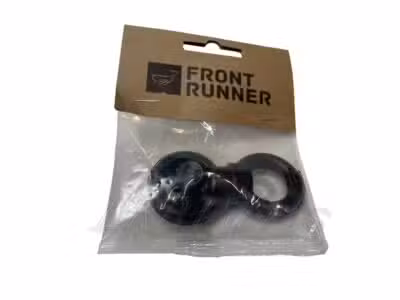

What’s in the Box

• 2x M8 eye nut

• 2x M8 nylon washer

• 2x M8 hex bolt

Why Choose These Rack Rings

• The pair adds two removable anchor points without drilling or permanent modification.

• Galvanised steel and powder coat handle sun, rain and road spray on exposed racks.

• The 20 mm eye accepts common strap hooks and carabiners used for overland loads.

• Hand tightening allows repositioning between cargo layouts without tools.

• The nylon washer protects the rack finish and limits vibration loosening on corrugated roads.

• The compact 0.12 kg pair adds negligible weight to a roof rack build.
