Front Runner LASD103 No 3 Leg Diagonal 155mm Pair

Angled Roof Rack Legs for Sloped Rooflines

The Front Runner LASD103 is a matched pair of 155 mm diagonal legs for Slimline II roof rack builds. Each leg angles the tray or load bar to suit curved and sloping vehicle roofs. The pair restores correct mounting geometry where vertical legs cannot align.

Each leg provides 155 mm of diagonal elevation. The assembly uses black epoxy powder-coated T6 aluminium with 3CR12 stainless steel fasteners. The diagonal geometry transfers load into the roof gutter without weakening the rack structure. A matched pair keeps symmetry across the vehicle centreline.

These legs integrate with the Slimline II modular system and its T-slot profiles. The top and bottom slots accept standard 8 mm bolts, matching tray slats and edge profiles. Installers fit the legs to the gutter mount or foot rail, then set the tray angle before final torque. Check bolt torque after the first long drive.

Use the pair on 60 and 80 series Land Cruiser builds and other vehicles with pronounced roof curvature. The 155 mm diagonal height positions the tray clear of the roof crown. Combine with No 2 straight legs where the kit calls for a mixed leg set. The black finish matches existing rack hardware.

The powder coat resists stone chips and road salt on coastal routes. Stainless fasteners limit galvanic corrosion where the legs meet aluminium tray sections. Inspect the mounting bolts at each service interval and re-torque to the rack specification. Replace any leg that shows deformation after an impact.

Each carton contains two legs, one left and one right, so a single order completes one diagonal station. Confirm the roof curve before ordering, because the 155 mm height suits moderate slopes rather than flat roofs. A flat roof uses straight legs from the same Slimline II range.

Key Features

• Diagonal 155 mm Elevation
  Each leg lifts the tray 155 mm at an angle to match sloped rooflines.

• Matched Left and Right Pair
  The carton supplies two legs for one symmetrical diagonal station.

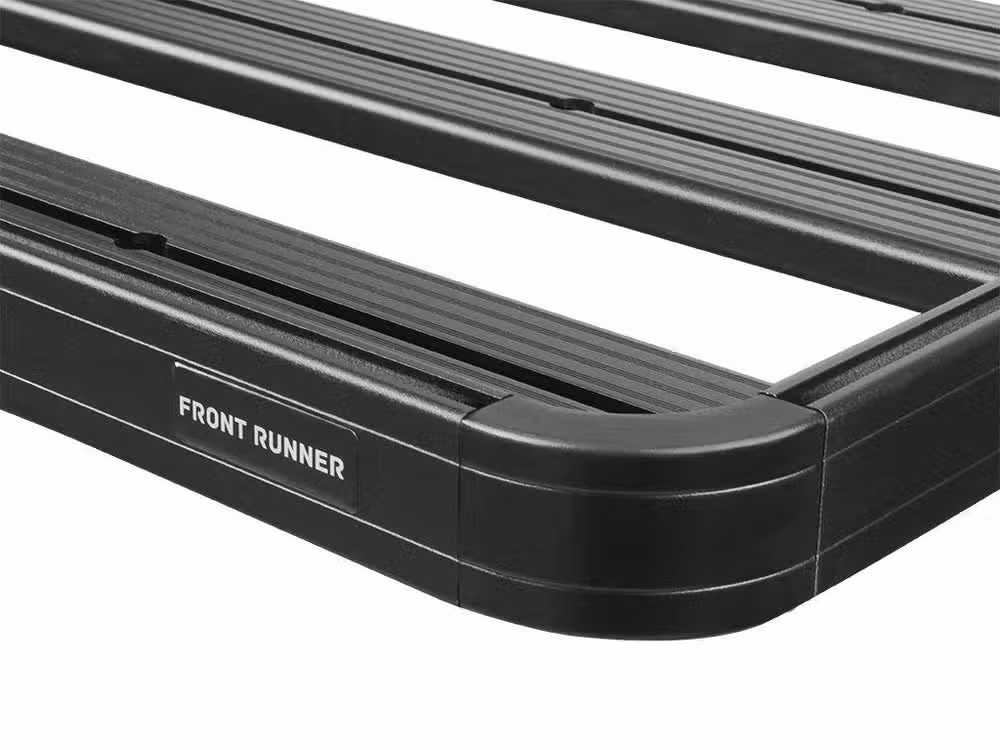

• Slimline II Integration

  • Fits Slimline II tray slats and edge profiles

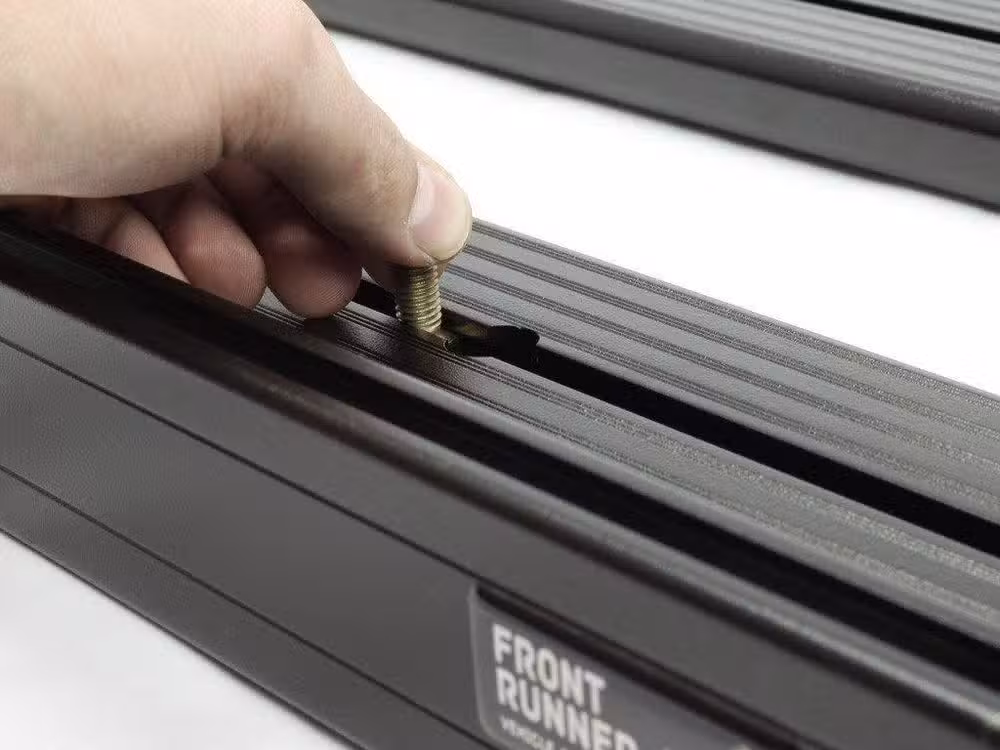

  • Accepts standard 8 mm T-slot bolts
  • Works with gutter mounts and foot rails

• T6 Aluminium and 3CR12 Stainless
  The leg body and fasteners resist corrosion on coastal and dusty routes.

• Black Epoxy Powder Coat
  The finish matches existing rack hardware and limits stone-chip damage.

Specifications

What’s in the Box

• Two LASD103 diagonal legs, left and right

Why Choose This Leg Pair

• The angled geometry restores correct tray alignment on curved roofs.

• A matched pair keeps the rack symmetrical across the vehicle centreline.

• T6 aluminium and stainless fasteners resist corrosion on coastal routes.

• The 8 mm T-slot interface matches standard Slimline II hardware.

• The black powder coat blends with existing rack components.
