Front Runner RRAC103 Recovery Device & Gear Holding Side Brackets

Articulating Side Mounts for Recovery Boards

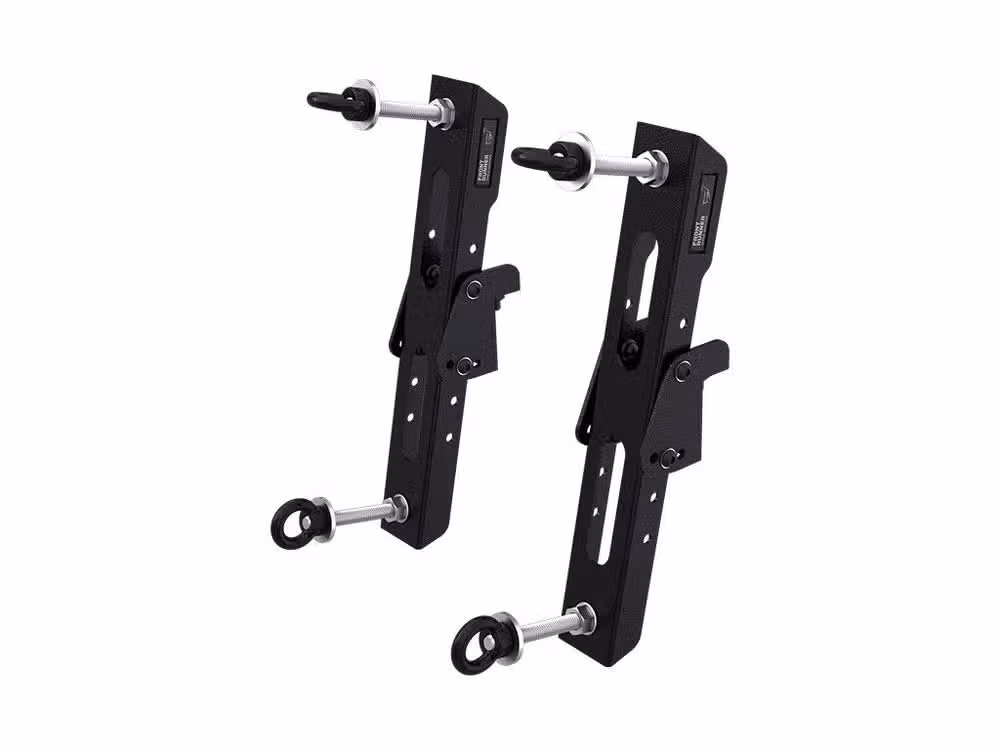

The Front Runner RRAC103 is a pair of articulating side brackets that carry recovery boards and gear on the side profile of a Slimline II roof rack. Two brackets ship in the kit with stainless fasteners. Each bracket measures 313 mm long, 65 mm wide and 178 mm high.

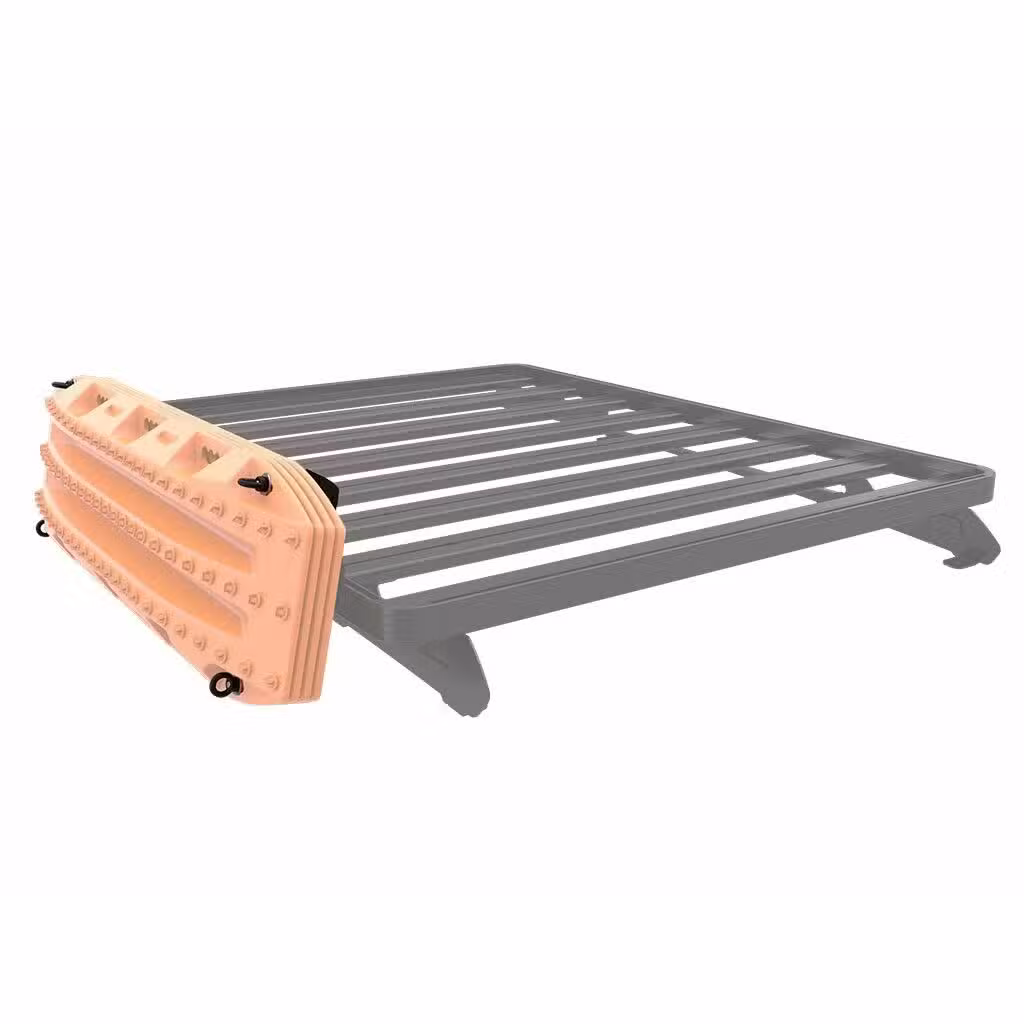

The brackets hold MAXTRAX, TRED Pro and other recovery devices with matching hole spacing. They also take the Pro Ski, Snowboard and Fishing Rod Carrier, which sells separately. Height and angle adjust to suit different vehicle profiles and body lines.

Construction uses black powder-coated 3CR12 stainless steel with stainless steel fasteners. The coating matches the finish on Slimline II racks. A pair weighs 4.4 kg, which keeps added mass low on the rack side profile.

Stud mounting dimensions are 230 mm between inner hole centres and 270 mm between outer hole centres. The kit includes two bolt types, so crews can hold one pair or two pairs of boards. Swap the bolts for the MAXTRAX Mounting Pin Set to lock boards against removal.

Fitment targets the Slimline II rack and the original Slimline rack. The Slimsport rack range needs the separate Slimsport Side Mount Accessory Bracket before these units will seat. Confirm the rack model before ordering to avoid a return.

Installation runs along the side profile, so the load sits outside the tray footprint. That placement frees deck space for cargo boxes, fridges and jerry cans. Inspect the bracket bolts after the first long trip and re-torque to specification.

Key Features

• Adjustable Height and Angle
  Both brackets tilt and rise to follow the vehicle side profile.

• 3CR12 Stainless Steel Build
  The bracket body carries a black powder coat that resists road salt and grit.

• Dual Bolt Kits Included

  • One bolt set for a single pair of boards
  • A second set for two stacked pairs
  • Stainless steel fasteners throughout
  • Pin set upgrade available for locking

• Side Profile Mounting
  The brackets bolt to the rack side channel and leave the tray deck clear.

• Recovery Board Compatibility
  Hole spacing suits MAXTRAX, TRED Pro and similar rescue devices.

• Carrier Compatibility
  The same brackets hold the Pro Ski, Snowboard and Fishing Rod Carrier.

• Rack Generation Coverage
  Fits Slimline II and original Slimline racks, with an adapter for Slimsport.

Specifications

What’s in the Box

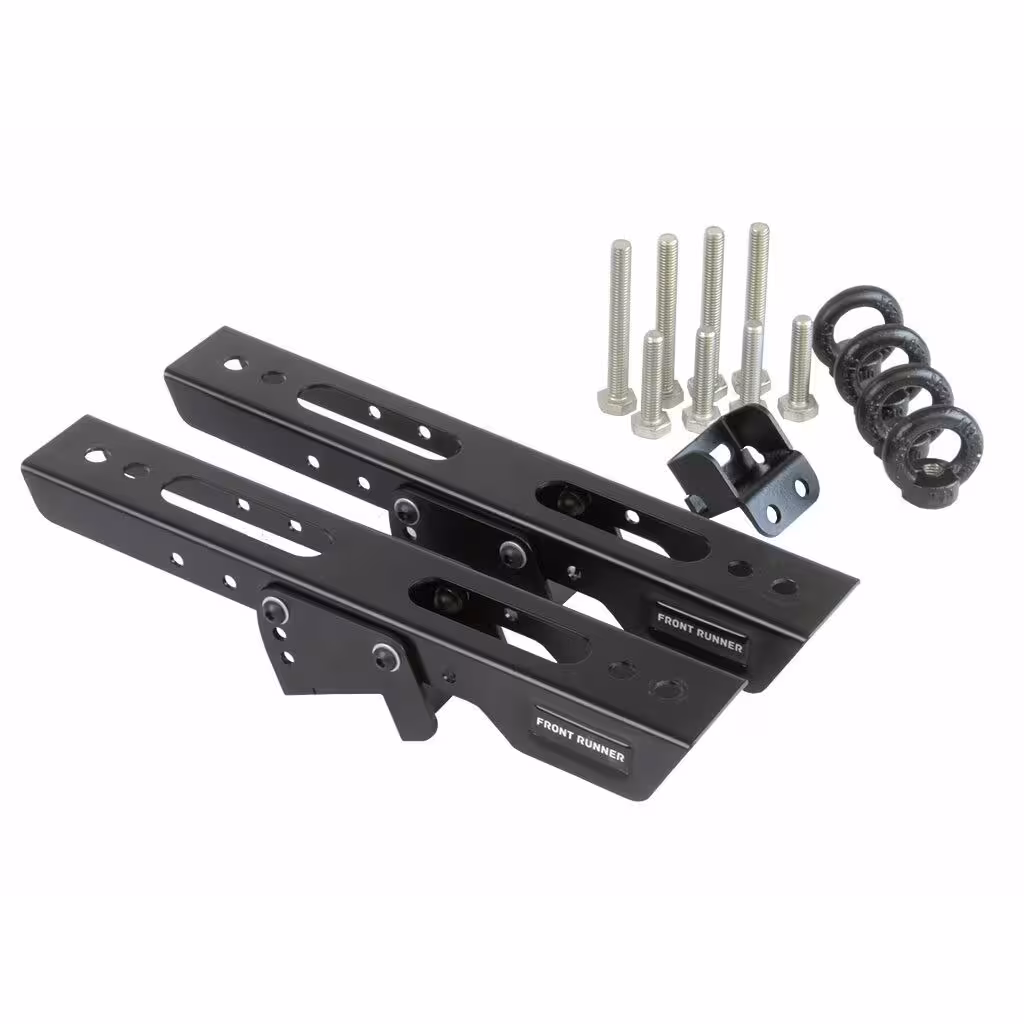

• 2 x adjustable side brackets

• Two bolt sets for single or double board pairs

• Installation hardware and fitting instructions

Why Choose These Side Brackets

• The articulating arms suit vehicles with sloped or stepped side panels.

• Side mounting keeps recovery boards out of the main cargo deck.

• Stainless construction holds up to coastal air and winter road salt.

• The dual bolt sets cover one-pair and two-pair board loads without extra parts.

• The same bracket pair serves recovery boards and the ski and rod carrier.
