Front Runner RRAC119 Thru Axle Adapter for Fork Mount Bike Carrier

Bike Rack Adapter for Thru Axle Hubs

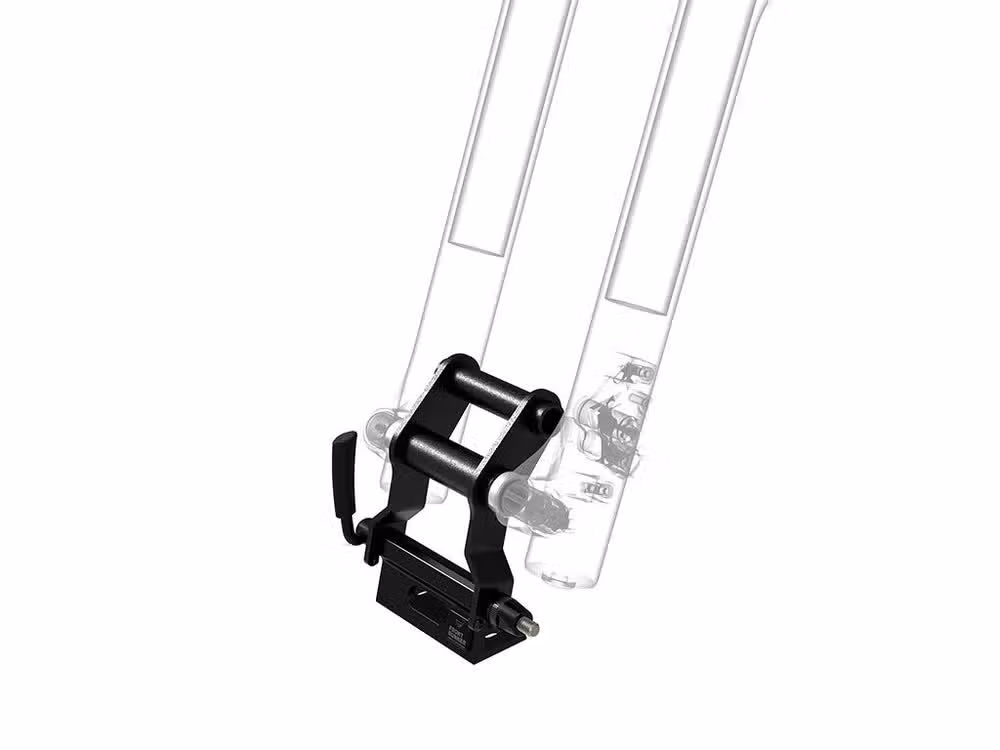

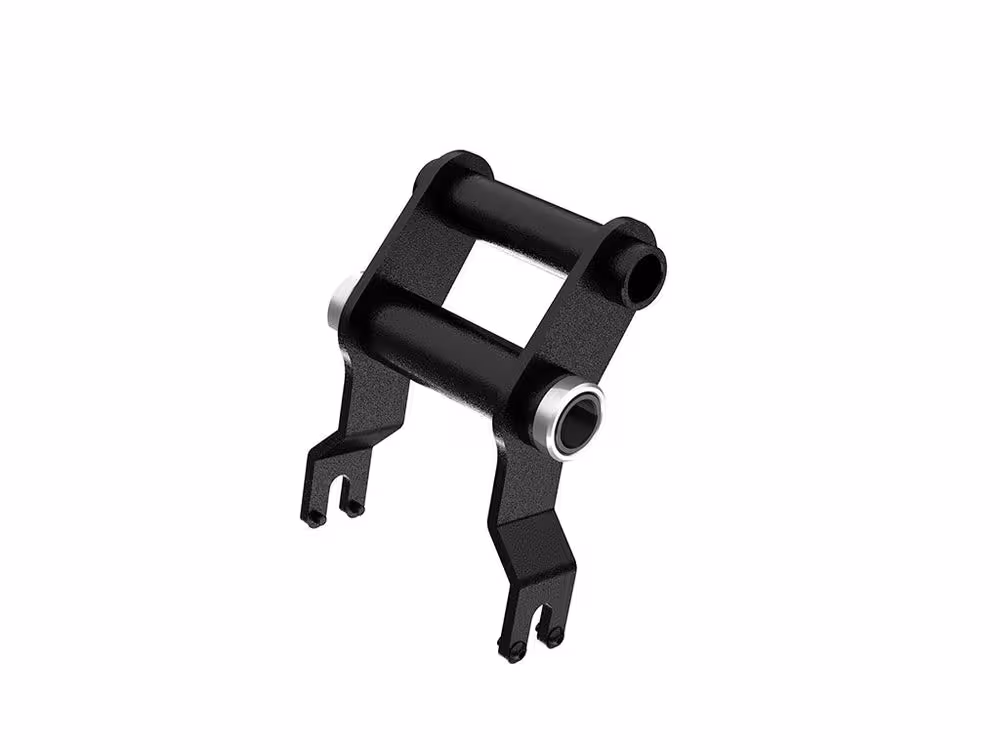

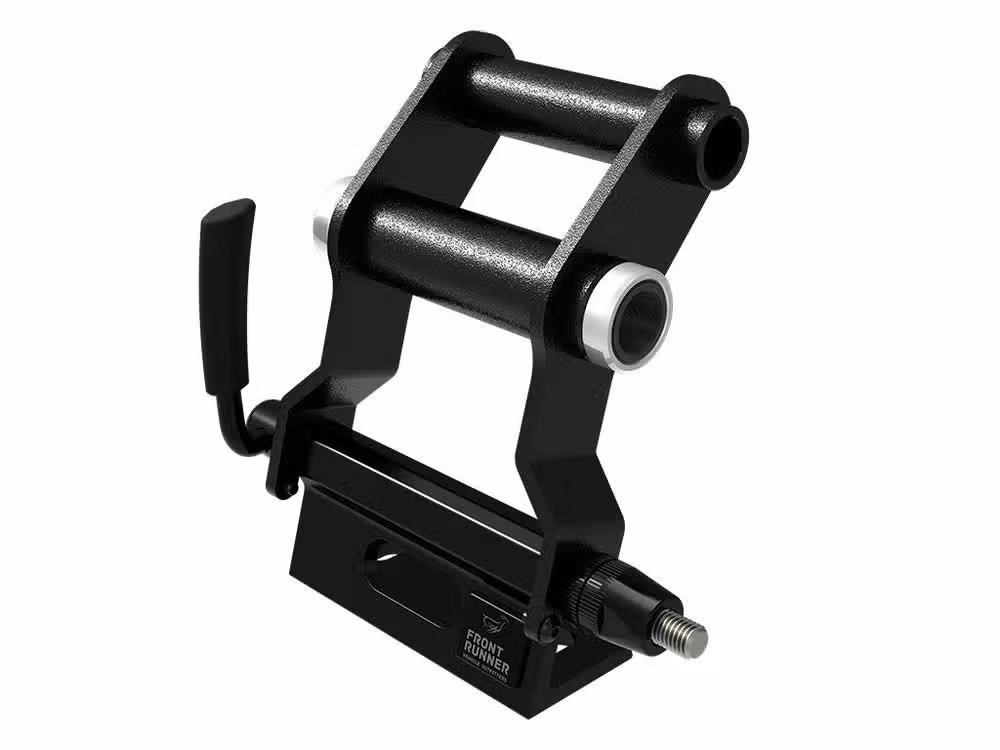

The Front Runner thru axle adapter lets a fork-mount bike carrier accept modern thru axle hubs instead of traditional quick-release forks. It fits 100 x 15 mm and 110 x 20 mm thru axles, plus 110 x 15 mm Boost hubs. The adjustable body sets the adapter at the correct angle for the fork dropout.

The adapter measures 143 mm high, 106 mm wide and 71 mm long, and weighs 400 g. It clamps onto the existing fork mount through the quick-release skewer, so no new holes are needed on the rack. The unit is designed for use with a Front Runner fork mount bike carrier and does not work as a stand-alone mount.

Installation follows a short sequence. Loosen the quick-release on the fork mount, place the adapter onto the mount, then adjust the skewer and set the adapter to the required angle. Fit the bike fork into the adapter and tighten the skewer. Remove the bike and re-check torque before travel.

Front Runner lists the adapter under part number RRAC119. The finish matches the black powder-coated carrier hardware. Confirm the fork width and axle diameter before ordering, and check that the bike carrier is fitted to a Slimline II rack or Front Runner load bars.

Key Features

• Thru Axle Compatibility
  Accepts 100 x 15 mm and 110 x 20 mm thru axles plus 110 x 15 mm Boost hubs.

• Adjustable Angle Body

  • Sets the adapter angle to suit the fork dropout
  • Clamps via the existing fork mount quick-release
  • No drilling or extra rack hardware required

• 400 g Adapter Weight
  The aluminium body adds little weight to the carrier assembly.

• Fork Mount Integration
  Designed for Front Runner fork mount bike carriers, not for stand-alone use.

• 143 x 106 x 71 mm Footprint
  The compact body clears the fork legs and the carrier frame.

• Powder-Coated Finish
  The black coating matches the Front Runner rack hardware.

Specifications

What’s in the Box

• RRAC119 thru axle adapter

• Fitting instructions

Why Choose This Thru Axle Adapter

• The adapter brings modern thru axle bikes onto an existing fork mount carrier.

• Three axle standards are covered by one part, which simplifies fleet fitting.

• The adjustable angle body aligns with different fork dropout shapes.

• Clamping through the existing quick-release avoids new drilling on the rack.

• At 400 g, the adapter adds negligible load to the carrier and roof rack.

• The black powder coat matches the surrounding Front Runner hardware.
