Front Runner KRTL028T Slimline II Roof Rack Kit Toyota Land Cruiser 200 Lexus LX570 2166mm

Full-Length Cargo Platform for the 200 Series

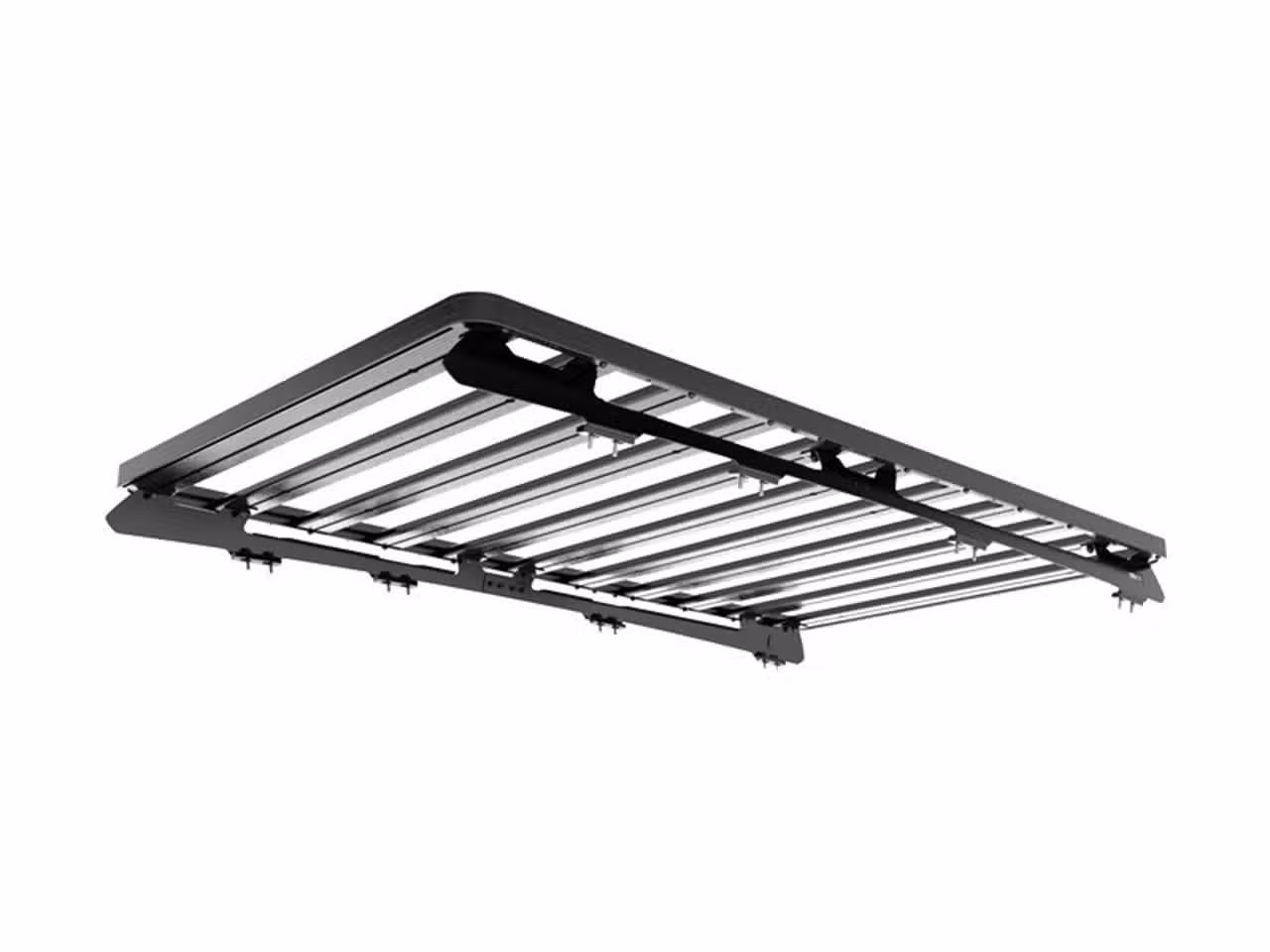

The Front Runner KRTL028T is a full-length Slimline II cargo roof rack kit for the Toyota Land Cruiser 200 and Lexus LX570. It bundles a 2166 mm tray, a wind deflector and a pair of vehicle-specific foot rails. The kit bolts to the existing factory mounting points.

The tray measures 2166 mm long by 1255 mm wide and stands 50 mm high. Slats and edge profiles carry 8 mm T-slots on both the top and bottom faces. Black epoxy powder coat covers the T6 aluminium, while high-strength steel and 3CR12 stainless steel form the mounting structure. The complete assembly weighs approximately 42.64 kg.

Fitment covers the 200 Series from 2007 to 2021. On the LX570 the flush roof rails must come off and the headliner needs lowering before the foot rails go on. Two people complete the install in a few hours with hand tools. Add the 50 mm tray height to the foot rail height to calculate clearance from the roof crown.

The foot rails carry two openings for under-rack storage. One opening takes the smaller Pro stainless steel prep table, and the other takes the larger Pro camp table. That arrangement keeps cooking surfaces out of the load area without raising the platform. Confirm table compatibility against the tray length before ordering accessories.

The flat slat deck accepts roof top tents, jerry can holders, recovery board cradles, awning brackets and tie-down rings through the same T-slots. A wind deflector sits at the front edge to reduce noise on highway runs. Load heavy items low and central, and keep the overall mass within the vehicle roof rating.

Torque the foot rail fasteners to the figure in the supplied instructions, then re-check them after the first long trip. Inspect the powder coat at the rail ends and around the mounting holes each season and touch up chips. Wash the aluminium with fresh water after coastal travel to remove salt residue.

Key Features

• 2166 mm Full-Length Tray
  The RRSTD11 platform covers the cabin roof and carries long cargo without overhang at the rear.

• 8 mm T-Slot Interface

  • T-slots run on the top and bottom of every slat
  • Edge profiles accept the same standard 8 mm bolts
  • Accessories mount without drilling the deck

• Vehicle-Specific Foot Rails
  The FATL001 foot rails locate on the factory roof points, so the body stays unmodified.

• Under-Rack Table Openings
  Two cut-outs accept the Pro prep table and the larger Pro camp table beneath the platform.

• Mixed-Material Build
  T6 aluminium slats sit on high-strength steel and 3CR12 stainless steel mounting sections.

• Wind Deflector Included
  The front deflector guides airflow over the load to limit cabin noise.

• Low 50 mm Profile
  The tray adds only 50 mm to the foot rail height, which keeps overall vehicle height in check.

Specifications

What’s in the Box

• RRSTD11 Slimline II tray, 2166 x 1255 mm

• FATL001 foot rails, pair

• Wind deflector

• Mounting hardware pack

• Installation instructions

Why Choose This Roof Rack Kit

• The full-length deck carries tents and long cargo without a rear overhang.

• Factory-point mounting leaves the vehicle body untouched for resale.

• T-slots on both faces let accessories bolt on without extra cross bars.

• Under-rack openings add table storage without raising the centre of gravity.

• The 50 mm tray height keeps the vehicle within most parking clearance limits.

• Powder-coated aluminium and stainless steel fasteners suit dust and coastal routes.
