Front Runner KRTH017 Load Bar Kit Hilux Revo DC 2016-Current 100kg

Roof Load Bar Kit for Double Cab Hilux

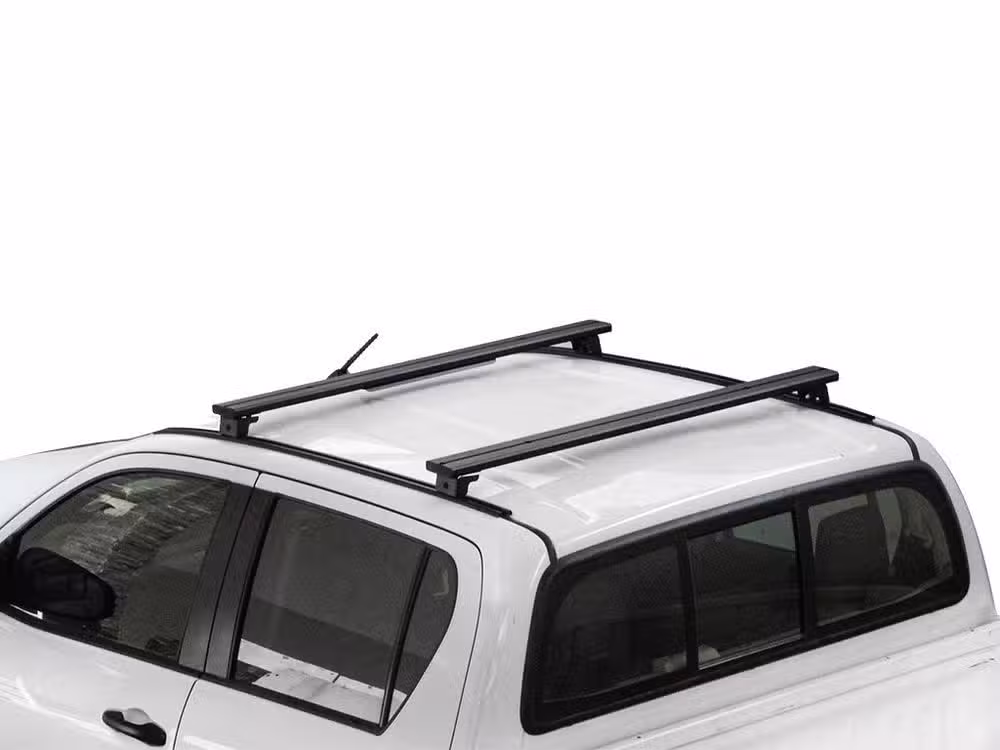

The Front Runner KRTH017 is a track-and-feet load bar kit for the Toyota Hilux Revo double cab from 2016 onward. It carries up to 100 kg spread evenly across two bars. The kit suits roof-top tents, cargo boxes and recovery boards where a full rack is overkill.

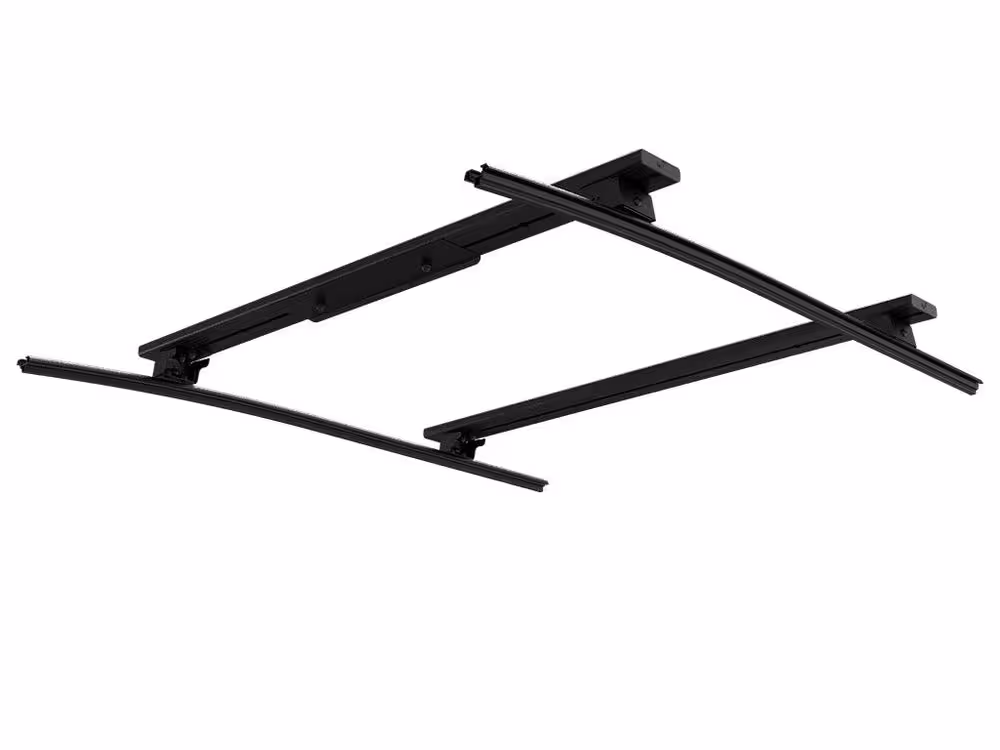

Two 1165 mm load bars use the same aluminium slat profile as Front Runner Slimline II racks. T-slots on the top and bottom faces accept standard 8 mm bolts. Two 1300 mm vehicle-specific tracks bolt to the roof gutters through four 40–50 mm foot sets. A 10 mm wind deflector trims noise at highway speed.

Materials are black epoxy powder-coated T6 aluminium for the bars and 3CR12 stainless steel for the brackets. Installed weight sits near 7 kg, and the assembly adds roughly 110 mm above the roof crown. The bars share components with Slimline II, so technicians can extend the kit into a full rack later.

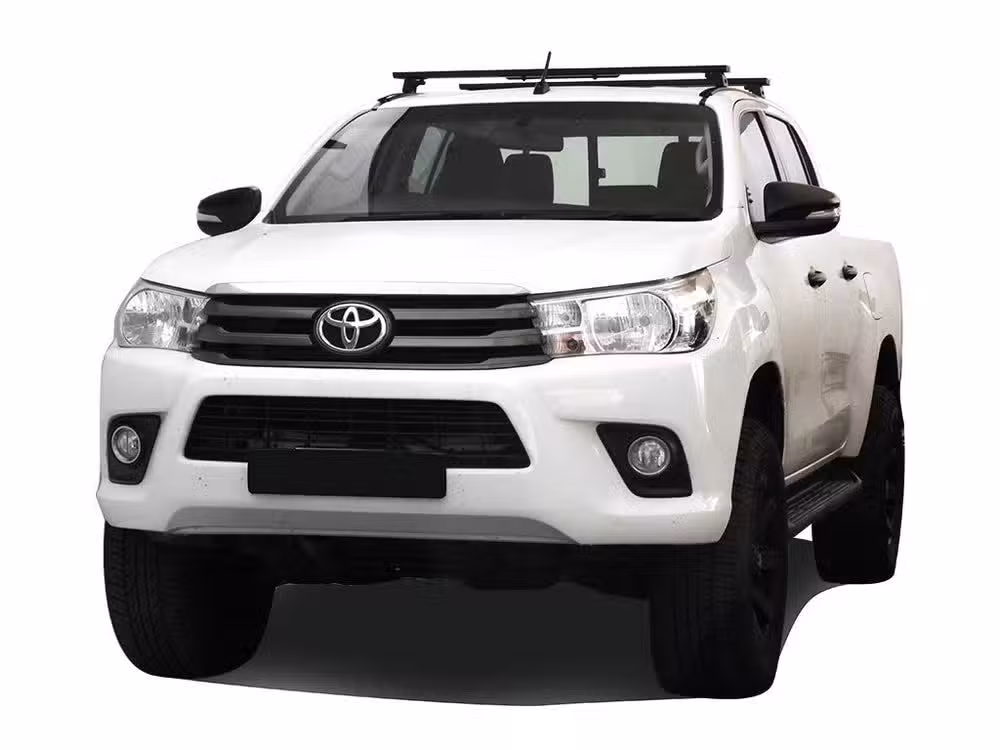

Fitment covers the Hilux Revo double cab from 2016 to current. Drill-free installation uses the supplied tracks and hardware. Torque the foot bolts to the values in the fitting guide and seal the track edges with the supplied gasket. Check bolt tension after the first 500 km, then at each service interval. The limited lifetime warranty covers manufacturing defects.

Key Features

• 100 kg distributed load rating
  Two load bars carry up to 100 kg spread evenly for tents, boxes and boards.

• Vehicle-specific track system

  • 1300 mm tracks match the Hilux Revo double cab roof line.
  • Four 40–50 mm foot sets locate the bars on the tracks.

• Slimline II slat profile
  The bars share the aluminium extrusion used across the Front Runner rack range.

• 8 mm t-slot mounting
  Top and bottom slots accept standard bolts for fast accessory changes.

• Black powder-coated T6 aluminium
  The coating resists corrosion and UV fade on exposed roof surfaces.

• 3CR12 stainless steel brackets
  The foot hardware holds torque under vibration and seasonal temperature swings.

• 10 mm wind deflector
  The deflector cuts turbulent airflow and reduces cabin noise at speed.

• Upgradeable platform
  Components can be reused to build a complete Slimline II rack.

Specifications

What’s in the Box

• 2 x FASS012 foot sets, 40–50 mm

• 1 x LBSK013 load bar pair, 1165 mm

• 1 x TRTH003 track set, 1300 mm

• 1 x WDLB001 wind deflector, 10 mm

• Fitting hardware and installation guide

Why Choose the KRTH017

• Track mounting leaves the roof free of a permanent rack frame.

• Low 110 mm profile keeps the vehicle under car-park height limits.

• The t-slot platform accepts accessories without drilling new holes.

• Stainless brackets and coated aluminium handle coastal humidity.

• Shared Slimline II parts support later expansion to a full rack.
