OEM USB RJ45 Extension Adapter 150ft Cat5/Cat6

OEM USB Extension Adapter

The OEM USB RJ45 Extension provides a hardware-based solution for extending USB peripheral connectivity beyond the standard 5-meter limit. This system utilizes a local transmitter and a remote receiver to bridge distances up to 150 feet (45 meters) using standard Category 5, 5e, or 6 network cabling. The architecture converts standard USB data signals into a format capable of traveling over twisted-pair copper wiring without significant packet loss or latency. It operates as a transparent extension, requiring no software installation or specialized drivers on the host machine. This adapter kit supports low-power USB devices by drawing current directly from the host computer port. Network engineers frequently deploy these units to locate input devices, surveillance cameras, or printers in remote areas where standard active repeaters are cost-prohibitive.

Key Features

• Signal Extension Range
  The hardware supports data transmission distances reaching 150 feet when using high-quality Cat6 UTP cabling.

• Interface Compatibility

  • USB 1.1 compliant supporting 12 Mbps transfer rates
  • Backward compatible with USB 1.0 protocols
  • RJ45 female ports on both transmitter and receiver units

• Power Management
  The receiver unit utilizes bus power from the host USB port to drive remote low-power peripherals.

• Cabling Requirements

  • Standard Cat5/Cat5e/Cat6 patch cords
  • TIA/EIA-568B wiring standard recommended for optimal signal integrity
  • Solid copper core cabling preferred over stranded alternatives for maximum distance

Specifications

What’s in the Box

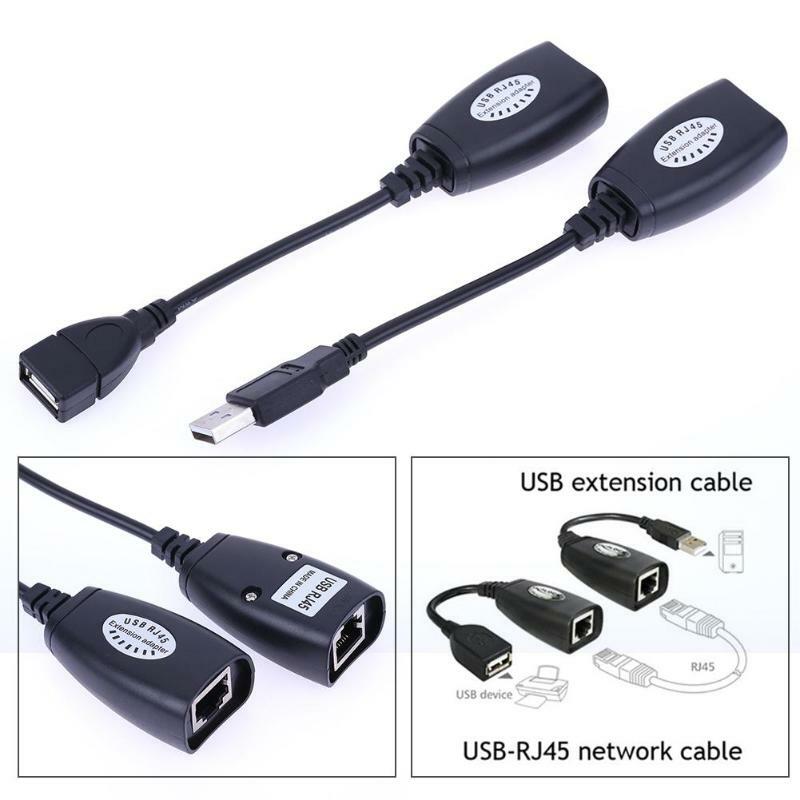

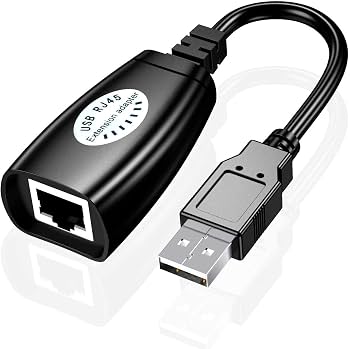

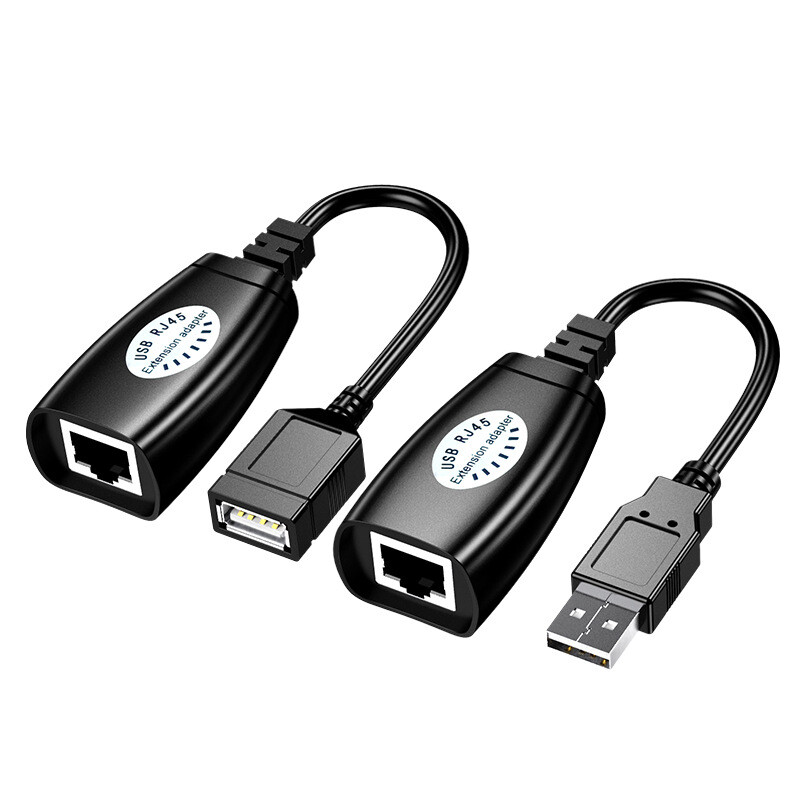

• USB Transmitter Unit (Base)

• USB Receiver Unit (Remote)

Why Choose OEM USB Extension

• Eliminate signal attenuation issues associated with long passive USB cables through balanced signal conversion.

• Reduce deployment costs by utilizing existing structured cabling infrastructure within the facility.

• Maintain a clean installation environment by avoiding bulky active repeater hubs and external power supplies.

• Ensure reliable communication for HID devices like keyboards and mice in server room environments.
