Front Runner KRRT002T Bakkie Roll Top Slimline II Load Bed Rack Kit – 1475 x 1358mm

Load Bed Rack for Pickups with Roll Top Covers

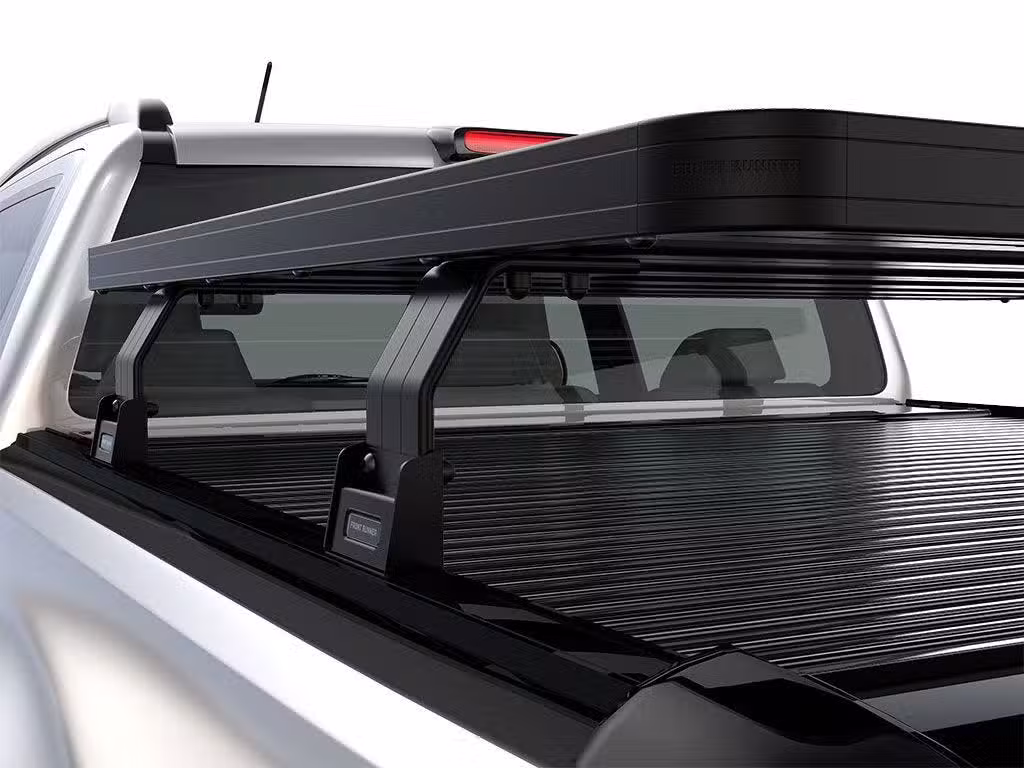

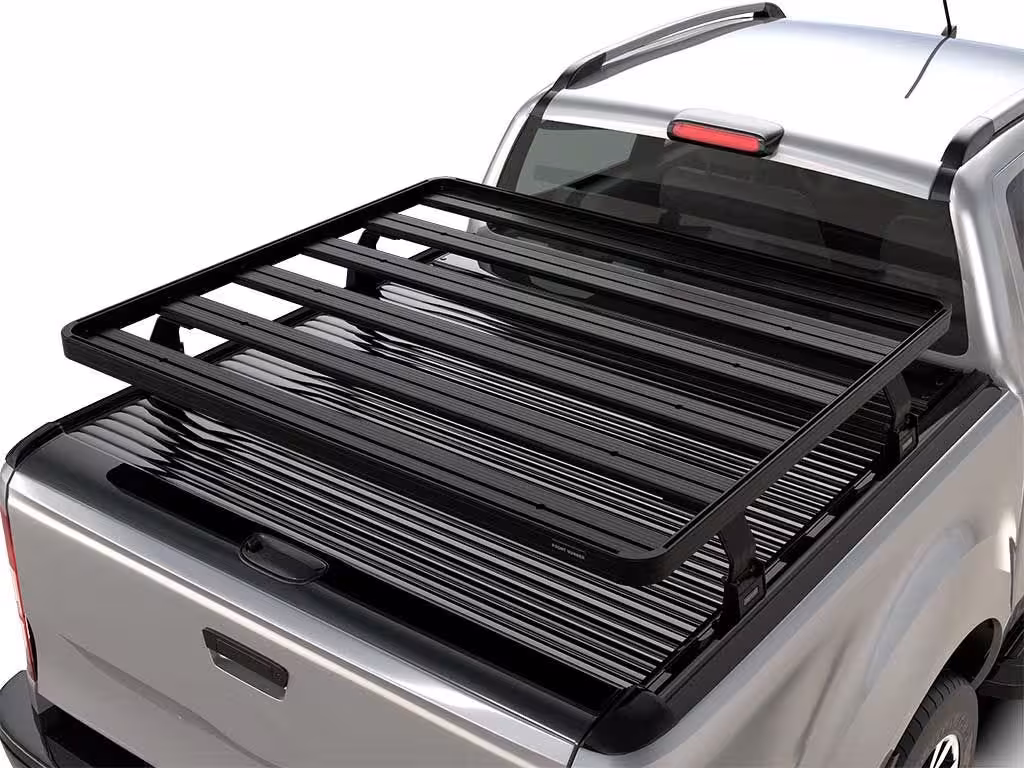

The Front Runner KRRT002T is a load bed rack kit that mounts a Slimline II cargo tray above a bakkie load bed fitted with a roll top cover. The tray measures 1475 mm wide by 1358 mm long and sits on four leg mounts that slot into the existing factory tracks in the cover extrusion. No drilling of the roll top is required.

The tray uses black epoxy powder-coated T6 aluminium with high-strength steel leg mounts. Installed weight is approximately 27.92 kg. The T-slots on the top and bottom of the tray slats and edge profiles accept standard 8 mm bolts, so eye bolts, tie-down rings and accessory brackets fit at any position along the deck. The Slimline II tray itself stands 50 mm tall.

The kit comprises two LASS028 pick-up roll top leg mounts and one RRSTM07 Slimline II tray. Mounting hardware and installation instructions ship in the box. Front Runner backs the rack with a limited lifetime warranty. One caveat applies to fitment: if the roll top extrusion has a 6 mm to 7 mm slot opening, a track mount stud plate is needed separately.

Shipping dimensions are 1730 mm long, 440 mm wide and 150 mm high, at a shipping weight of 28.9 kg. Confirm the roll top track width and slot size before ordering, and check that the tray does not foul the cab rear window or the cover’s travel path.

Key Features

• 1475 x 1358 mm Slimline II Tray
  The tray creates a full-size cargo deck above the load bed with a 50 mm profile.

• OEM Track Mounting
  Four leg mounts slot into the factory tracks in the roll top cover without drilling.

• Component Breakdown

  • 2 x LASS028 pick-up roll top leg mounts
  • 1 x RRSTM07 Slimline II tray, 1475 x 1358 mm
  • Mounting hardware and installation instructions included

• T6 Aluminium and Steel Construction
  Black epoxy powder-coated aluminium slats pair with high-strength steel leg mounts.

• 8 mm T-Slot Grid
  Top and bottom slots on every slat and edge profile accept standard 8 mm bolts.

• 27.92 kg Installed Weight
  The complete kit adds under 28 kg to the vehicle load bed.

• Slot Size Note
  Roll top extrusions with a 6 mm to 7 mm opening need a separate track mount stud plate.

• Limited Lifetime Warranty
  Front Runner covers the rack against manufacturing defects for the vehicle’s service life.

Specifications

What’s in the Box

• Two LASS028 pick-up roll top leg mounts

• One RRSTM07 Slimline II tray, 1475 x 1358 mm

• Mounting hardware

• Installation instructions

Why Choose the KRRT002T Kit

• The OEM-track mounting keeps the roll top cover intact and avoids drilling the extrusion.

• The 1475 x 1358 mm deck suits double-cab load beds without overhanging the tailgate.

• 8 mm T-slots on every slat let accessories move without new mounting holes.

• T6 aluminium and steel construction holds rigidity under roof tent and jerry can loads.

• The kit ships complete with leg mounts, tray, hardware and instructions.

• A limited lifetime warranty covers the rack for the length of vehicle ownership.
