Eezi-Awn K9-005 Roof Rack 1400 x 2000 mm Land Cruiser 76

Aluminium Platform Rack for Land Cruiser 76 Station Wagon

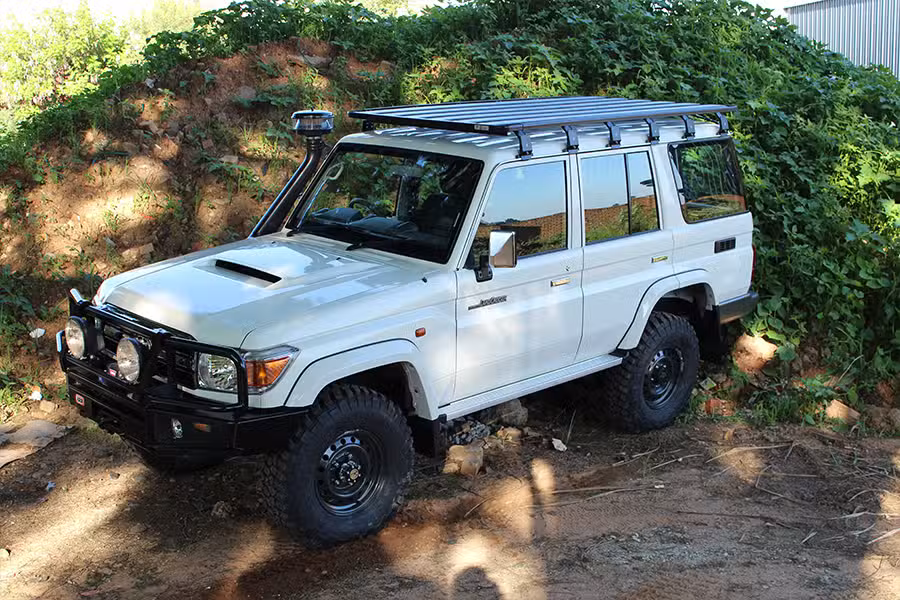

The Eezi-Awn K9-005 roof rack is a 1400 x 2000 mm fully welded aluminium platform built for the Toyota Land Cruiser 76 Series Station Wagon. It mounts to the factory rain gutters through multiple all-metal feet. The kit arrives assembled with hardware included.

The platform uses 35 mm deep extruded aluminium slats, each 130 mm wide and running front to rear. Twin 8 mm T-slots run the full length of every slat, and a continuous 6 mm track runs around the perimeter. These slots accept standard M8 and M6 bolts, so accessories fit without channel nuts.

Gutter mount feet adjust from 150 mm to 300 mm to suit the 76 Series roof line. The welded sub-structure distributes load along the full platform rather than concentrating it at four corners. An alloy wind deflector sits at the leading edge to reduce highway noise. The matte black powder coat resists UV exposure and road salt.

Key Features

• Fully Welded Alloy Frame
  The platform ships as one welded structure with no plastic corner inserts in the load path.

• Slat and Track Layout

  • 130 mm wide slats run front to rear across the 2000 mm length
  • Twin 8 mm T-slots take standard M8 bolts
  • 6 mm perimeter track accepts M6 hardware
  • Slots run the full length of every slat

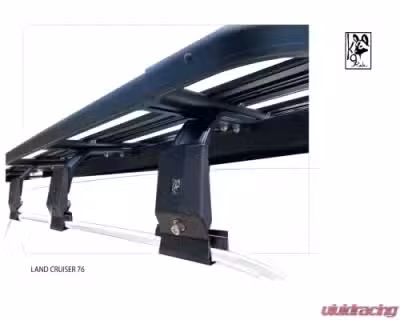

• Gutter Mount Feet
  All-metal feet clamp to the Land Cruiser 76 rain gutters across a 150 mm to 300 mm height range.

• Continuous Load Distribution
  Multiple mounting legs spread weight along the roof instead of concentrating it at four points.

• Low-Profile Deflector
  An alloy wind deflector at the leading edge limits noise at highway speed.

• Powder-Coated Finish
  Matte black coating protects the alloy against UV exposure and road spray.

• Load Ratings
  Dynamic load sits near 227 kg and static load near 454 kg, within the vehicle roof limit.

Specifications

What’s in the Box

• K9-005 1400 x 2000 mm platform

• Gutter mount feet and clamps

• Alloy wind deflector

• Installation hardware

Why Choose the K9-005 Platform

• Welded alloy construction removes rivets and plastic joints from the load path.

• The 35 mm platform keeps overall vehicle height low.

• Twin 8 mm slots accept standard bolts without channel nuts.

• Gutter clamps suit the 76 Series roof without drilling.

• The 1400 x 2000 mm deck carries long cargo and rooftop tents.

• All-metal legs spread weight across the roof for stable load carrying.
