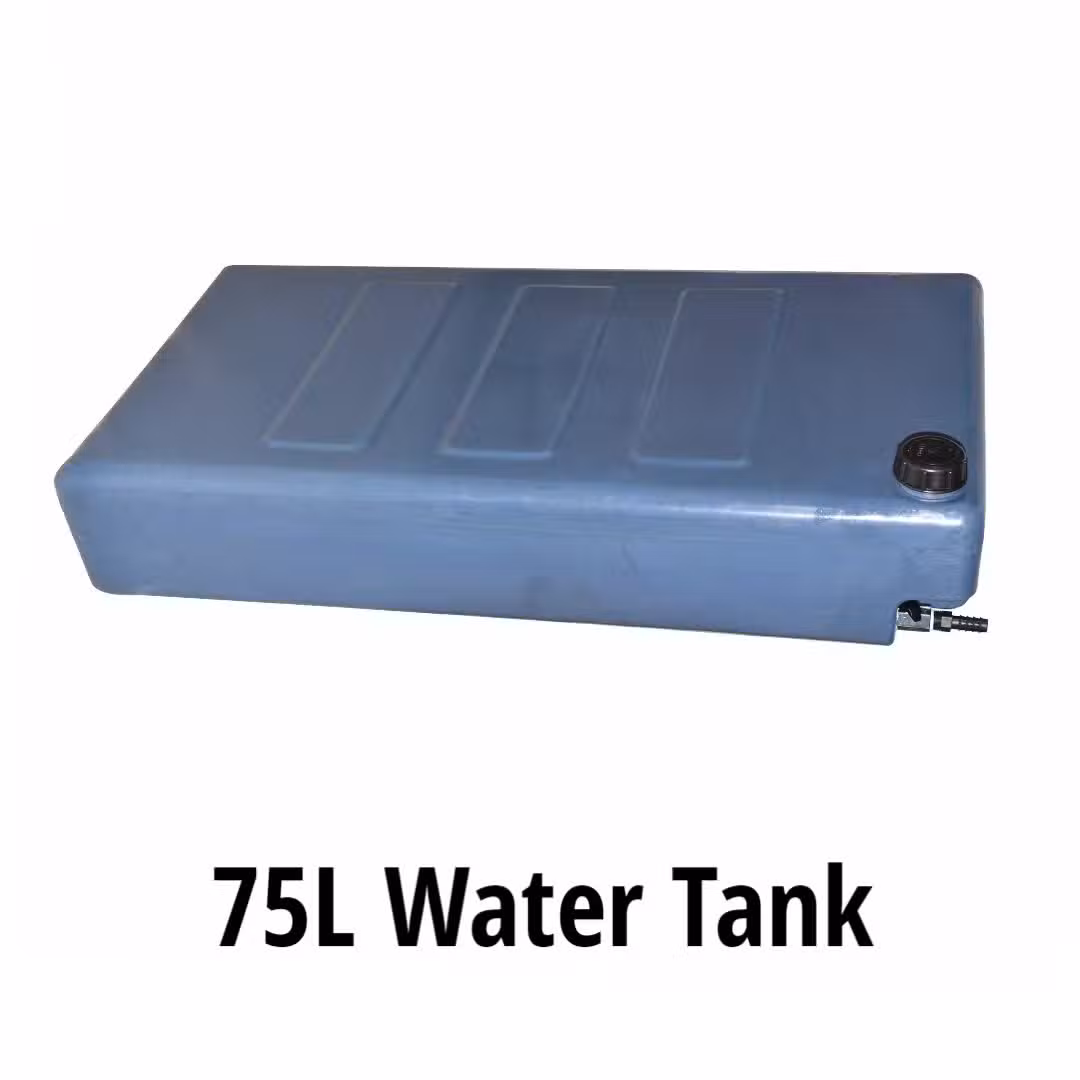

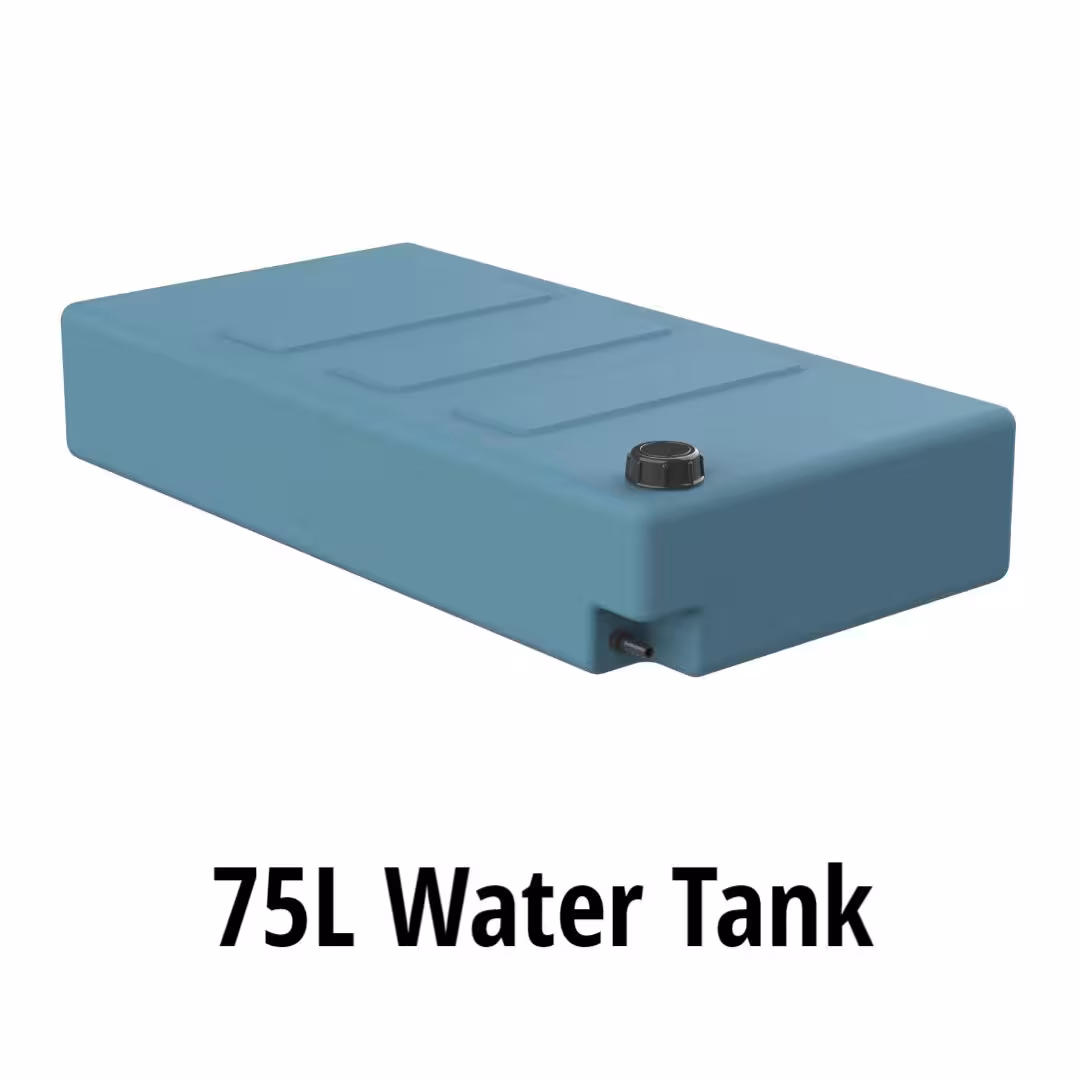

75L Water Tank 970 x 490 x 180 mm Blue Grey Vehicle Mounted

Low-Profile Water Storage for Vehicles and Trailers

The 75L water tank is a slim, rectangular reservoir for fresh or waste water on campervans, trailers, 4x4s and service vehicles. It measures 970 x 490 x 180 mm and holds 75 litres when full. The blue-grey moulding hides scuffs and limits light ingress.

The tank uses rotationally moulded medium-density polyethylene with UV stabilisers for outdoor duty. A 180 mm profile fits under a chassis rail or load bay floor where taller tanks will not clear. The moulded body carries internal baffles to reduce water surge during transport. Wall thickness sits around 4 to 6 mm across the body.

Fittings follow common caravan practice: an 8-inch vented screw lid for filling and a 3/4-inch BSP outlet for a tap or pump feed. The outlet boss accepts standard hose tails and push-fit connectors. Threaded inserts sit in the moulded boss, so fittings seal without extra adapters.

Mount the tank on a flat, load-bearing surface with straps or a cradle. Support the full footprint rather than the edges alone. Keep the outlet at the lowest corner so the tank drains completely. Flush the tank before first use and sanitise it at the start of each season.

Food-grade polyethylene suits potable water storage. The material resists mild chemicals and does not corrode. The blue-grey colour reduces algae growth compared with clear tanks. The tank weighs about 9 kg dry, so one technician can position it before filling.

Route the filler neck clear of body panels and add a breather to prevent vacuum lock on pump-fed systems. Insulate exposed runs in cold climates. Drain the tank before long storage periods and leave the lid open to dry the interior.

Key Features

• Slim 180 mm Profile
  The low height fits under load bay floors and chassis rails.

• 75 Litre Capacity
  The 970 x 490 x 180 mm body holds 75 litres of fresh or waste water.

• Rotationally Moulded MDPE
  Medium-density polyethylene with UV stabilisers resists outdoor exposure.

• Standard Caravan Fittings

  • 8-inch vented screw lid for filling
  • 3/4-inch BSP outlet with threaded insert
  • Baffled body to reduce water surge

• Food-Grade Construction
  The polyethylene suits potable water storage when flushed and sanitised.

• Blue-Grey Moulding
  The tint limits light ingress and hides surface scuffs.

Specifications

What’s in the Box

• One 75 L water tank

• One 8-inch vented screw lid

Why Choose This Low-Profile Tank

• The 180 mm height clears chassis rails and shallow load bays.

• The moulded baffles reduce surge and keep vehicle handling stable.

• Standard BSP outlet threads accept common caravan taps and pump fittings.

• Food-grade MDPE supports potable water use after sanitising.

• The blue-grey tint slows algae growth compared with translucent tanks.
