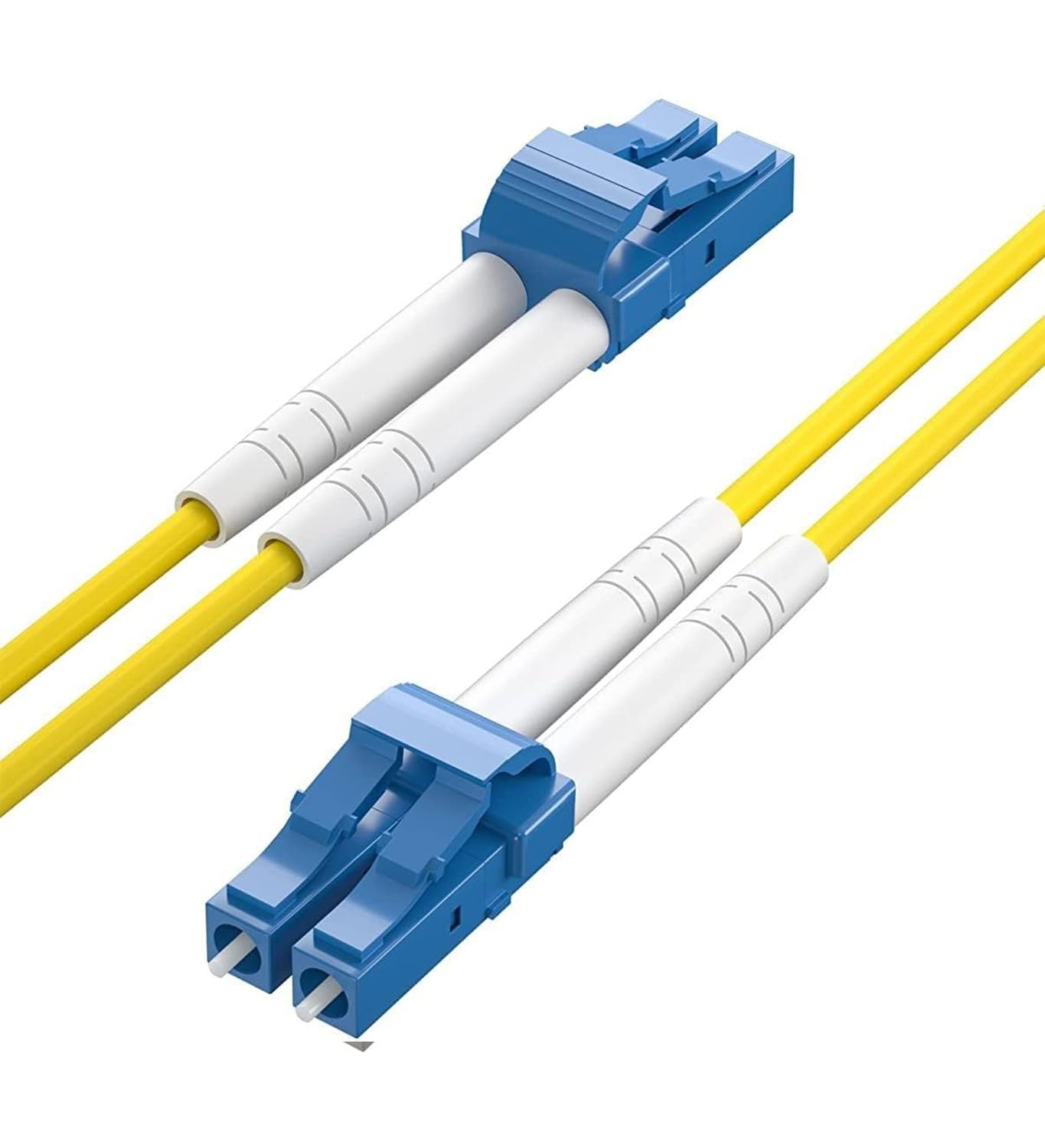

OEM LC-LC UPC 5m OS2 Single-mode Duplex Fiber Patch Cord
WhatsApp for availability
OEM LC-LC UPC 5m OS2 Single-mode Duplex Fiber Patch Cord
| Feature | Detail |
|---|---|
| Fiber Mode | OS2 Single-mode 9/125µm |
| Connector | LC to LC Duplex |
| Length | 5 Meters |
| Polish | UPC |
| Jacket | LSZH (Yellow) |
Shipping & Delivery
Fast delivery
Your order will be deliver to the specified address
15 - 45 minutes
From KES 300
Warranty 1 year
Free 30-Day returns
Description
OEM LC-LC OS2 Patch Cord
The OEM LC-LC OS2 5m single-mode optical fiber facilitates high-density data transmission over extended distances. This 9/125 micron duplex cable supports high-speed networking protocols including 10G, 40G, and 100G Ethernet. The Ultra Physical Contact polish on the connectors minimizes back-reflections to maintain signal integrity. This assembly utilizes high-quality glass to ensure low attenuation across the 1310nm and 1550nm wavelengths. Engineering teams utilize these cables for reliable rack-to-rack interconnects in modern data centers. The yellow LSZH jacket provides fire safety compliance for indoor installations.
Key Features
Optical Performance Standards
- Insertion loss remains below 0.3dB per connector to prevent signal degradation.
- Return loss exceeds 50dB due to precise UPC ceramic ferrule polishing.
- The cable supports long-reach applications up to 10km at 10Gbps speeds.
Advanced Fiber Core Technology
- OS2 G.652.D compliant glass eliminates the 1383nm water peak attenuation.
- The 9/125µm core-to-cladding ratio ensures tight light confinement for long-range transport.
Small Form Factor Connectivity
The 1.25mm zirconia ceramic ferrules allow for high port density in congested patch panels.Safety and Durability
Low Smoke Zero Halogen jacketing reduces the release of toxic and corrosive gases during combustion.
Specifications
| Feature | Specification |
|---|---|
| Fiber Type | Single-mode OS2 (G.652.D) |
| Connector Type | LC Duplex to LC Duplex |
| Polish Type | UPC to UPC |
| Cable Length | 5 Meters |
| Jacket Material | LSZH (Low Smoke Zero Halogen) |
| Core/Cladding | 9/125µm |
| Insertion Loss | ≤ 0.3dB |
| Return Loss | ≥ 50dB |
| Operating Wavelength | 1310nm / 1550nm |
What’s in the Box
1 x 5m LC-LC UPC OS2 Single-mode Duplex Fiber Patch Cord
Individual Test Report Data
Why Choose OEM LC-LC OS2 Patch Cord
The OS2 9/125 micron glass supports massive bandwidth across enterprise backbones and metropolitan area networks.
Precision-engineered LC connectors feature a push-pull locking mechanism to prevent accidental disconnection in high-vibration environments.
Each 5-meter optical jumper undergoes rigorous factory testing to ensure compliance with international telecommunication standards.
Additionally, the duplex configuration includes a removable clip for easy polarity management during complex network deployments.
The LSZH construction protects personnel and sensitive electronics by minimizing acidic smoke during fire incidents.
