Vention SATA 15-Pin Power Splitter 90-Degree 0.15m Black

SATA 15-Pin Y-Splitter

The Vention SATA Power Splitter extends one male SATA 15-pin PSU connector into two female 15-pin outputs on a 0.15 meter black cable with 90-degree plugs. System builders and bench technicians use this adapter when a power supply exposes a single SATA power lead but the chassis needs two drives, such as an SSD plus a hard disk or an optical drive pair. The 15-pin SATA power pinout carries +3.3 V, +5 V, and +12 V rails defined in the ATX specification, so both downstream ports draw from the same source segment. Keep total current on the upstream lead within the rating printed on your PSU cable or modular harness documentation. The 90-degree connector orientation reduces bend radius at drive backplanes and helps cables lay flat along case floors or behind motherboard trays. A 0.15 m length suits adjacent bays inside tower or mini-tower enclosures where excess slack would block airflow. Black insulation matches standard OEM harness colors and blends with bundled PSU wiring. Female sockets accept standard SATA power plugs on 2.5-inch SSDs, 3.5-inch HDDs, and many controller cards that use the same keyed housing. The male end locks into an existing PSU SATA leg without modifying the supply itself. Inspect pin alignment before insertion because forced mating can deform plastic guides. This splitter does not convert Molex or PCIe power formats; both ends remain native 15-pin SATA power. Use one splitter per upstream leg rather than daisy-chaining multiple units on a single thin gauge lead. Cable routing should avoid contact with CPU coolers or exhaust fans that could wear insulation over months of vibration. Label harnesses in rack builds so technicians trace which splitter feeds which drive pair during service windows. The short run minimizes voltage drop compared with very long extension paths, though always verify stability under combined spin-up loads. Store spare units in anti-static bags with other small PSU accessories for rapid swap during warranty repairs. Match SKU KDBBB when stocking this 90-degree 0.15 m black SATA 15-pin Y-split configuration for integration teams and white-box assemblers.

Key Features

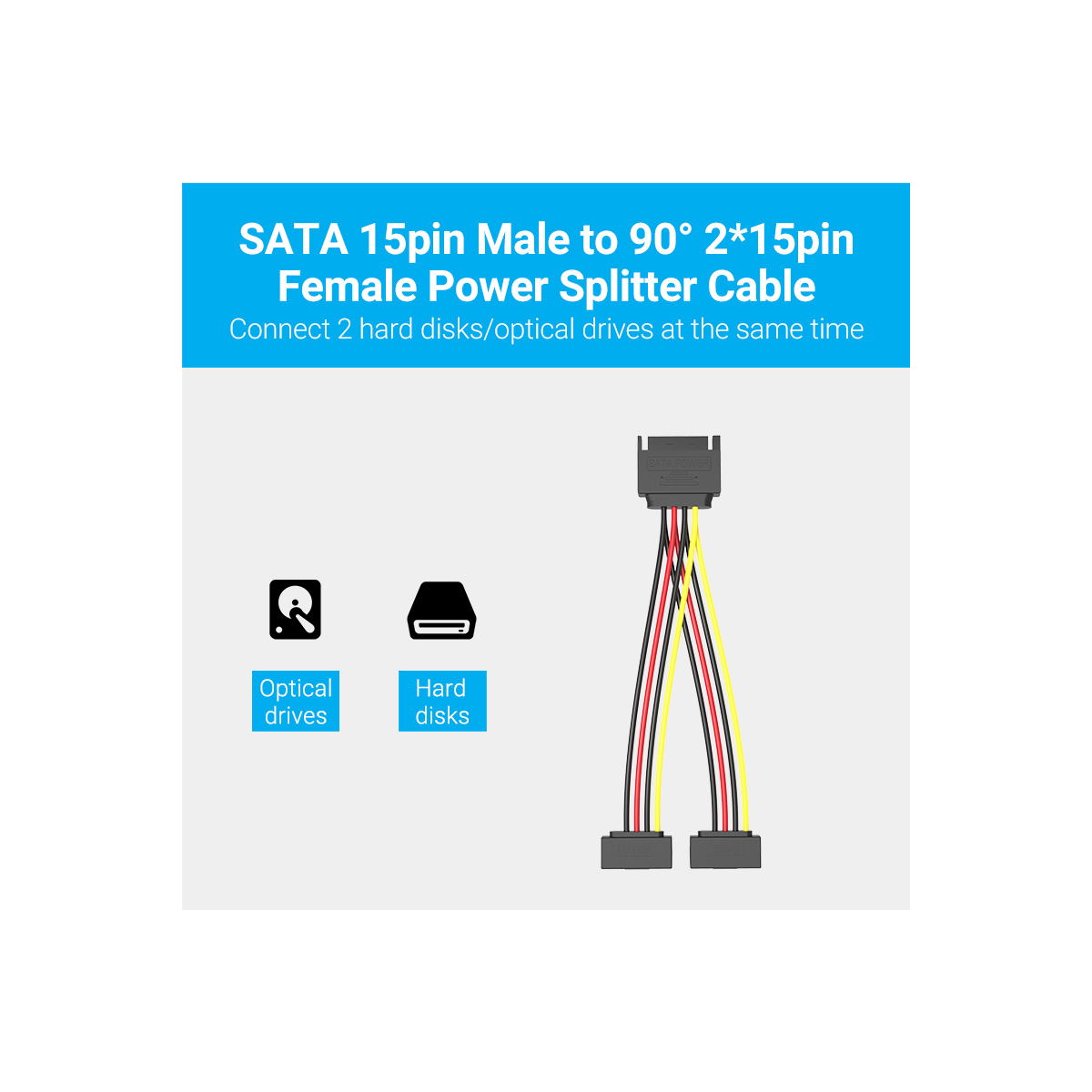

• 1-to-2 SATA Power Split
  One male 15-pin input feeds two female 15-pin SATA power outputs.

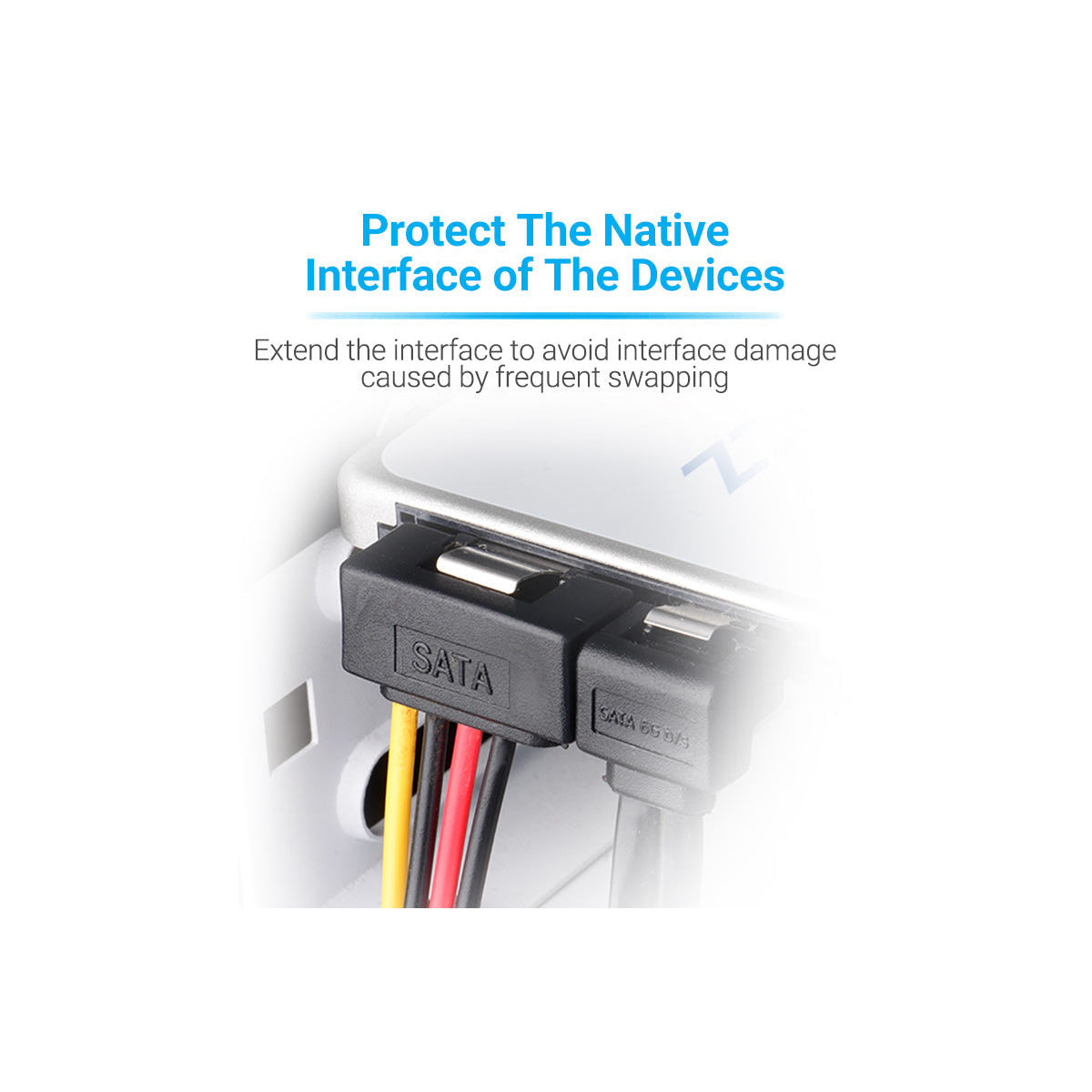

• 90-Degree Connector Geometry

  • Right-angle plugs reduce clearance issues at drive connectors
  • Helps cables run parallel to drive trays and case panels

• 0.15 Meter Cable Length
  Short harness fits adjacent storage bays without excess slack blocking fans.

• Black Cable Finish
  Black sleeving matches common PSU harness colors inside dark chassis.

Specifications

What’s in the Box

• One SATA 15-pin male to dual 15-pin female power splitter cable

Why Choose This Splitter

• Adds a second SATA power port without replacing the entire PSU harness.

• 90-degree ends improve fit behind stacked drives in tight tower cases.

• 0.15 m length keeps cable runs short and away from spinning fans.
